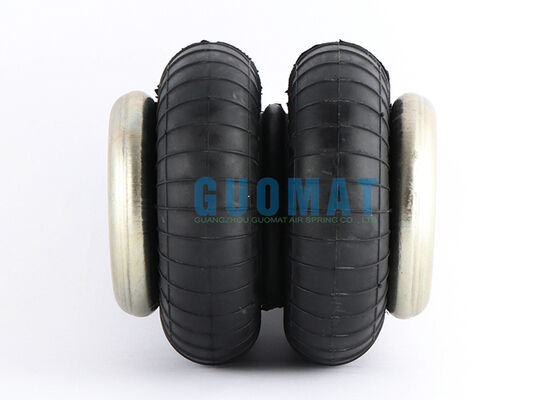

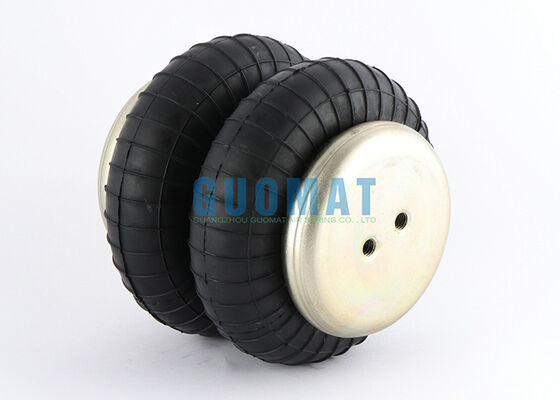

FD 40-10 Contitech Rubber Air Bags 2B4060 Double Convoluted Industrial Air Bellows

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B4060

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD59.9-69.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Type:	Suspension Air Spring	N.W.:	3.50 Kg
Pressure Ability:	0.2-0.8 M PA	Warranty:	One Year
Name:	Air Suspension Kits Air Spring	Contitech:	FD40-10
Highlight:	Contitech rubber air spring , Double convoluted air bellow , Industrial air spring with warranty

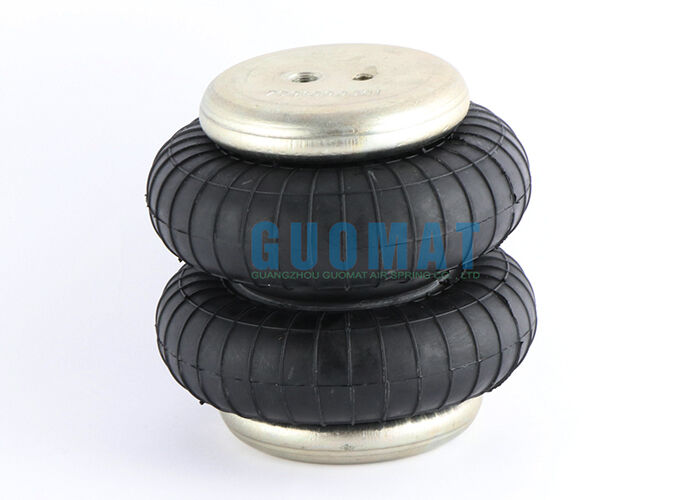

FD 40-10 Contitech Rubber Air Bags 2B4060 Double Convoluted Industrial Air Bellows

Product Overview

The GUOMAT 2B4060 Double Convoluted Industrial Air Bellows is a high-quality rubber air spring engineered for vibration isolation, load support, and height control in industrial equipment applications.

Designed to fully replace ContiTech FD 40-10, this air bag provides equivalent dimensions, mounting configuration, and performance characteristics while offering a cost-effective aftermarket solution.

Manufactured with durable rubber bellows and reinforced metal end plates, the GUOMAT 2B4060 ensures stable operation and extended service life in demanding industrial environments.

Technical Specifications

Specification	Value
GUOMAT Model	2B4060
Replacement Model	ContiTech FD 40-10
Design Height	145 mm
Top & Bottom Plate Diameter	90 mm
Air Inlet	G1/8
Threaded Hole Specification	M8 × 1.25
Center Distance (Top Plate: Thread Hole to Air Port)	20 mm
Center Distance (Bottom Plate: Thread Hole to Thread Hole)	20 mm
Natural Outside Diameter	125 mm
Structure	Double Convoluted

Shipping & Delivery

GUOMAT provides professional export shipping solutions to support global customers:

Packaging: Export-standard cartons or wooden cases to protect products during transportation
Shipping Methods: Available by express (DHL / FedEx / UPS), air freight, or sea freight according to order quantity and delivery requirements
Lead Time: Stock or short production lead time available for regular models. Bulk orders supported with stable production schedules
Export Experience: Professional documentation and packing ensure smooth customs clearance and safe delivery
