FS310-12 Contitech Rubber Air Bellows 68220 Industrial Air Spring bags Supplier

Product Details:

Place of Origin:	Germany
Brand Name:	Contitech
Certification:	ISO/TS16949:2009
Model Number:	FS310-12

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	$229.9-259.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Model Name:	Contitech Air Spring	Warranty:	12 Months
Material:	Rubber	Function:	Reduce Shock
Package:	Cartons	Part Number:	FS 310-12
Convolutions:	Single Convoluted	Type:	Standard Quality
Highlight:	Contitech rubber air spring bellow , industrial air spring bags , FS310-12 air spring supplier

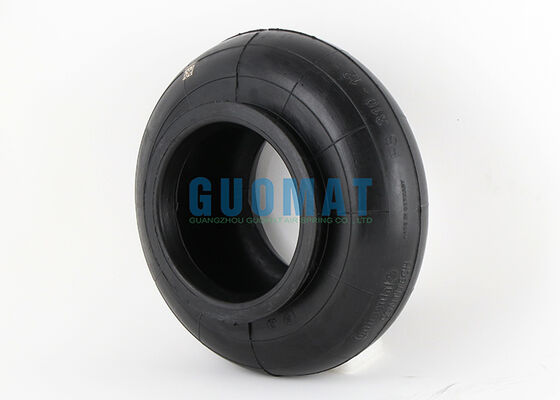

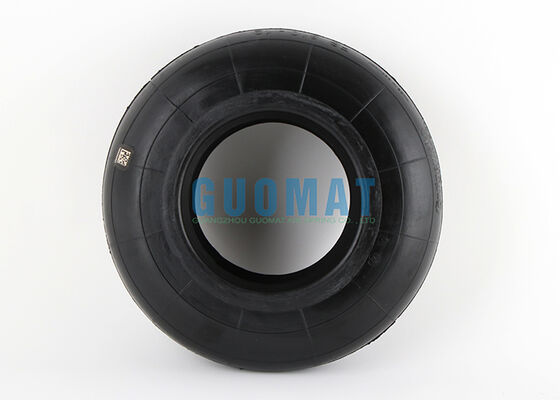

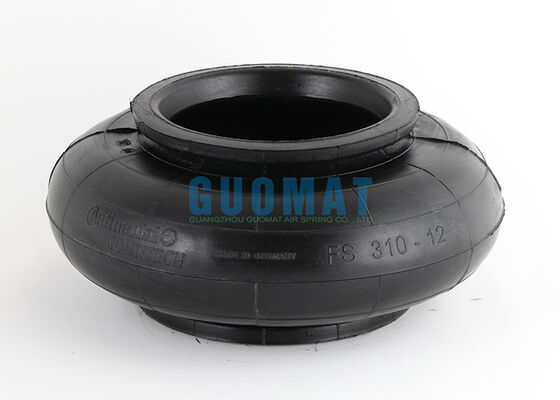

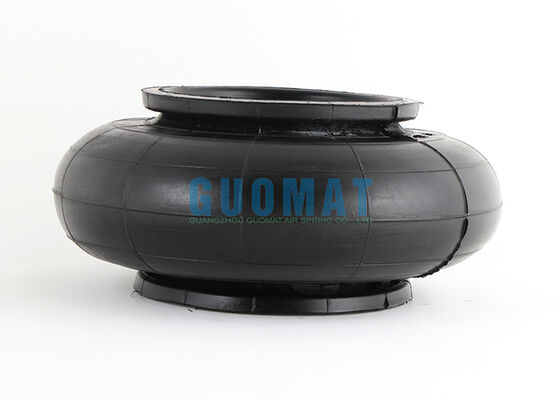

FS310-12 Contitech Rubber Air Bellows 68220 Industrial Air Spring bags Supplier

Product Overview

The FS310-12 ContiTech Rubber Air Bellows is an industrial-grade air spring designed for vibration isolation, load support, and motion control in a wide range of industrial equipment.

This model is widely used in applications requiring stable performance, flexible height adjustment, and effective shock absorption.

Brand: Contitech

Order Number: 68220

Model Number: FS310-12 / FS 310-12

Type: Rubber Bellows Only

OE Manufacturer Numbers

Model	Quality	Replacement For
FS 310-12	Standard Quality	Phoenix 1B20
FS 310-12 ECO	High Temperature Quality (ECO)	Phoenix 1B20-4

Technical Specifications

Parameter	Description	Value
A	Minimum height	55mm
B	Maximum stroke	120mm
C1	Maximum diameter	320mm
C2	Installation space needed	335mm
C3	Bead diameter	172mm
E1	Inner sealing and mounting surface	131mm
H	Height of bead	11mm
-	Maximum loading capacity (7 bar/115mm)	26.8kN
-	Maximum lifting pressure	8 bar

Applications

Industrial air bellows like the FS310-12 are commonly installed in equipment where mechanical vibration, uneven loads, or repetitive motion may affect performance or service life.
