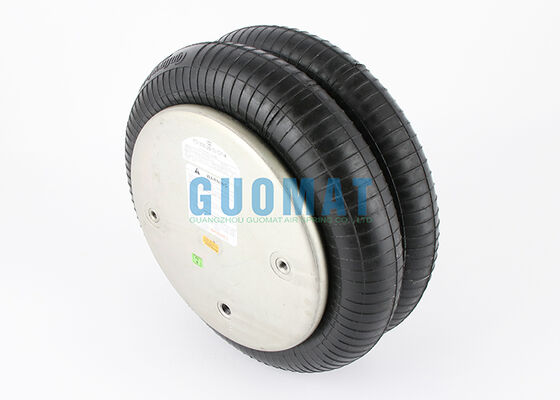

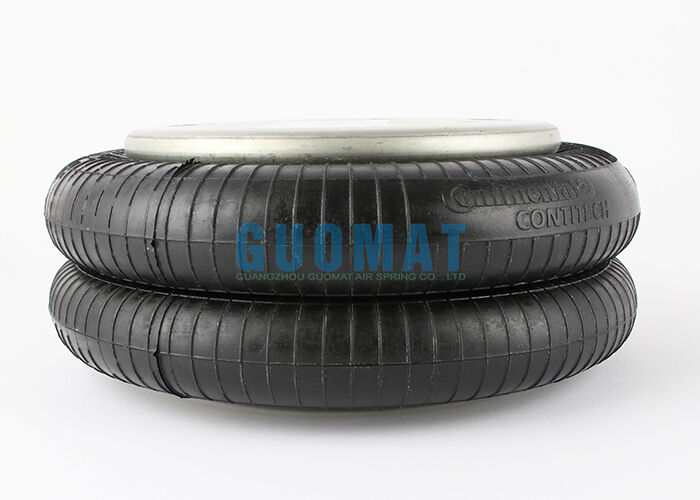

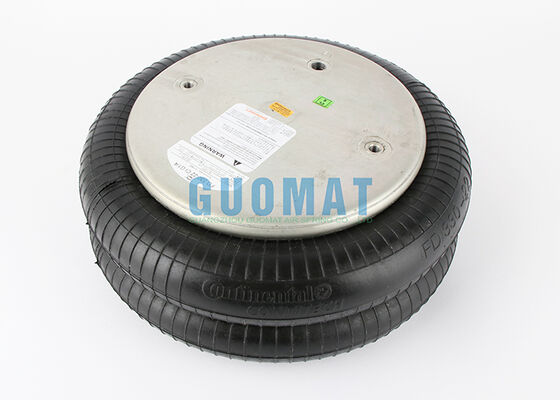

Original Contitech FD 330-22 Rubber Air Spring G1/4 Double Convoluted Air Bellows

Product Details:

Place of Origin:	Germany
Brand Name:	CONTITECH
Certification:	ISO/TS16949:2009
Model Number:	FD330-22

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	$169.9-189.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Spring Material:	Rubber+Steel	Product Warranty:	12 Months
Quality:	100% Tested	Type:	Double Bellows Convoluted Air Spring
Brand:	Contitech	Model Number:	FD330-22
Air Fitting:	G1/4	Color:	Black
Highlight:	Contitech FD 330-22 air spring , double convoluted rubber air bellows , G1/4 industrial air spring

Original Contitech FD 330-22 Rubber Air Spring G1/4 Double Convoluted Air Bellows

A ContiTech air spring is an air suspension component produced by ContiTech (Continental Group), designed to absorb vibration, reduce shock, and maintain stable ride height in truck and industrial applications.

Product Identification

Airspring Supplier: Contitech
Competitor/Supplier Numbers: FD330-22, FD 330-22, FD330-22 CI, FD 330-22 CI

Cross Reference

Manufacturer	Part Numbers
Firestone	W01-358-7180
Goodyear	2B12-425, 2B12-311, 578-92-3-309, 578923309
Triangle	6316, 4363
Airkraft	115061, 3B-356
Other Manufacturers	Vibracoustic VSP2B22R7180, El Ride 8030190, Leland Sc2075, Navistar 1685179C1, Hendrickson 1VA1816, Ridewell 1003587180C, SAF Holland 57007180, Watson&Chalinl AS01541G/01881F, Peerless 0550 00001

Technical Specifications

Maximum Height: 305mm

Minimum Height: 75mm

Cover Plate Diameter: 228mm

Threaded Hole: M8X15mm

Center Distance Between Threaded Holes: 157.5mm

Maximum Outer Diameter: 325mm

Air Inlet: G1/4

Pressure & Volume Data

Height (mm)	3 bar	4 bar	5 bar	6 bar	7 bar	8 bar	Vol. V(l)
265	7.97	10.8	13.5	16.9	19.7	22.7	13
220	11.3	15.2	18.9	23.1	26.9	30.8	11
180	13.6	18.2	22.7	27.5	32	36.5	8.8
140	15.4	20.5	25.5	31.1	36.3	41.3	6.8
100	16.8	22.1	27.8	34.1	39.8	45	4.8

Firestone to Contitech Cross Reference

Firestone Part Number	Contitech Part Number
W01-358-7180	FD 330-22 363
W01-358-7181	FD 330-22 472
W01-358-7183	FD 330-22 471
W01-358-7344	FD 330-22 500
W01-358-7400	FD 330-22 313
W01-358-7401	FD 330-22 337
W01-358-7403	FD 330-22 318
W01-358-7404	FD 330-22 346
W01-358-7405	FD 330-22 364
W01-358-7406	FD 330-22 365
W01-358-7408	FD 330-22 366
W01-358-7409	FD 330-22 367
W01-358-7410	FD 330-22 331
W01-358-7423	FD 330-22 368
W01-358-7424	FD 330-22 327
W01-358-7429	FD 330-22 343
W01-358-7437	FD 330-22 334
