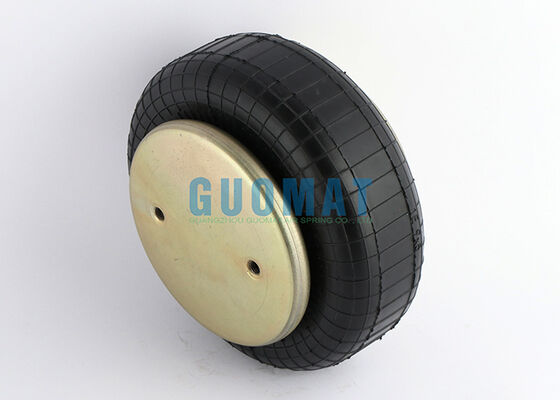

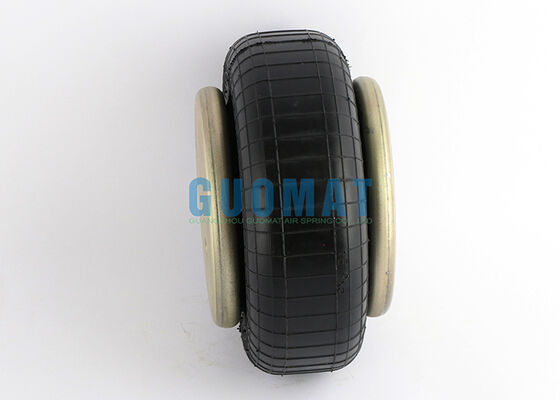

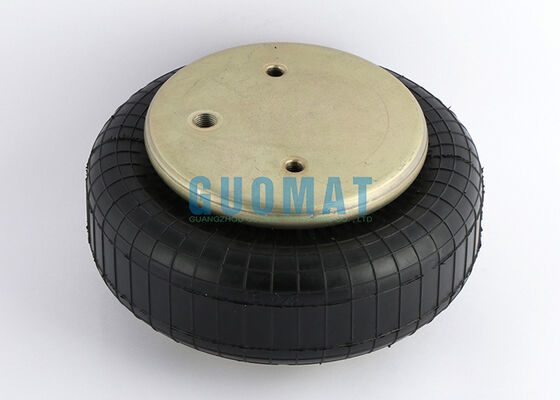

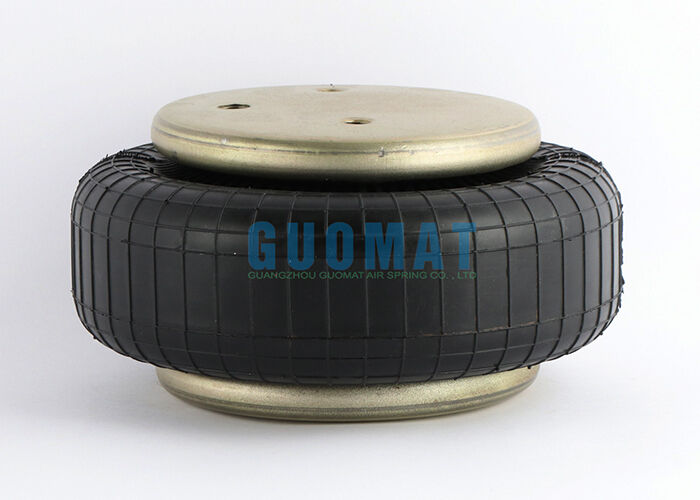

Goodyear Single Convoluted Type Air Suspension 1B9-202 Rubber Air Bellows For Industrial Machine

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B9202

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	$49.9-59.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Product Name:	Industrial Air Spring	Warranty:	1 Year
Material:	Rubber + Steel	Packing:	Brown Carton
Goodyear:	1B9-202	Working Stroke:	100mm
Application:	Industrial Machine	Quality:	100% Tested
Highlight:	Goodyear industrial air spring , Single convoluted air bellow , Rubber air suspension 1B9-202

Goodyear Single Convoluted Type Air Suspension 1B9-202 Rubber Air Bellows For Industrial Machine

Product Details

Type: Single Convoluted Industrial Air Spring
Model Number: 1B9X5
Cross Number: Goodyear 1B9-202
Condition: Brand New
Material: Rubber + Steel
Warranty: 12 Months
Delivery Time: About 2 - 8 working days after receiving your payment

Compatible Part Numbers

Goodyear Number: 1B9-202
Goodyear Number: 1B 9-202
Goodyear Number: 1B9 202
Goodyear Bellows Number: 578 91 3 201
Goodyear Bellows Number: 578-91-3-201
Goodyear Bellows Number: 578913201
Enidine Number: YI1B9-202
Enidine Number: YI 1B9-202

Technical Parameters

Cover Plate	Top Cover Plate Diameter: 160mm
Bottom Cover Plate Diameter	160mm
Air Inlet	1/4NPTF
Blind Nut	Screw Center Distance Of Top Cover Plate: 89mm
Screw Center Distance Of Bottom Cover Plate	89mm
Top Cover Plate Screw (Nut) Tooth	2X3/8-16UNC
Bottom Cover Plate Screw (Nut) Tooth	2X3/8-16UNC
Rubber Bellow MAX Diameter	240mm
The Working Stroke	100mm
Natural Height	128mm

Deflection (Height min): 60mm
Deflection (Height max): 160mm
Working stroke: 100mm
Measurement d max: 240mm

Shipping & Packaging

To ensure the air spring arrives in perfect condition, GUOMAT 1B9202 is carefully packed and handled according to industrial shipping standards.

Packaging Details

Each air spring is individually packed to prevent deformation during transit
Protective inner wrapping reduces friction and protects the rubber bellows surface
Strong export-grade cartons are used for outer packaging
Palletized packaging is available for bulk orders to enhance stability and loading efficiency

This packaging method helps maintain the shape, sealing performance, and mounting accuracy of the air spring before installation.

Shipping Options

Available shipping methods: Sea freight, air freight, and express delivery
Suitable for LCL and FCL shipments
Flexible logistics solutions based on order quantity and destination

Our team selects the most appropriate shipping method to balance cost, safety, and delivery time.

Inspection Before Shipment

Each product is inspected before packing
Model number, appearance, and basic performance checks are completed prior to dispatch

Global Export Experience

GUOMAT has experience shipping industrial air springs to multiple international markets. Standard export packaging ensures the product meets common transportation and warehousing requirements.
