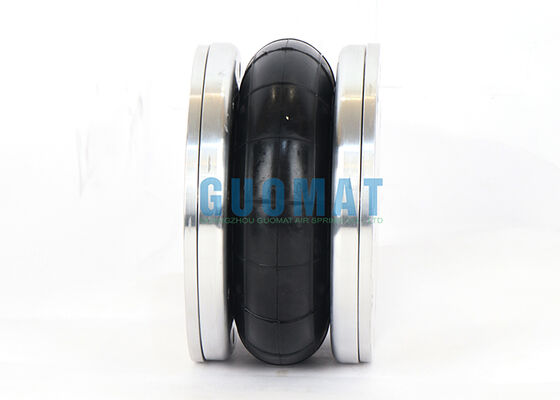

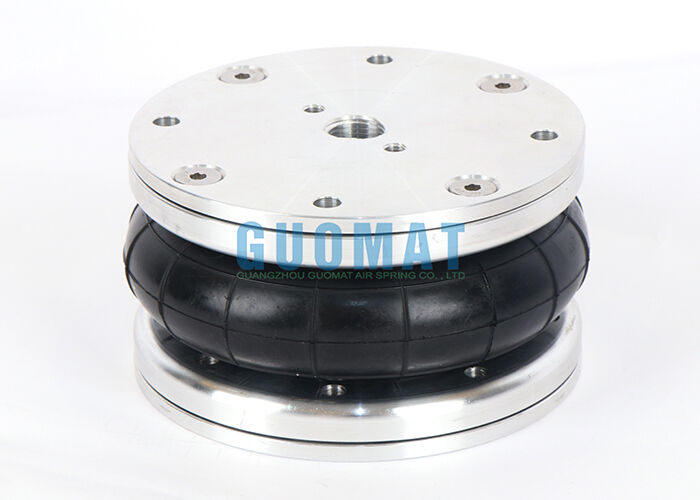

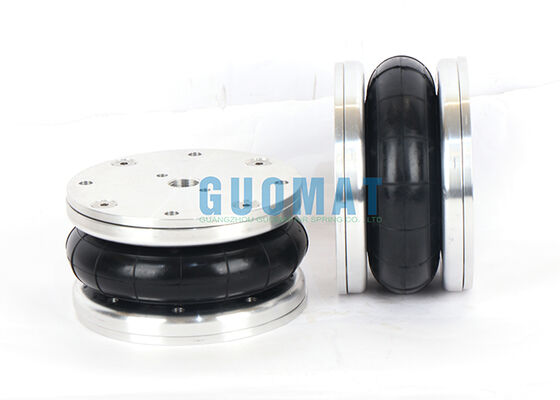

W01R584078 Firestone Cover Plate Air Spring 6''X1 FS 76-7 DI Contitech Rubber Air Bellows

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B6X1P

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD99.9-129.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Item Name:	Industrial Air Spring	Spring Material:	Rubber
Function:	Reduce Vibration	Transport Package:	Cartons
Warranty:	1 Year	Type:	Gas-Filled
Firestone:	W01-R58-4078	Rubber Bellows:	6''x1
Highlight:	Firestone air spring cover plate , Contitech rubber air bellows , 6x1 industrial air spring

W01R584078 Firestone Cover Plate Air Spring 6''X1 FS 76-7 DI Contitech Rubber Air Bellows

W01R584078 Firestone Cover Plate Air Spring 6''X1 FS 76-7 DI Contitech Rubber Air Bellows

Product Details

Type	Convoluted Air Spring	Brand	GUOMAT
Item No.	1B6x1P	Warranty	12 Months
Rubber Type	Natural Rubber+Aluminum	Other Name	Rubber Air Bags

Technical Data

Maximum Diameter	162mm
Space Required	180mm
Minimum Height	50mm
Maximum Height	110mm
Total Stroke	60mm
Static Height	80mm
Effective Area at Static Height	135cm²
Bellows Weight	1.69kg

Cross-Reference Part Numbers

Continental ContiTech: FS 76-7 DICR/FS76-7DICR/FS767DICR
Continental ContiTech: FS 76-07 DIG1/2 CR/FS76-07D1 G1/2 CR
Continental ContiTech Bellow: FS 76-7/FS76-7/FS767
Firestone No.: WO1-R58-4078/WO1R58 4078/W01R584078
Firestone Style: 6"x1/6"x1/6x1
Goodyear: 1B6-2052/1B6 2052/1B62052
Goodyear FlexNo.: 578-91-3-2050/578 9132050/5789132050
Dunlop FR: SP1645 (COMPOSITE)
Dunlop FR: SP2913 (ALUMINIUM)
Dunlop UK (Pneuride): A 3 1330 01 01/A313300101
Norgren: PM/31061/PM 31061/PM31061
Nominal 0 (inch) x convolutions: 6" x1/6"x1/6x1
YS-AIR: YS-160-1VS/YS 160 1VS/YS 160 1VS

Firestone Rubber Air Spring Reference

Bellows Number	Part Number	Weight	OEM Number
2 3/4X3	W01-R58-4081	0.59KG	Dunlop SP2910
4 1/2X1	W01-R58-4043	0.14KG	Dunlop SP2008
4 1/2X1	W01-R58-4050	0.77KG	Dunlop SP2334
4 1/2X2	W01-R58-4051	0.94KG	Dunlop SP2441
4 1/2X2	W01-R58-4076	0.31KG	Dunlop SP1457
4 1/2X3	W01-R58-4035	1.11KG	Dunlop SP2895
6X1	W01-R58-4052	2.35KG	Dunlop SP1368
6X1	W01-R58-4078	1.67KG	Dunlop SP2913
6X2	W01-R58-4036	2.65KG	Dunlop SP543
6X2	W01-R58-4053	2.71KG	Dunlop SP1482
6X2	W01-R58-4070	2.4KG	Dunlop SP2917
6X3	W01-R58-4095	3.11KG	Dunlop SP2861
8X1	W01-R58-4054	3.2KG	Dunlop SP1637
8X1	W01-R58-4085	0.62KG	Dunlop SP1218
8X2	W01-R58-4045	1.16KG	Dunlop SP253
8X2	W01-R58-4055	3.84KG	Dunlop SP1490
8X3	W01-R58-4056	4.43KG	Dunlop SP2863
10X1	W01-R58-4057	3.89KG	Dunlop SP2623
10X2	W01-R58-4048	1.65KG	Dunlop SP255
10X2	W01-R58-4058	4.85KG	Dunlop SP1538
10X2	W01-R58-4092	4.85KG	Dunlop SP1538

Application in Lifting Equipment

Air springs play a critical role in lifting equipment by providing controlled load support, vibration isolation, and height adjustment during lifting and lowering operations.

In cranes, lifting platforms, and hoisting systems, air springs are used to absorb impact forces generated when loads are picked up or set down.

This helps protect the structure of the equipment, reduces stress on mechanical components, and improves overall operational safety.
