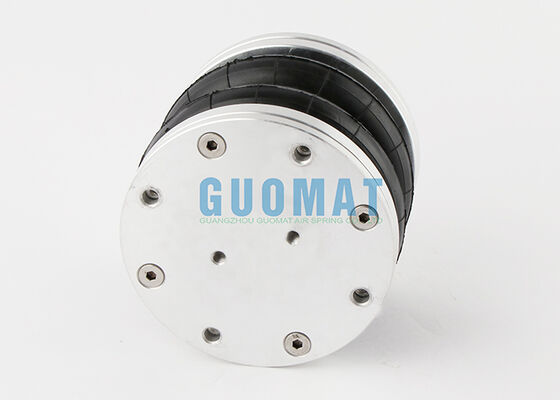

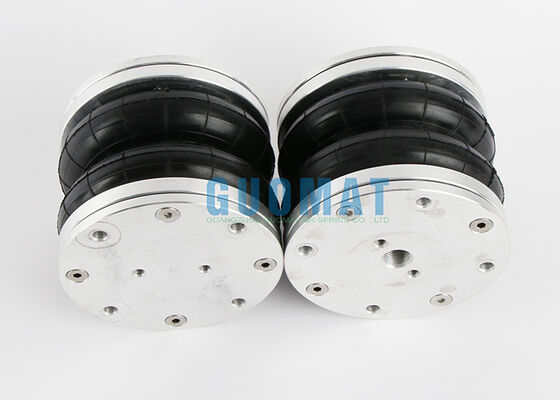

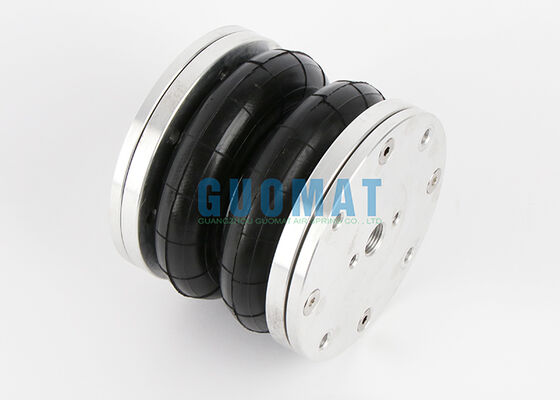

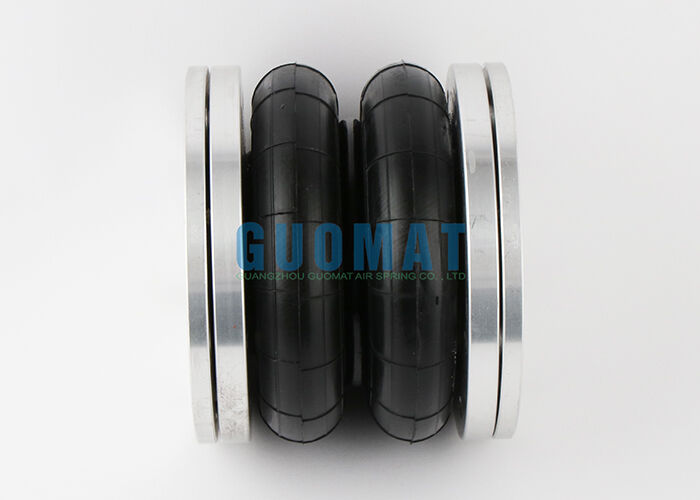

FD 76-14 DI Contitech Rubber Air Bellows 6''x2 W01R584070 firestone Air Spring For Industrial Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B6X2P

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Bellows Type:	Double Convoluted	Condition:	Brand New
Brand Name:	GUOMAT	Operation:	Gas-Filled
Rubber Bellows:	6''x2	Contitech:	FD 76-14 DI
Firestone:	W01 R58 4070	Color:	Black
Highlight:	Contitech rubber air bellows , Firestone air spring for industrial machine , 6x2 industrial air spring

FD 76-14 DI Contitech Rubber Air Bellows 6"x2 W01R584070 Firestone Air Spring For Industrial Machine

Product Overview

The GUOMAT 2B6X2P industrial air bellows is a double convoluted rubber air spring designed for industrial machinery vibration isolation, load support, and motion control. It is fully interchangeable with ContiTech FD 76-14 DI and Firestone W01R584070, making it a reliable aftermarket solution for a wide range of industrial applications.

Instead of relying on rigid mechanical springs, this air bellows uses compressed air to provide flexible, adjustable support—helping equipment operate more smoothly and with less structural stress.

Technical Specifications

Maximum Diameter	168mm
Space Required	180mm
Minimum Height	75mm
Maximum Height	215mm
Total Stroke	140mm
Static Height	140mm
Effective Area at Static Height	130cm²
Bellows Weight	2.08kg

Compatible Part Numbers

Manufacturer	Part Numbers
Continental ContiTech	FD 76-14 1/2 M8, FD 76-14 D1 G1/2, FD 76-14 Dl G1/2 M8, FD 76-14 DI G1/2 CR, FD 76-14 DI CR G1/2, FD 76-14 DICR/FD76-14DICR/FD7614DICR, FD 76-14/FD76-14/FD7614
Firestone	WO1-R58-4070/W01R58 4070/W01R584070, Style: 6"x2
Dunlop FR	6"x2 SP1646 (COMPOSITE), 6"x2 SP2917 (ALUMINIUM)
Dunlop UK (Pneuride)	A3 1330 02 01/A313300201
Norgren	PM/31062/PM 31062/PM31062
Nominal	8"x convolutions: 6"x2/6"x2/6x2
Parker	6"x2 9109001A
YS-AIR	YS-160-2VS/YS 160 2VS/YS1602VS

Common Applications

Industrial presses and forming machines
Packaging and filling equipment
Conveying and material handling systems
Lifting and leveling platforms
General vibration isolation systems

Its compact size makes it especially suitable for installations with limited vertical space.

Firestone Air Spring Reference

Bellows Number	Part Number	Weight	OEM Number
10X3	W01-R58-4047	2.61KG	Dunlop SP258
10X3	W01-R58-4059	5.93KG	Dunlop SP1539
10X3	W01-R58-4086	5.45KG	Dunlop SP1539
12X1	W01-R58-4060	5.56KG	Dunlop SP1640
12X2	W01-R58-4038	7.07KG	Dunlop SP2782NB
12X2	W01-R58-4044	2.17KG	Dunlop SP256NB
12X2	W01-R58-4061	6.84KG	Dunlop SP921NB
12X2	W01-R58-4073	6.87KG	Dunlop SP2665NB
12X3	W01-R58-4046	6.64KG	Dunlop SP12X3
12X3	W01-R58-4062	8.32KG	Dunlop SP1542NB
141/2X1	W01-R58-4063	7.39KG	Dunlop SP643
141/2X2	W01-R58-4064	9.06KG	Dunlop SP257
141/2X2	W01-R58-4074	9.05KG	Dunlop SP1988
141/2X2	W01-R58-4075	2.87KG	Dunlop SP257
141/2X3	W01-R58-4065	11.01KG	Dunlop SP1558
141/2X3	W01-R58-4100	12KG
16X1	W01-R58-4066	7.61KG
16X2	W01-R58-4023	3.38KG	Dunlop SP1129
16X2	W01-R58-4067	9.43KG	Dunlop SP1557
16X3	W01-R58-4068	12.04KG	Dunlop SP2141
