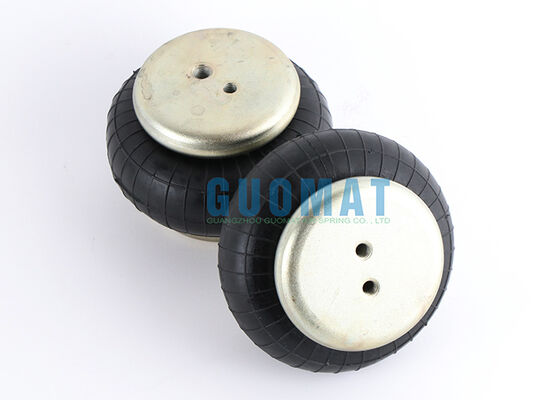

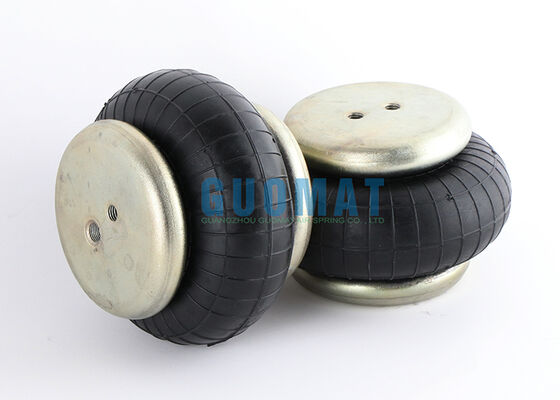

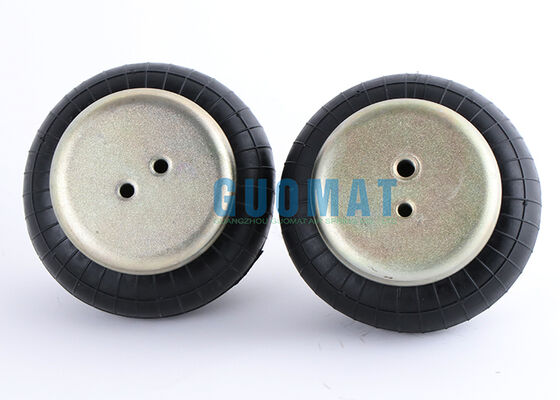

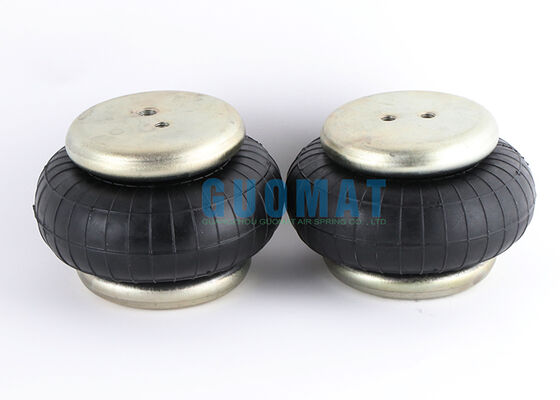

G1/8 Air Fitting FS 40-6 Contitech Single Convoluted Air Spring 2681001000 For Industrial

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B4060

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	$49.9-59.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Name:	Single Convoluted Air Spring	Style:	Single Convoluted Style
Material:	Rubber And Steel	Warranty:	12 Months
Application:	Industrial Equipment	Operation:	Gas-Filled
Color:	Black	OEM:	Contitech FS40-6
Highlight:	G1/8 air fitting industrial air spring , Contitech single convoluted air spring , FS 40-6 industrial air spring

G1/8 Air Fitting FS 40-6 Contitech Single Convoluted Air Spring 2681001000 For Industrial

Product Details

Type	Convoluted Airbag
Brand	GUOMAT
Model Number	1B4060
Color	Black
Application	Pick Up
Warranty	12 Months
Payment	T/T L/C Western Union
Packing	Carton Box
Delivery date	2-8 working days

Cross-Reference Part Numbers

Contitech Air Spring Number: FD40-6
Contitech Air Spring Number: FD 40-6
Contitech Air Spring Number: FD40-6 CI
Contitech Air Spring Number: FD 40-6 CI
Contitech Air Spring Number: 2681001000
Phoenix Air Spring Number: SP1B04
Phoenix Air Spring Number: SP 1B04
Phoenix Air Spring Number: SP 1B 04
Weforma Air Spring Number: WBE100-E1
Weforma Air Spring Number: WBE 100-E1

Technical Specifications

Working temperature	-40°C bis +70°C
Failure testing	≥3 millions
Top Cover Plate Diameter	90mm
Bottom Cover Plate Diameter	90mm
Gas Hole / Air inlet	G1/8
Rubber Bellows MAX Diameter	145mm
The Working Stroke	MAX 110 mm to MIN 50 mm
Top Cover Plate Screw (Nut) Tooth	1XM8X1.25
Bottom Cover Plate Screw (Nut) Tooth	2XM8X1.25
Screw Center Distance of Top Cover Plate	20mm
Screw Center Distance of Bottom Cover Plate	20mm

Performance Data

Pressure P [bar]	3	4	5	6	7	8	Volume V [I]
Force (Load) [KN]	1.5	2.1	2.6	3.2	3.8	4.4	0.51
Spring Rate [N/cm]	790	965	1150	1325	1505	1685
Natural Frequency [Hz]	3.6	3.4	3.3	3.2	3.1	3.1

Pressure P [bar]	3	4	5	6	7	8	Volume V [I]
Height H [mm] 100	1.1	1.5	2.0	2.4	2.9	3.4	0.55
Height H [mm] 90	1.5	2.1	2.6	3.2	3.8	4.4	0.51
Height H [mm] 80	1.9	2.5	3.2	3.8	4.5	5.2	0.45
Height H [mm] 70	2.2	2.9	3.7	4.4	5.2	5.9	0.38
Height H [mm] 60	2.5	3.3	4.0	4.8	5.7	6.5	0.30

Installation and Usage Recommendations

Installation Precautions

Connection Check: Before installation, ensure the G1/8 threaded interface is clean and free of foreign objects. Sealing tape or liquid sealant is recommended.
Alignment Installation: The airbag should be naturally aligned during installation, avoiding shearing or twisting.
Inflation Procedure: Initial inflation should begin at a low pressure and gradually increase to the working pressure, avoiding sudden high-pressure impacts.
Protection Considerations: In environments where debris or foreign objects may fly, a protective cover is recommended.

Usage Recommendations

Pressure Selection: 2-4 bar is recommended for general vibration damping applications; 3-6 bar is recommended for precision leveling applications.
System Configuration: It is recommended to use with a precision pressure regulating valve and pressure gauge for accurate control.
Regular Inspection: Check the surface condition and pressure retention of the airbag monthly.
Maintenance Cycle: Under normal operating conditions, a comprehensive inspection is recommended every 2 years.
