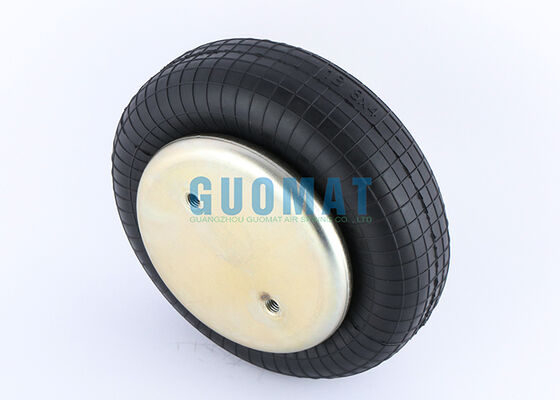

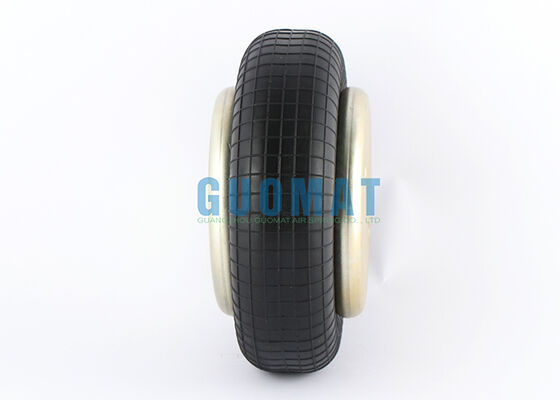

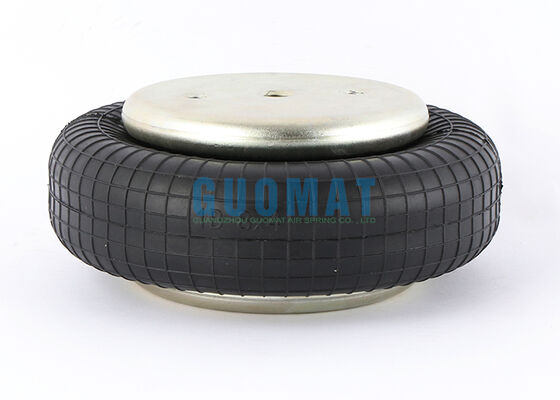

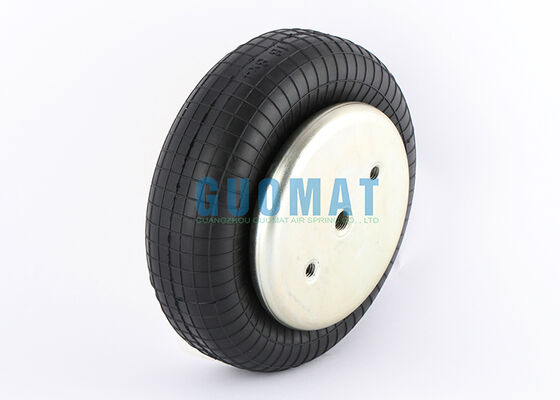

1B8-550 Goodyear Single Convoluted Suspension Air Spring W01-358-7564 Firestone Rubber Air Bags

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B8X4

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	$49.9-59.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Product Name:	Single Convoluted Air Bellow	Material:	Rubber
Warranty:	12 Months	Operation:	Gas-Filled
Color:	Black	Directory:	Industrial System
Service Offered:	OEM/ Buying Label Service	Gooydear:	1B8-550
Highlight:	Goodyear single convoluted air spring , Firestone rubber air bags , industrial suspension air spring

1B8-550 Goodyear Single Convoluted Suspension Air Spring W01-358-7564 Firestone Rubber Air Bags

Product Specifications

Type	Convoluted Airbag
Brand	GUOMAT
Model Number	1B8X4
Color	Black
Application	Pick Up
Warranty	12 Months
Payment	T/T L/C Western Union
Packing	Carton Box
Delivery Date	2-8 working days
MOQ	1 Piece

Corresponding OEM Numbers

Firestone OEM Number: W01-358-7564 / WO1-358-7564
Firestone OEM Number: W01 358 7564 / WO1 358 7564
Firestone OEM Number: W013587564 / WO13587564
Goodyear OEM Number: 1B8-550
Goodyear OEM Number: 1B 8-550
Contitech OEM Number: FS120-10
Contitech OEM Number: FS 120-10

Technical Specifications

Working Temperature	-40°C to +70°C
Failure Testing	≥3 millions
Top Cover Plate Diameter	141mm
Bottom Cover Plate Diameter	141mm
Gas Hole / Air Inlet	G1/4
Rubber Bellows MAX Diameter	231mm
The Working Stroke	MAX 150 mm to MIN 51 mm
Top Cover Plate Screw (Nut) Tooth	2XM8X1.25
Bottom Cover Plate Screw (Nut) Tooth	2XM8X1.25
Screw Center Distance of Top Cover Plate	70mm
Screw Center Distance of Bottom Cover Plate	70mm

Performance Data

Pressure P [bar]	3	4	5	6	7	8	Volume V [I]
Height H [mm]	120	4.2	5.6	7.2	8.4	10.2	11.7	2.1
110	4.8	6.6	8.2	9.9	11.6	13.4	2.0
100	5.6	7.4	9.2	11.2	13.1	15.0	1.8
90	6.0	8.0	10.1	12.2	14.2	16.4	1.6
80	6.5	8.6	10.9	13.2	15.3	17.6	1.4
70	6.8	9.2	11.4	13.8	16.1	18.4	1.3

Pressure P [bar]	3	4	5	6	7	8	Volume V [I]
Load [KN]	3.8	5.2	6.5	8.0	9.3	10.6	3.2
Stiffness [N/cm]	600	830	1060	1290	1520	1750
Natural Frequency [Hz]	2.1	2.0	2.0	2.0	2.0	2.0
