10''X3 Triple Convoluted Rubber Bellows W01R584059 Firestone Industrial Air Spring

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	3B10X3T

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	$159.9-169.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Product Name:	Industrial Air Spring/Air Bags/Air Ballons/Air Lift	Warranty:	12 Months
OEM:	Available	Other Name:	Industrial Triple Convoluted Air Spring
Bellows Number:	10''X3	Firestone:	W01R584059
Contitech:	FT 210-32 DS	Weight:	7KG
Highlight:	10x3 triple convoluted rubber bellows , Firestone industrial air spring , W01R584059 air spring replacement

10''X3 Triple Convoluted Rubber Bellows W01R584059 Firestone Industrial Air Spring

The GUOMAT 3B10X3T Triple Convoluted Industrial Air Spring is designed as a reliable replacement for Firestone W01R584059. This air spring is widely used in industrial equipment where load support, vibration isolation, and height adjustment are required.

With its triple convoluted design, the 3B10X3T offers increased stroke capability and stable performance under variable loads, making it suitable for demanding industrial environments.

Cross-Reference Part Numbers

Manufacturer	Part Numbers
FIRESTONE	W01R584059 ; W01 R58 4059 ; W01-R58-4059
FIRESTONE	10X1 ; 10''X1
CONTITECH	FT210-32DS ; FT 210-32DS ; FT 210-32 DS
NORGREN	M/31103 ; M 31103 ; M31103
DUNLOP	SP1539 ; SP 1539
PARKER	9109031

Technical Specifications

Top Cover Plate: Diameter of 210mm, four M10 bolts, G1/2 vent holes, and a center distance of 180mm between the threaded holes.

Bottom Cover Plate: Diameter of 210mm, four M10 bolts, and a center distance of 180mm between the threaded holes.

Overall Dimensions: Maximum outer diameter 270mm, natural height 322mm, maximum height 400mm, and minimum height 118mm.

About Guangzhou Guomat Air Spring Co., Ltd.

Our company is one of Chinese leading auto suspension parts suppliers and we specialize in foreign trade for many years. We believe that you can rely on us as we provide you quite satisfactory service and products with best quality at most competitive price in the world.

Our Services

We can reply your inquiry in 24 working hours
Accept OEM and Sample orders
Exclusive and unique solutions provided by our well-trained and professional engineers and staff
Timely delivery
Comprehensive after-sale service
Factory pricing available

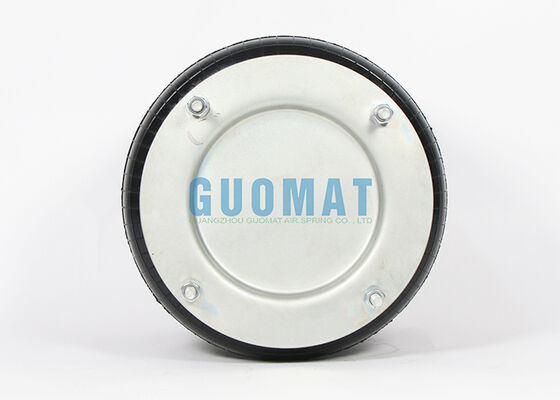

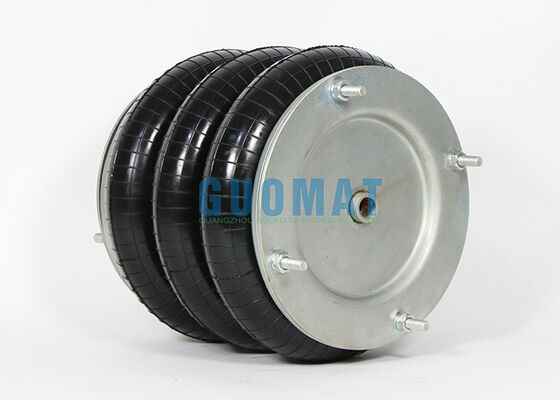

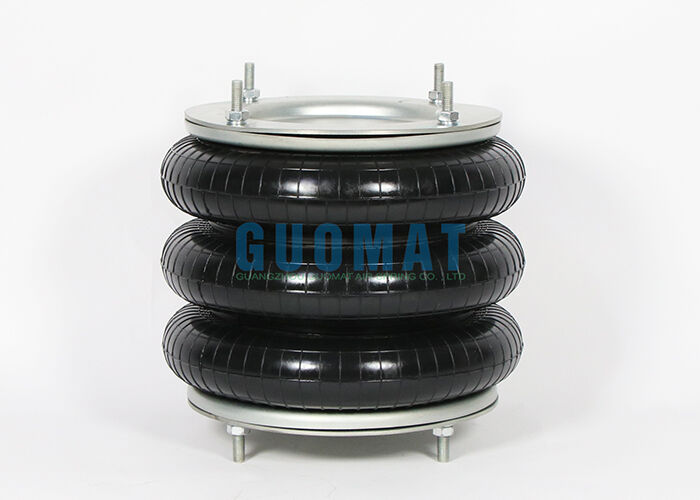

Product Image
