8''X3 Rubber Air Bellows FT 138-26 DS Contitech Heavy Duty Industrial Air Bag Factory supply

8''X3 Rubber Air Bellows FT 138-26 DS Contitech Heavy Duty Industrial Air Bag Factory supply

8''X3 Rubber Air Bellows FT 138-26 DS Contitech Heavy Duty Industrial Air Bag Factory supply
8''X3 Rubber Air Bellows FT 138-26 DS Contitech Heavy Duty Industrial Air Bag Factory supply
8''X3 Rubber Air Bellows FT 138-26 DS Contitech Heavy Duty Industrial Air Bag Factory supply
Product Details:
Place of Origin: GuangDong, China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 3B8X3T
Payment & Shipping Terms:
Minimum Order Quantity: 6PCS
Price: $169.9-189.9/pc
Packaging Details: Strong Carton Box Or As Customers Need
Delivery Time: 2-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Rubber + Steel Warranty: 12 Months
Sample: Available Other Name: Triple Convoluted Rubber Air Spring
Firestone: W01 R58 4056 Air Inlet: G1/2
Work Pressure: ≤0.7Mpa Convolutions: 3
Highlight:

8x3 rubber air bellows

,

industrial air spring with warranty

,

heavy duty Contitech air bag

8"X3 Rubber Air Bellows FT 138-26 DS Contitech Heavy Duty Industrial Air Bag Factory Supply
Product Overview

Heavy-duty industrial air bellow designed for demanding applications with superior durability and performance characteristics.

Product Specifications

Manufacturer: GUOMAT

Model Number: 3B8X3T

Material: Rubber and Steel

Warranty: 12 Months

Working Pressure: ≤ 0.7 MPa

Working Medium: Water, Air, Small Amount of Oil

Fatigue Test: > 1 Million Cycles

Burst Pressure: > 2.0 MPa

Technical Data

Cover Plate

Top Cover Plate Diameter: 183.5mm

Bottom Cover Plate Diameter: 183.5mm

Air Inlet: G1/2

Blind Nut

Screw Center Distance Of Bottom Cover Plate: 155.5mm

Top Cover Plate Screw (Nut) Tooth: 4pcs XM10

Bottom Cover Plate Screw (Nut) Tooth: 4pcs XM10

Rubber Bellow

Rubber Bellow Natural Diameter: 205mm

Natural Height: 196mm

Force vs Pressure Characteristics
Height H (mm) 3 bar 4 bar 5 bar 6 bar 7 bar 8 bar VoI.V(I)
290 3.94 5.4 6.86 8.44 10 11.7 6.7
240 5.25 7.11 8.96 10.9 12.9 14.9 5.8
190 6.38 8.6 10.8 13.2 15.5 18 4.7
140 8.01 10.6 13.1 15.9 18.7 21.6 3.4
Cross-Reference Part Numbers
  • Firestone: W01-R58-4056, W01 R58 4056, W01R584056, 8X3, 8"X3
  • Contitech: FT138-26DS, FT 138-26DS, FT 138-26 DS
  • Dunlop: SP2863, SP 2863
  • Norgren: M/31083, M 31083, M31083
Typical Applications
  • Industrial machinery vibration isolation
  • Press machines and stamping equipment
  • Conveying and material handling systems
  • Equipment leveling and height adjustment systems
  • General pneumatic and suspension applications

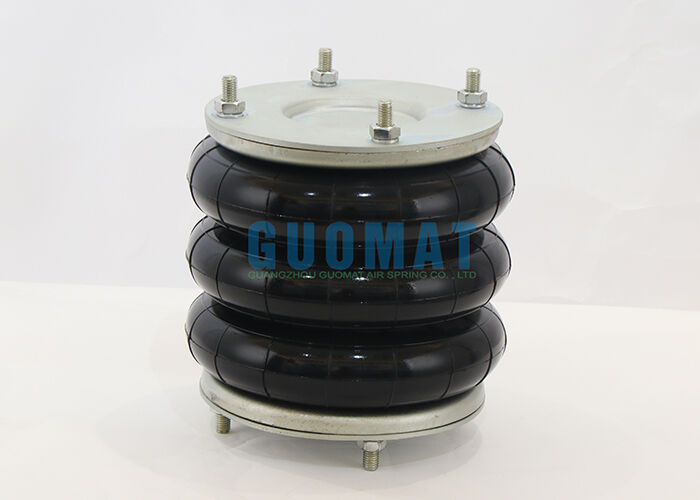

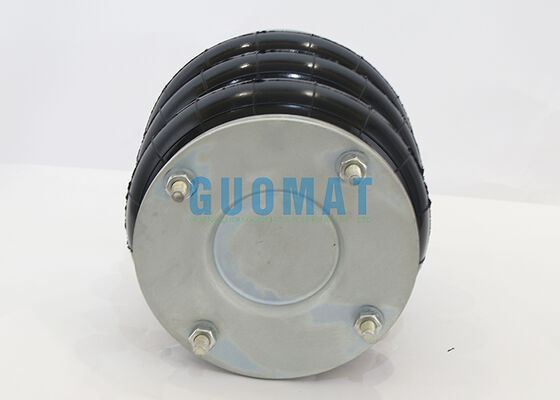

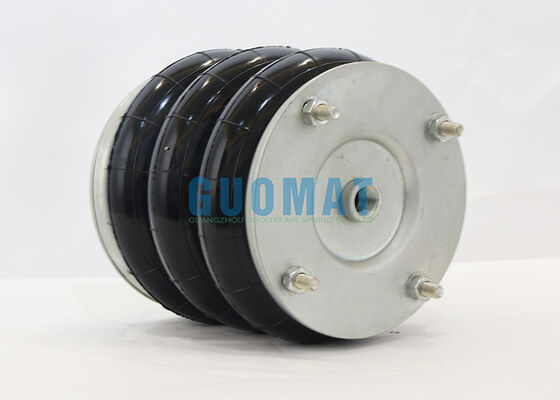

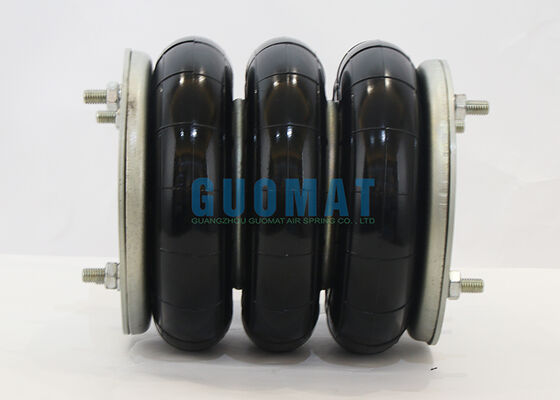

Product Image
8''X3 Rubber Air Bellows FT 138-26 DS Contitech Heavy Duty Industrial Air Bag Factory supply 0

Tag:

air helper springs,

air suspension parts,

convoluted air spring
