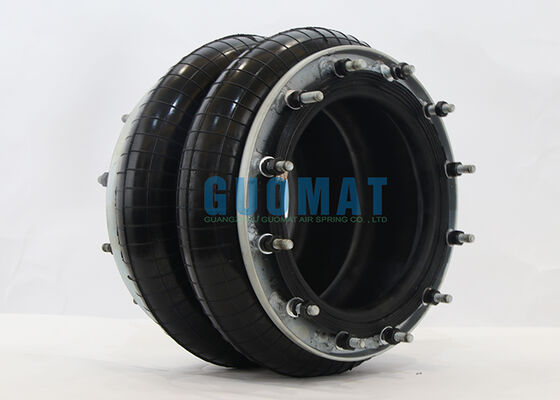

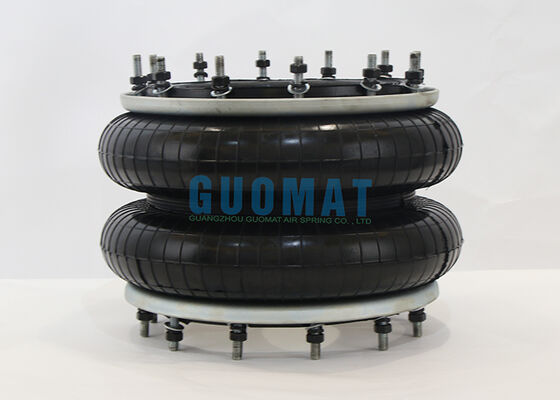

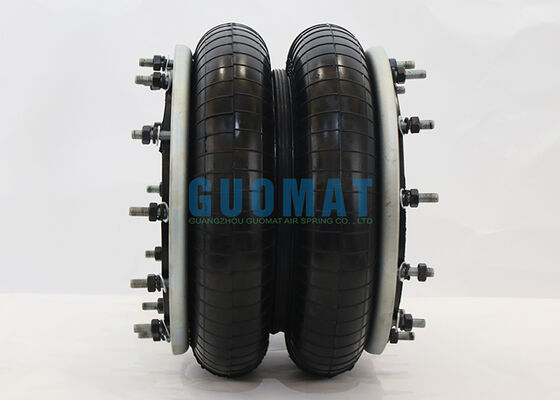

Firestone Air Bags W01-358-7431 Double Convoluted Industrial Air Spring With Flange

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2H7431

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	$139.9-149.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Type:	Flange Air Spring	Material:	Rubber+Steel
Warranty:	12 Months	Quality:	100% Tested
Cross Number:	Firestone W01-358-7431	Net Weight:	4.6KG
Condition:	Brand New	Position:	Industrial Machine
Highlight:	Firestone industrial air spring with flange , double convoluted air spring W01-358-7431 , Firestone air bags industrial suspension

Firestone Air Bags W01-358-7431 Double Convoluted Industrial Air Spring With Flange

Product Overview

Part Name: Flange Air Spring

Brand: GUOMAT

Model Number: 2H7431

Material: Rubber+Steel

Warranty: 12 Months

Certificate: ISO/TS16949:2009

Ordering & Delivery

MOQ: 1 PCS

Delivery: 2-8 working days after payment

Payment Terms: L/C T/T Westrem Union

Package: Standard packaging and accept customer's special packaging demand

Our Advantages

Factory directly sale
High quality and competitive price
Professional in the manufacture of air suspension

Product Types

Air Suspension Bellow, Air Spring, Air Shock Absorber, Air Suspension, Suspension Pneumatique, Air Suspension Repair Kits, Auto Parts

Replacement Part Numbers

Firestone Style Number: 22

Firestone OEM Numbers:

W01-358-7431
W01 358 7431
W013587431

Technical Specifications

Top Cover Plate: Diameter 250mm, secured with four M8X1.25 bolts, center-to-center distance 228.5mm

Bottom Cover Plate: Diameter 250mm, secured with four M8X1.25 bolts, center-to-center distance 228.5mm

Natural Outer Diameter: 301mm

Natural Height: 193mm

Performance Data

Assembly Height (in.)	Volume @ 100PSIG (in³)	Pounds Force @20PSIG	Pounds Force @40PSIG	Pounds Force @60PSIG	Pounds Force @80PSIG	Pounds Force @100PSIG
10.0	809	950	1810	2830	3810	4840
9.0	752	1170	2260	3460	4670	5880
8.0	685	1310	2590	3940	5350	6700
7.0	610	1430	2900	4390	5950	7450
6.0	529	1540	3170	4780	6470	8110
5.0	442	1640	3380	5100	6880	8630
4.0	349	1730	3520	5340	7180	9020

Related Firestone Air Spring Parts

Blind nuts, 1/4 NPT: W01-358-7180 / W01 358 7180 / W013587180
Blind nuts, 1/4 NPT, bumper: W01-358-7400 / W01 358 7400 / W013587400
Blind nuts, 3/4 NPT: W01-358-7184 / W01 358 7184 / W013587184
Blind nuts, 3/4 NPT, bumper: W01-358-7185 / W01 358 7185 / W013587185
Countersunk steel bead rings, 15/8 bolts, nuts, washers: W01-358-7431 / W01 358 7431 / W013587431
Rubber bellows only: W01-358-0226 / W01 358 0226 / W013580226
Blind nuts, 1/4 NPT: W01-358-7251 / W01 358 7251 / W013587251
Blind nuts, 1/4 NPT, bumper: W01-358-7291 / W01 358 7291 / W013587291
Blind nuts, 3/4 NPT: W01-358-7250 / W01 358 7250 / W013587250
Countersunk steel bead rings,13/4 bolts, nuts, washers: W01-358-7258 / W01 358 7258 / W013587258
Rubber bellows only: W01-358-7928 / W01 358 7928 / W013587928
