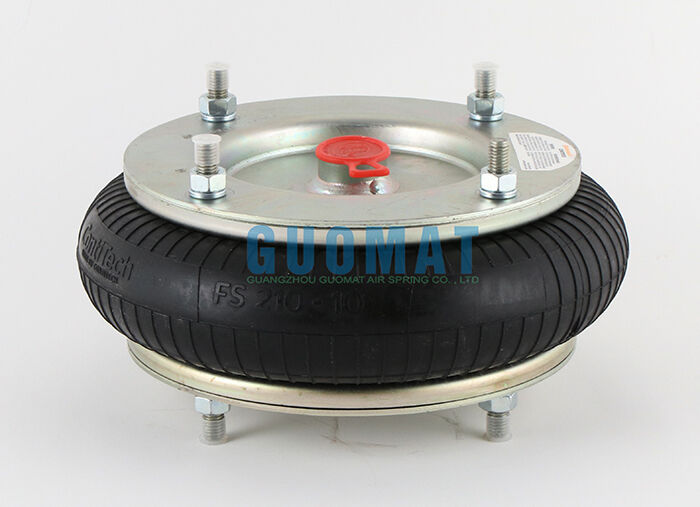

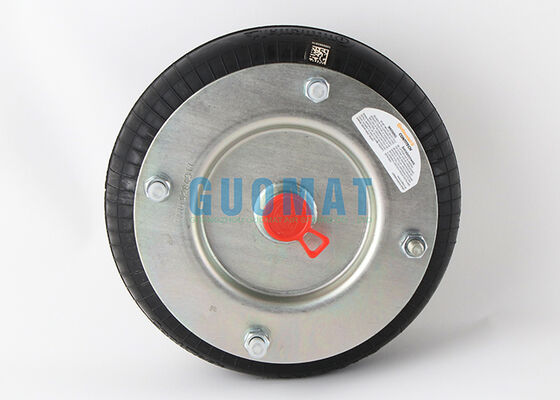

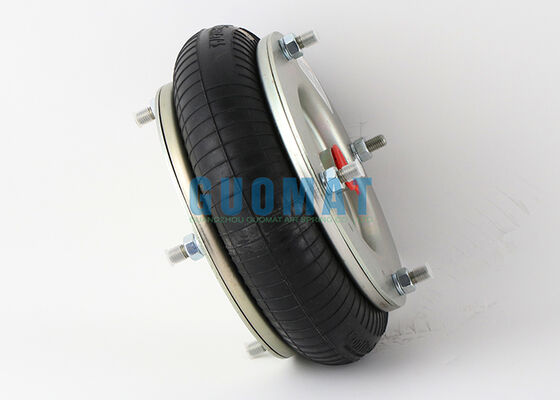

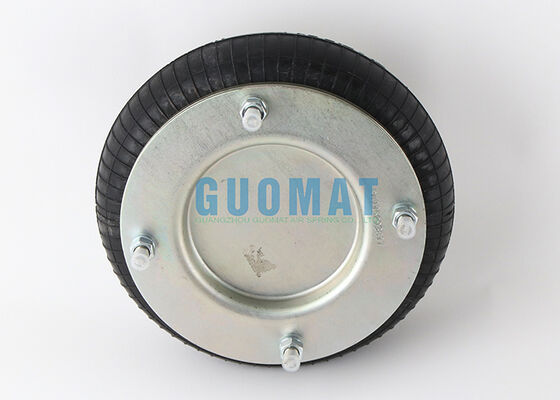

10''X1 Single Convoluted Air Bellows FS210-10 Contitech Rubber Air Bag For Packaging Machine

Product Details:

Place of Origin:	Germany
Brand Name:	CONTITECH
Certification:	ISO/TS16949:2009
Model Number:	FS210-10

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	$159.9-199.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Model Name:	Contitech Air Spring	Sale-After:	12Months
Product Material:	Iron+Rubber	Package:	Strong Brown Carton Box
Condition:	100% Brand-new	Part Number:	FS210-10
Convolutions:	1	Order Number:	67404
Highlight:	10x1 convoluted air bellow , Contitech rubber air bag , packaging machine air spring

10''X1 Single Convoluted Air Bellows FS210-10 Contitech Rubber Air Bag For Packaging Machine

Product Overview

Type: Single Convoluted Air Spring

Brand: Contitech

Model Number: FS210-10

Torque Specifications: M10: Max. 25 Nm | G1/2: Max. 25 Nm

Purchase Order Data

Type	Order No.
Rubber Bellows Only	66992
With Dismountable Plates, G1/2 Air Inlet	67404

Contitech Part Numbers

FS210-10
FS 210-10
FS210-10 DS
FS 210-10 DS
FS210-10 DS G1/2
FS 210-10 DS G1/2
FS210-10 DS G1/2 M8
FS 210-10 DS G1/2 M8

Replacement Part Numbers

Firestone:

10''X1
10 X1
W01-R58-4057
W01 R58 4057
W01R584057

Dunlop:

SP2523
SP 2523
10''X1

Norgren:

M/31101
M 31101
M31101

Technical Specifications

Specification	Value
Top Cover Diameter	210mm / 8.27 inches
Air Holes	G1/2
Top Cover Bolts	4PCS M8
Center Distance of Top Cover Bolts	181mm / 7.13 inches
Bottom Cover Diameter	210mm / 8.27 inches
Bottom Cover Bolts	4PCS M8
Center Distance of Bottom Cover Bolts	181mm / 7.13 inches
Maximum Outer Diameter	270mm / 10.63 inches
Maximum Extension Height	150mm / 5.90 inches
Minimum Compression Height	50mm / 1.97 inches
