FD 530-22 321 Contitech Convoluted Type Rubber Air Bellows W01-358-7136 Firestone Air Spring

FD 530-22 321 Contitech Convoluted Type Rubber Air Bellows W01-358-7136 Firestone Air Spring

FD 530-22 321 Contitech Convoluted Type Rubber Air Bellows W01-358-7136 Firestone Air Spring
FD 530-22 321 Contitech Convoluted Type Rubber Air Bellows W01-358-7136 Firestone Air Spring
FD 530-22 321 Contitech Convoluted Type Rubber Air Bellows W01-358-7136 Firestone Air Spring
Product Details:
Place of Origin: GuangDong, China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 2B53022
Payment & Shipping Terms:
Minimum Order Quantity: 6pcs
Price: $59.9-69.9/pc
Packaging Details: Strong Carton Box Or As Customers Need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Natural Rubber+Steel Warranty: 1 Year
Cover Plate: Steel Plate Package: Neutral Brown Carton Packaging
Function: Shock Absorption Rubber Type: Natural Rubber
Contitech: FD530-22 Firestone: W01-358-7136
Highlight:

Contitech rubber air bellows

,

Firestone air spring replacement

,

industrial convoluted air spring

FD 530-22 321 Contitech Convoluted Type Rubber Air Bellows W01-358-7136 Firestone Air Spring
Product Overview

Industrial-grade rubber air spring designed for vibration isolation and pneumatic applications in industrial platforms and suspension systems.

Product Name: Rubber Air Spring
Model Number: 2B53022
Minimum Order Quantity: 1 PCS
Warranty: 12 Months
Material: Rubber
Packaging: Carton
Technical Specifications
Path Minimal Compression Safe Stretch Working Stroke
Ø287mm Ø77mm Ø310mm Ø233mm
  • Top Cover Plate Diameter: 287 mm
  • Bottom Cover Plate Diameter: 287 mm
  • Gas Hole / Air Inlet: G1/4 / G3/4 / G1
  • Top Cover Plate Screw (Nut) Tooth: 4XM10X1.5
  • Bottom Cover Plate Screw (Nut) Tooth: 2XM10X1.5
  • Screw Center Distance of Top Cover Plate: 158.8 mm
  • Screw Center Distance of Bottom Cover Plate: 158.8 mm
  • Rubber Bellows MAX Diameter: 385 mm
Vibration Isolation - Dynamic Characteristic Values
Pressure P (bar) 3 4 5 6 7 8 Vol V(I)
Force(Load) (KN) 15.2 20.7 25.8 31.5 36.8 42 18.7
Spring Rate (N/cm) 2225 2860 3495 4130 4765 5400 -
Natural Frequency f0 (Hz) 1.9 1.8 1.8 1.8 1.8 1.7 -
Pneumatic Application - Static Characteristic Values
Pressure P (bar) 3 4 5 6 7 8 Vol V(I)
Height H(mm) 260 14.1 19.3 24.1 29.5 34.5 39.4 19.5
Height H(mm) 220 18.2 24.4 30.5 37 43.2 49.1 16.5
Height H(mm) 180 21 28.2 35.3 42.6 49.7 56.8 13.6
Height H(mm) 140 23.1 31 38.7 46.5 54.3 61.9 10.5
Height H(mm) 100 24.4 32.3 40.4 48.7 56.8 64.7 7.2
Compatible Part Numbers
Firestone: W01-358-7136
Contitech: FD 530-22 321
Goodyear: 2B14-356
Goodyear: 2B14-453
Goodyear: 578-92-3-353
Goodyear: 578-92-3-351
Triangle: 6329
Triangle: 4321
Brake&Wheel: M3503
Ridewell: 1003587136C
Dayton: 3547136
Leland: Sc2014
Navistar: 554798C1
Hendrickson Auxillary: QW12AX
Hendrickson Trailer: S1080/C1
Tuthill Technology: 1626
Watson&Chalin: AS004
V-olvo: 3130489
SAF Holland: 57007136
Product Images

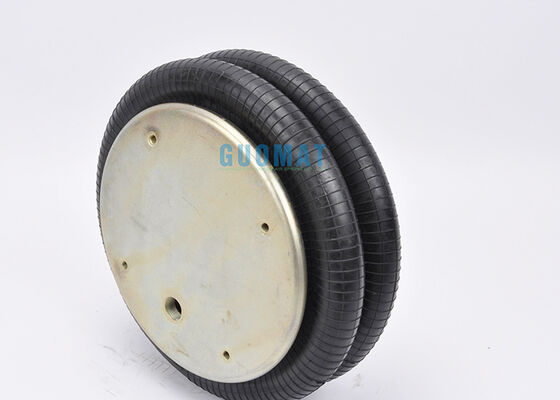

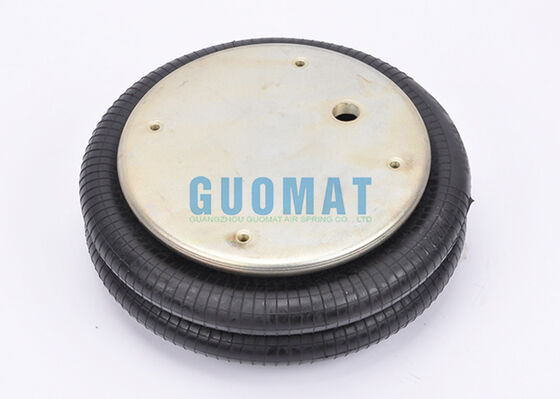

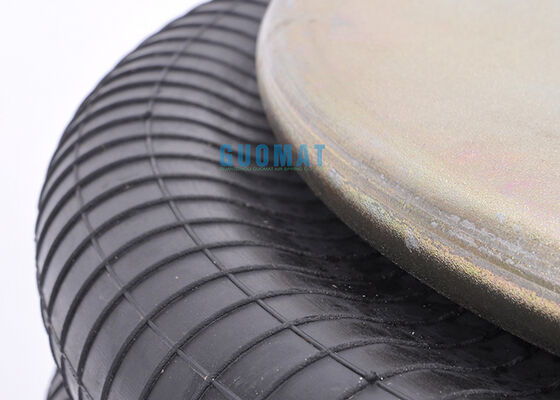

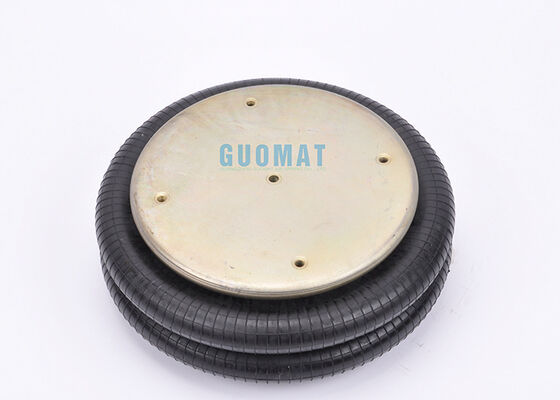

FD 530-22 321 Contitech Convoluted Type Rubber Air Bellows W01-358-7136 Firestone Air Spring 0 FD 530-22 321 Contitech Convoluted Type Rubber Air Bellows W01-358-7136 Firestone Air Spring 1
