W01-358-6943 Firestone Double Convoluted Air Bellows 2B9-250 Goodyear Industrial Air Spring

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B 6943

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$59.9-69.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Convoluted Type:	Double Convoluted Type	Warranty:	1 Year
Material:	Natural Rubber And SteelCover	Package:	Carton/Cartons
Color:	Black	Other Name:	Air Springs Bellows Actuator
Highlight:	Firestone double convoluted air bellows , Goodyear industrial air spring , 2B9-250 air spring replacement

W01-358-6943 Firestone Double Convoluted Air Bellows 2B9-250 Goodyear Industrial Air Spring

Product Overview

Double Convoluted Air Spring designed for industrial applications with OEM quality and high cost performance.

Brand: GUOMAT
Model No.: 2B6943
Material: Rubber, Steel
One Year Factory Warranty
OEM Quality and Service
High Cost Performance
MOQ: 1 PC
Payment Methods: L/C, T/T, Western Union, PayPal

Cross-Reference Part Numbers

Firestone W01-358-6943 Contitech FD200-25 426 Contitech 161332 Goodyear 2B9-250 Goodyear 578-92-3-206 Triangle 6332 Triangle 4426 Watson & Chalin AS-0041 Neway/SAF 90557237 Ridewell 1003586943C Tuthill 6352

Technical Specifications

Cover Plate	Top Cover Plate Diameter: 160mm Bottom Cover Plate Diameter: 160mm
Air Inlet	1/4NPTF
Blind Nut	Screw Center Distance Of Bottom Cover Plate: 89mm Screw And Gas Hole Distance Of Top Cover Plate: 44.5mm Top Cover Plate Screw (Nut) Tooth: 2X1/2-13UNC Bottom Cover Plate Screw (Nut) Tooth: 2x3/8-16UNC
Rubber Bellow	Rubber Bellow MAX Diameter: 262mm Max. Height: 325mm Min. Height: 79mm

Packaging & Supply

Each GUOMAT air spring is packed with individual protective packaging to prevent deformation, abrasion, and contamination during handling and transportation. The rubber bellows and mounting surfaces are well protected to ensure the product arrives in optimal condition.

For distributors, wholesalers, and OEM customers, bulk orders are fully supported. Packaging methods can be adjusted according to order quantity and shipping requirements, helping optimize container space and reduce logistics costs. Pallet packing, carton packing, and customized packaging solutions are available upon request.

All products are supplied with export-ready packaging, suitable for long-distance sea and air transportation. With stable production capacity and standardized packing procedures, GUOMAT ensures consistent lead times and reliable delivery for international customers.

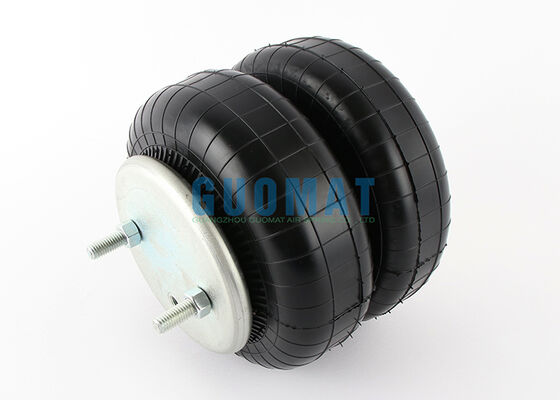

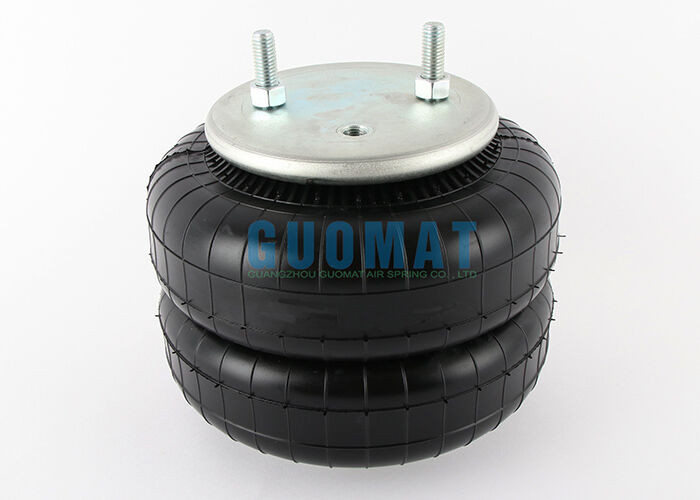

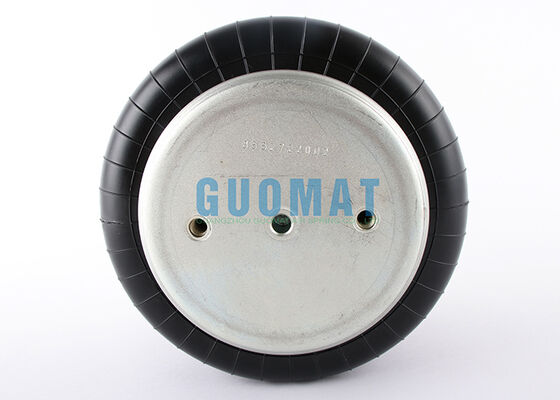

Product Images
