Style 224C Firestone Industrial Air Bags A01-760-0335 Double Convoluted Air Spring Long Service Life

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B0335

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$59.9-69.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Model Name:	Industrial Air Spring	Material:	Rubber Bellow And Steel Cover
Warranty:	1 Year Warranty	Quality:	100 % Tested
Style:	Two Ply Bellows	Firestone:	A01-760-0335
Stroke:	75mm-230mm	Type:	Air Spring Bag
Highlight:	Firestone industrial air spring double convoluted , Style 224C air spring long service life , A01-760-0335 industrial air bags

Style 224C Firestone Industrial Air Bags A01-760-0335 Double Convoluted Air Spring Long Service Life

Product Overview

Industrial Air Spring with double convoluted design for superior performance and extended service life in demanding industrial applications.

Model Number: 2B0335
Brand: GUOMAT
Material: Rubber + Steel
Warranty: 12 Months

OEM Compatibility

FIRESTONE Part Numbers	A01-760-0335, A01 760 0335, A017600335
FIRESTONE Style Number	224C

Technical Specifications

Top Plate Diameter	132mm
Air Fitting	3/8NPT
Threaded Holes (Top Plate)	2X3/8-16UNC
Distance Between Holes (Top)	70mm
Bottom Plate Diameter	132mm
Threaded Holes (Bottom Plate)	2X3/8-16UNC
Distance Between Holes (Bottom)	70mm
Rubber Bellow Max. Diameter	203mm
Maximum Height	230mm
Minimum Height	75mm

Performance Advantages

Double Convoluted Structure: Dual-bellows design increases load capacity and provides broader working stroke for smooth performance under fluctuating loads
Superior Vibration Isolation: Effectively reduces machine vibration and mechanical shock transmission, protecting equipment and improving operational stability
Long Service Life: High-quality rubber material with strong fatigue resistance and air tightness extends product lifespan in high-frequency industrial applications
Stable Load Support: Maintains consistent performance across wide pressure ranges, suitable for heavy machinery and dynamic load conditions

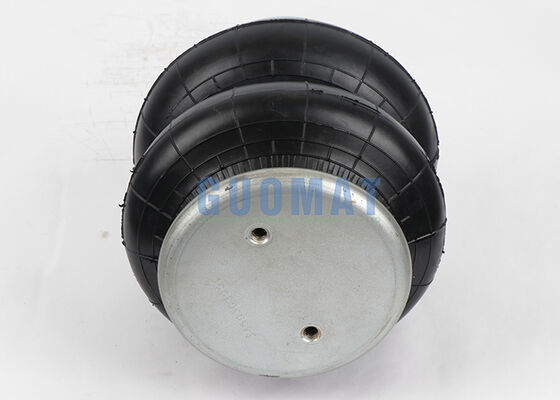

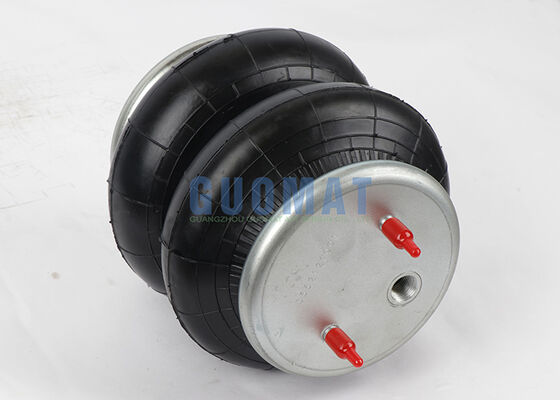

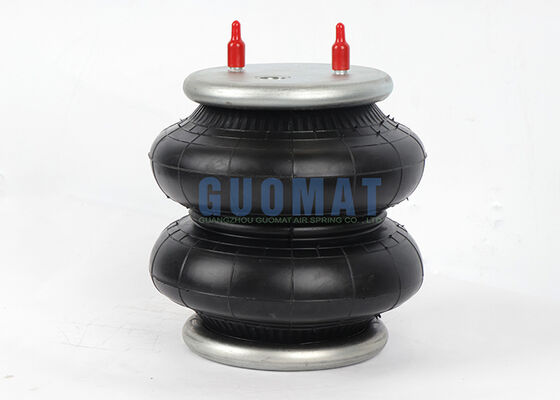

Product Images
