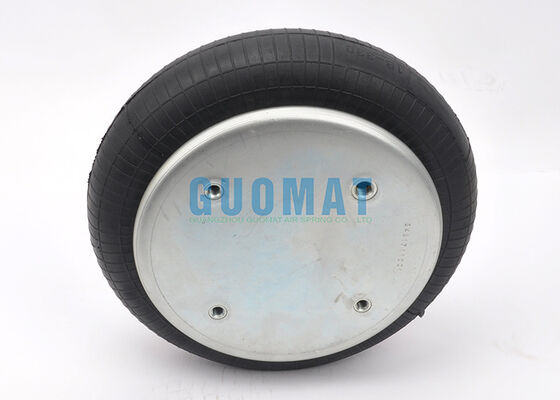

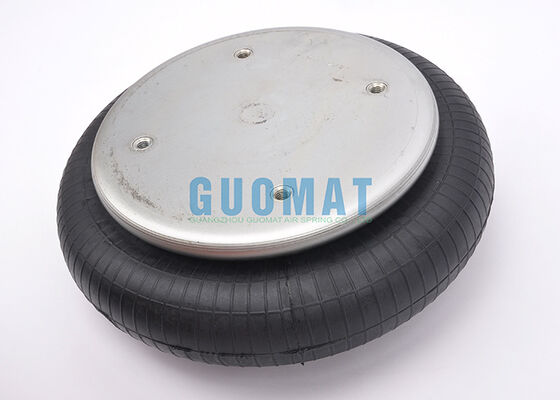

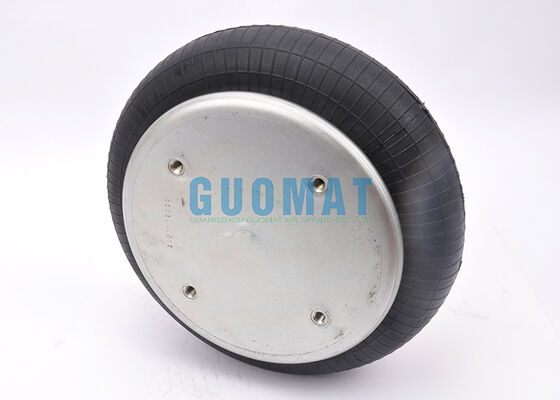

W01-358-7103 Firestone Industrial Vibration Isolation Air Spring 113 Style Air Cushion

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B7103

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$49.9-59.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Firestone:	W01-358-7103	Warranty:	12 Months
Material:	Metal+Rubber	Color:	Black
Function:	Reduce Shock	Convolutions:	1
Application:	For Washing Plant	Operation:	Gas-filled
Highlight:	Firestone industrial air spring , vibration isolation air cushion , 113 style air spring

W01-358-7103 Firestone Industrial Vibration Isolation Air Spring 113 Style Air Cushion

Product Specifications

Item Name: Single Convoluted
Model No.: 1B7103
Material: Natural Rubber and High Quality Steel
Warranty: 12 Months
MOQ: 10 Pieces
Color: Black

Alternative Part Numbers

Firestone Number: W01-358-7103
Firestone Number: W01 358 7103
Firestone Number: W013587103
Firestone Style Number: 113
Peerless Part Number: 0550-00015

Technical Data

Specification	Measurement
Top Cover Plate Diameter	11.31 inch
Bottom Cover Plate Diameter	11.31 inch
Rubber Bellows Diameter	14.12 inch
The Working Stroke	50mm-115mm
Screw Center Distance of Top Cover Plate	6.25 inch
Screw Center Distance of Bottom Cover Plate	6.25 inch
Minimum Height	2.12 inch

Application in Washing Plant Systems

The GUOMAT 1B7103 air spring is commonly used in washing plant systems to provide vibration isolation and stable load support for equipment operating under continuous and high-moisture conditions.

In washing plants, machinery such as washing drums, separation units, and conveyor structures often generate dynamic vibration and uneven loads during operation. The 1B7103 air spring helps absorb shock, reduce structural vibration transmission, and maintain equipment alignment, contributing to smoother and more stable performance.

Thanks to its flexible rubber bellows structure, the air spring can accommodate height variation and load fluctuation while minimizing mechanical stress on frames and support structures. This not only improves operational efficiency but also helps extend the service life of surrounding mechanical components.

The GUOMAT 1B7103 is particularly suitable for installation in washing systems where durability, stability, and vibration control are critical.

Technical Drawing
