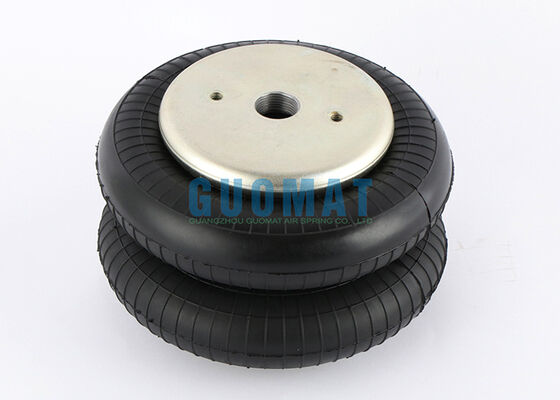

FD 120-17 3/4 M8 Contitech Double Convoluted Air Bags PM/31082 Norgren Industrial Air Spring

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B12017

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	$59.9-69.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Model Name:	Double Convoluted Air Spring	Spring Material:	Rubber
Warranty:	12 Months	Packing Size:	242424cm
Contitech Number:	FD120-17	Air Hole:	G3/4
Norgren:	PM/31082	Net.Weight:	2.5KG
Highlight:	Contitech double convoluted air spring , M8 industrial air spring , Norgren air spring with warranty

FD 120-17 3/4 M8 Contitech Double Convoluted Air Bags PM/31082 Norgren Industrial Air Spring

Product Overview

The GUOMAT 2B12017 is a double convoluted industrial air spring designed as a replacement for ContiTech FD 120-17 3/4 M8 and Norgren PM/31082.

Built for load support and vibration isolation in industrial equipment, it provides stable vertical flexibility and reliable performance under repeated operating cycles.

With M8 mounting configuration and durable rubber construction, the 2B12017 offers a practical and cost-effective solution for pneumatic and automation systems.

GUOMAT: 2B12017
Warranty: 1 Year
Material: Rubber and Steel
HS Code: 8708809000
MOQ: 6PCS

Cross-Reference Part Numbers

Continental ContiTech: FD 120-17 C1 G3/4

Continental ContiTech: FD 120-17 C1 G3/4 M8

Continental ContiTech: FD 120-17 3/4 M8

Continental ContiTech: FD 120-17 C12682 030 000

Continental ContiTech Bellow: FD 120-17 / FD 120 17 / FD12017

Goodyear: 2B8-2152 / 2B8 2152 / 2B82152

Goodyear Flex No: 578-92-3-2151 / 578 92 32151 / 5789232151

Festo: EB-215-155 / EB 215 155 / EB215155

Dunlop FR: 8"x2 S08201

Norgren: PM/31082 / PM 31082 / PM31082

Nominal 0 (inch)x convolutions: 8"x2 / 8"x2 / 8x2

Technical Specifications

Top cover diameter	140mm
Top threaded hole specifications	2XM8, 15mm
Center distance between top threaded holes	70mm
Air vent	G3/4
Bottom cover diameter	140mm
Bottom threaded hole specifications	2XM8, 15mm
Center distance between bottom threaded holes	70mm
Maximum outer diameter	215mm
Design height	183mm

Double Convoluted Air Spring Series

Part No.	Order No.	Air Hole	Threaded Hole
FD 70-13	2682015000	G1/4	M8
FD 120-17	2682030000	G3/4	M8
FD 138-18	66505	G1/2	M10
FD 200-19	72047	G1/4	M10
FD 200-19	72045	G1/4	M8
FD 200-19	72046	G3/4	M8
FD 200-19 P02	72043	M24X1.5,M16X1.5	M10
FD 200-19 P04	72044	M12X1.5	M10
FD 200-22	72448	G1/4	M10
FD 200-25	62892	G1/4	M10
FD 200-25	60555	G1/4	M8
FD 200-25 P02	66476	M12X1.5	M10
FD 210-22	67403	G1/2	M10
FD 330-22	2682060000	G1	M10
FD 330-22	2682066000	M12X1.5	M8
FD 330-30	60417	G1/4	M8
FD 412-18	66334	G1/2	M10
FD 412-18P01	66299	M16X1.5	M10
FD 1730-40	72730	-	-
