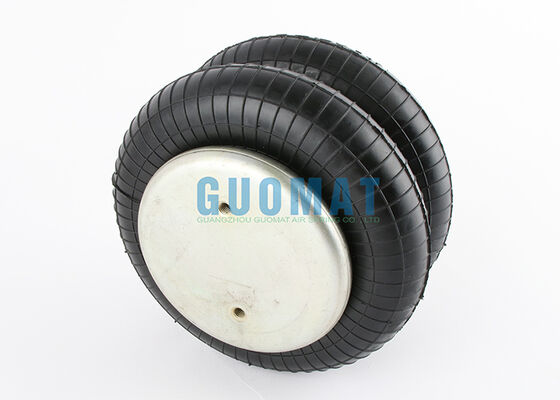

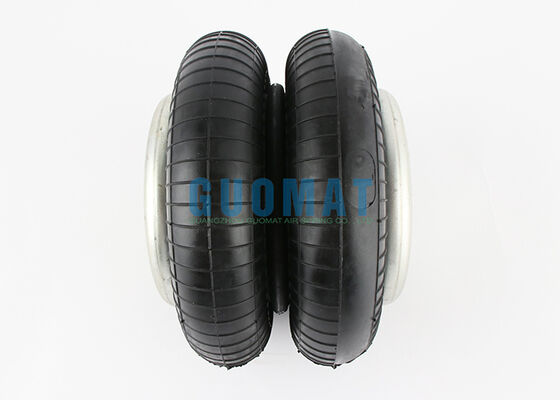

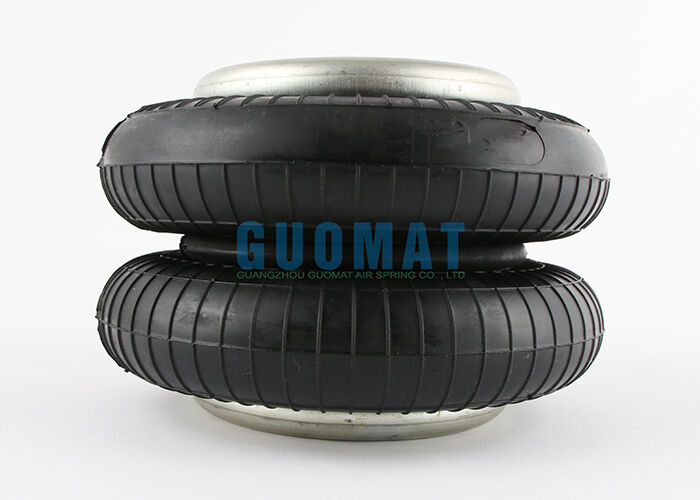

Contitech Rubber Air Suspension Spring FD 200-22 1/4 M10 Convoluted Spring Bags

Contitech Rubber Air Suspension Spring FD 200-22 1/4 M10 Convoluted Spring Bags

Contitech Rubber Air Suspension Spring FD 200-22 1/4 M10 Convoluted Spring Bags
Contitech Rubber Air Suspension Spring FD 200-22 1/4 M10 Convoluted Spring Bags
Contitech Rubber Air Suspension Spring FD 200-22 1/4 M10 Convoluted Spring Bags
Product Details:
Place of Origin: Guangdong, China
Brand Name: GUOMAT
Certification: ISO/TS16949, ISO9001
Model Number: 2B20022-1/4M10
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: US$69.9-US$79.9/PC
Packaging Details: Strong Carton Box or as Customers Requirement
Delivery Time: 5-8 Working Days
Payment Terms: L/C, D/A, D/P, Western Union
Supply Ability: 1000PCS/Week
Contact Now
Detailed Product Description
Spring Material: Rubber And Steel Brand: GUOMAT
Quality: 100% Tested Warranty: 12 Months
Type: Gas-Filled Sample: Available
Contitech: FD 200-22 Other Name: Rubber Air Balloon
Highlight:

Contitech rubber air suspension spring

,

M10 convoluted spring bags

,

FD 200-22 air spring

Contitech Rubber Air Suspension Spring FD 200-22 1/4 M10 Convoluted Spring Bags
Product Overview

Industrial equipment often operates under constant load, vibration, and repetitive movement. In such environments, traditional metal springs can transmit shock directly to machinery, which may lead to noise, instability, or premature component wear.

The GUOMAT 2B20022-1/4M10 convoluted air spring is designed to solve these challenges by using compressed air as the elastic medium. Compared with conventional springs, air springs provide better vibration isolation, smoother motion control, and adjustable load support, making them widely used in modern industrial machinery and pneumatic systems.

This model corresponds to the FD 200-22 1/4 M10 Contitech air spring, offering a reliable replacement solution with consistent installation dimensions and stable performance.

Cross-Reference Part Numbers
Manufacturer Original Part No.
WewelerYP06910W
KRONE550018680
AccevalEDD1-020
KRONE550018467
Schmitz015335
SMB093770016
WewelerYP06910F
JostJAS 20 107 016 01
JostJAE 20 107 016 01
Jost2010701601
WewelerUS 06910C
WewelerUS 0691F
Schmitz016 793
Daimler TASA9463281601
Valx81005001
Technical Specifications
Parameter Specification
Top Plate Diameter159 mm
Thread SpecificationM10
Thread Center Distance89 mm
Air PortG1/4
Design Height236 mm
Maximum Outer Diameter255 mm
Common Applications
  • Industrial automation equipment
  • Mechanical presses and forming machines
  • Pneumatic lifting platforms
  • Vibration isolation systems
  • Packaging and processing machinery
  • Precision production lines

The flexible air chamber allows the spring to adapt to different loads while maintaining stable and reliable performance.

Contitech Rubber Air Suspension Spring FD 200-22 1/4 M10 Convoluted Spring Bags 0 Contitech Rubber Air Suspension Spring FD 200-22 1/4 M10 Convoluted Spring Bags 1

Tag:

double convoluted air spring,

triple convoluted air spring,

industrial air springs
