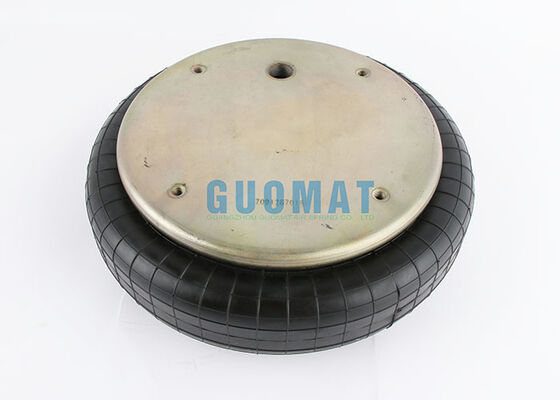

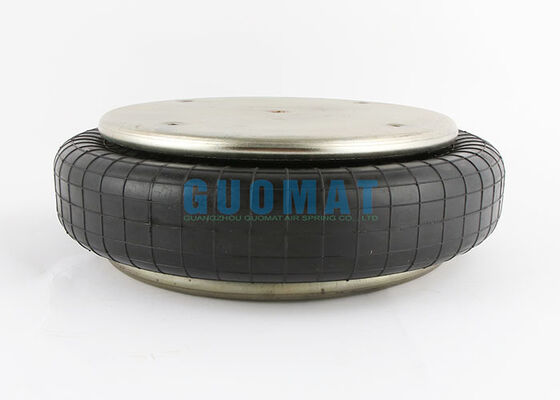

W01-358-7101 Firestone Style 113 Rubber Bellows Industrial Air Spring Replacement

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	W01-R58-4044

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$109.9-119.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T,Western Union,L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Spring Material:	Natural Rubber And Steel	Packing Size:	333325cm
MOQ:	1 Pcs	Application:	Industrial Machine
Spring Type:	Double Convoluted	Warranty:	1 Year
Contitech:	FS 530-11 CI 1/4 NPT (OS)	Other Name:	Rubber Air Spring
Highlight:	Firestone rubber bellows air spring , industrial air spring replacement , Style 113 air spring bellow

W01-358-7101 Firestone Style 113 Rubber Bellows Industrial Air Spring Replacement

GUOMAT 1B53014 Air Spring is engineered as a premium replacement for Firestone W01-358-7101, delivering exceptional performance and seamless compatibility. Constructed from high-grade rubber and robust steel components, this air spring ensures superior load capacity, excellent airtightness, and extended service life.

This industrial air spring provides effective vibration isolation and flexible height adjustment capabilities, making it ideal for various mechanical and industrial applications. Backed by a comprehensive 1-year warranty, it offers both quality assurance and outstanding value.

Cross-Reference Part Numbers

Firestone Style 113

Firestone W01-358-7103

Firestone W01 358 7103

Firestone W013587103

Goodyear 1B14-350

Goodyear 1B 14-350

Goodyear 1B14 350

Goodyear Flex No. 578913351

Goodyear Flex No. 578 91 3 351

Goodyear Flex No. 578-91-3-351

Taurus 6326

Configuration Variations

Blind nuts, 1/4NPT: W01-358-7103 / W01 358 7103 / W013587103
Blind nuts, 1/4NPT, bumper: W01-358-7104 / W01 358 7104 / W013587104
Blind nuts, 3/4NPT: W01-358-7101 / W01 358 7101 / W013587101
Blind nuts, 3/4NPT, bumper: W01-358-7109 / W01 358 7109 / W013587109
Countersunk steel brad rings, 13/4 bolts, nuts, washers: W01-358-7110 / W01 358 7110 / W013587110
Blind nuts, 1/8NPT: W01-753-7113 / W01 753 7113 / W017537113
Blind nuts, 1 1/4NPT: W01-753-7114 / W01 753 7114 / W017537114
Rubber bellows only: W01-358-0135 / W01 358 0135 / W013580135

GUOMAT 1B53014 Technical Specifications

Top Cover Plate: Diameter 287mm, 4 threaded holes (XM8), center bolt distance 158.8mm, vent specification G3/4

Bottom Cover Plate: Diameter 287mm, 4 threaded holes (XM8), center bolt distance 158.8mm

Dimensions: Maximum outer diameter 405mm, maximum height 185mm, minimum height 51mm, design height 150mm

Pneumatic Application - Static Characteristic Values

Height H (mm)	Pressure P (bar)	3	4	5	6	7	8	Vol V (l)
160	Force F (kN)	17.1	23	29	35	41.2	47.3	11.8
140	Force F (kN)	20	26.8	33.7	40.6	47.7	54.5	10.7
120	Force F (kN)	22.3	29.8	37.3	44.9	52.7	60.2	9.5
100	Force F (kN)	24.1	31.9	40	48.1	56.3	64.3	8.2
80	Force F (kN)	25.3	33.4	41.9	50.3	58.8	67.1	6.6
60	Force F (kN)	26	34.5	43.4	52.0	60.8	69.1	4.6
