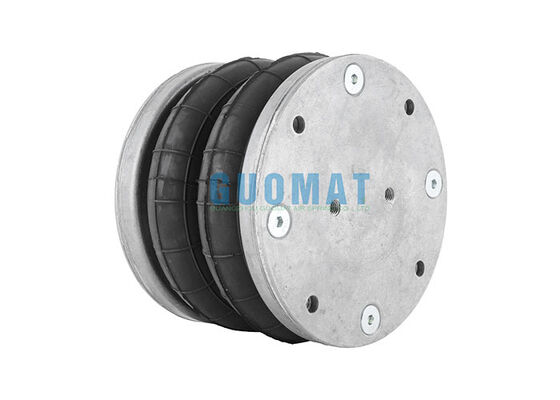

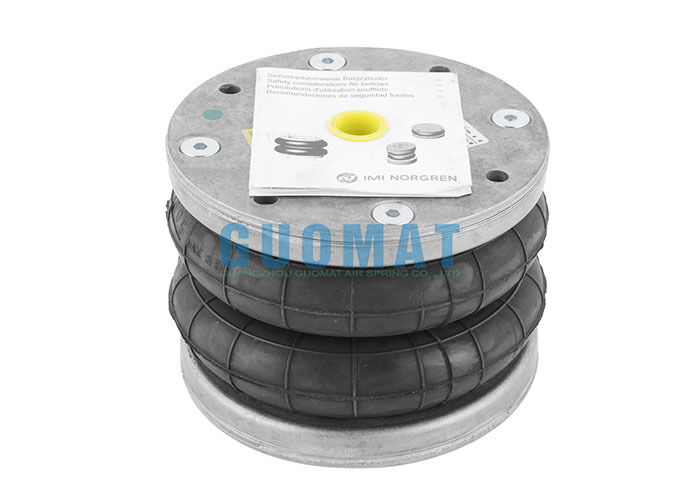

PM/31062 IMI Norgren Double Convoluted Air Spring 6''X2 Rubber Bellows Air Balloon

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	Norgren
Certification:	ISO/TS16949:2009
Model Number:	PM/31062

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$189.9-299.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T,Western Union,L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Material:	Natural Rubber+Steel	Color:	Black
Package:	Neutral Brown Carton Packaging	Function:	Shock Absorption
Norgren:	PM/31062	Bellows:	6''X2
Weight:	2.7KG	Series:	Air Bellows
Highlight:	IMI Norgren double convoluted air spring , 6x2 rubber bellows air balloon , industrial air spring with warranty

PM/31062 IMI Norgren Double Convoluted Air Spring 6"×2 Rubber Bellows Air Balloon

This single-acting air bellows operates on compressed air (0-8 bar) and delivers a theoretical force of up to 10,600 N at 6 bar. With a 6" nominal diameter and 115 mm stroke length, it is suitable for applications requiring controlled lifting or vibration isolation.

Key Features

NBR rubber body for excellent resistance to oil and aging
Wide temperature range: -30°C to 50°C (-22°F to 122°F)
G1/2 port size for easy connection
Compact footprint: 175 mm × 175 mm base, 175 mm height
Lightweight construction: only 2.7 kg

Technical Specifications

Parameter	Specification
Operating Pressure	0-8 bar (0-116 psi)
Theoretical Force at 6 bar	10,600 N
Nominal Diameter	6 inches
Stroke Length	115 mm
Port Size	G1/2
Weight	2.7 kg

Replacement Part Numbers

Continental ContiTech: FD 76-14 1/2 M8, FD 76-14 D1 G1/2, FD 76-14 D1 G1/2 M8, FD 76-14 DI G1/2 CR, FD 76-14 DI CR G1/2, FD 76-14DICR/FD76-14DICR/FD7614DICR, FD 76-14/FD76-14/FD7614

Firestone: W01-R58-4070/W01R58 4070/W01R584070, Style: 6"×2

Dunlop FR: 6"×2 SP1646 (COMPOSITE), 6"×2 SP2917 (ALUMINIUM)

Dunlop UK (Pneuride): A3 1330 0201/A313300201

Installation & Operation Guidelines

Mounting Orientation: Install vertically with proper alignment to prevent uneven wear
Operating Pressure: Do not exceed 8 bar (116 psi) maximum pressure
Temperature Limits: Rated for -30°C to 50°C (-22°F to 122°F). Avoid prolonged exposure beyond this range
Air Quality: Use filtered, lubricated, or non-lubricated compressed air as per system requirements
Inspection: Regularly check for cracks, abrasion, or air leaks, especially after heavy use
