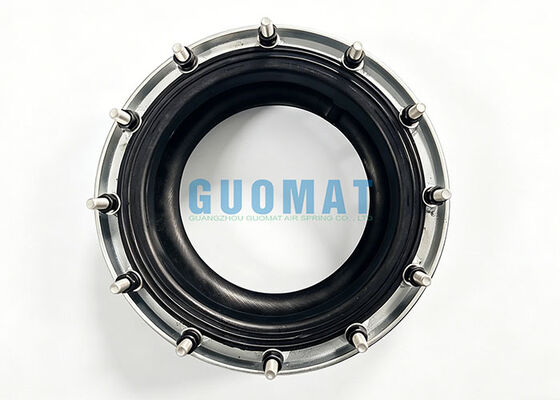

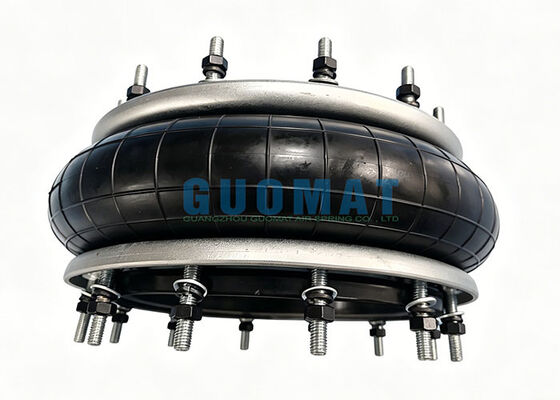

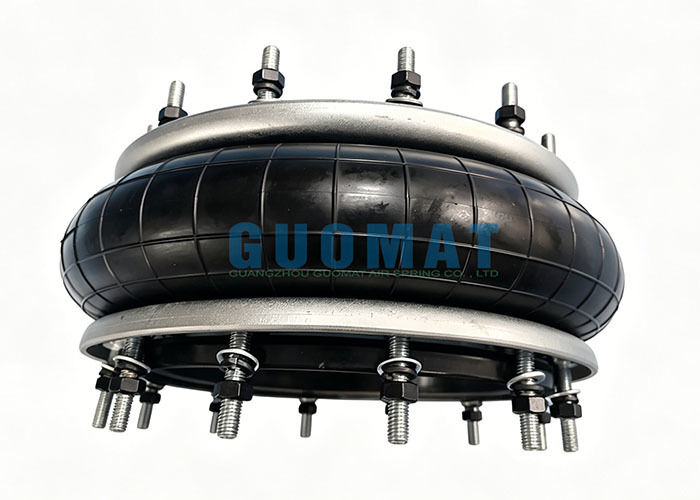

W01-358-7023 Firestone Convoluted Type Air Spring Style 19 Welding Flange Process Rubber Air Bags

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1H7023

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	$159.9-199.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Product Name:	Flange Air Spring	Warranty:	1 Year
Material:	Rubber + Steel	Operation:	Gas-filled
Bolt:	M8*1.25	Corss Number:	Firestone W01-358-7023
Temperature Range:	- 40°C / +70°C	Style:	19
Highlight:	Firestone convoluted air spring , welding flange rubber air bags , industrial air spring with warranty

W01-358-7023 Firestone Convoluted Type Air Spring Style 19 Welding Flange Process Rubber Air Bags

Product Overview

Brand: GUOMAT

Model Name: 1H7023

Type: Convoluted Type Air Spring

Material: Rubber and Steel

Warranty: 12 Months

OEM & Cross Reference Numbers

FIRESTONE STYLE: 18
FIRESTONE Part Number: W01-358-7023
FIRESTONE Part Number: W01 358 7023
FIRESTONE Part Number: W013587023
FIRESTONE Part Number: WO1-358-7023
FIRESTONE Part Number: WO1 358 7023
FIRESTONE Part Number: WO13587023

Technical Specifications

Flange diameter	250mm
Bolts	12pcs - M8*1.25
Bolt height	36mm
Inner diameter	183.5mm
Natural height	110mm
Minimum height	50.8mm
Maximum height	152.4mm

Welded Flange Air Spring Design

Welded flange air springs use a permanently welded steel flange to connect the top/bottom plate, providing a stronger and more reliable structure compared to crimped designs.

Key Features

High Strength Connection - Welded structure ensures durability under heavy load and vibration
Excellent Air Tightness - Reduced risk of air leakage, longer service life
Stable Installation - Firm mounting, no loosening during operation
Fatigue Resistant - Suitable for continuous compression cycles

Firestone Style 19 Compatible Parts

Blind nuts, 1/4 NPT
W013587008, W01-358-7008, W01 358 7008

Blind nuts, 1/4 NPT, bumper
W013587009, W01-358-7009, W01 358 7009

Blind nuts, 3/4 NPT
W013587011, W01-358-7011, W01 358 7011

Blind nuts 3/4 NPT, bumper
W013587012, W01-358-7012, W01 358 7012

Countersunk steel bead rings 15/8 bolts, nuts, washers
W013587023, W01-358-7023, W01 358 7023

Rubber bellows only
W013580134, W01-358-0134, W01 358 0134

Product Drawing
