4.5‘’X1 Rubber Bellow Air Bags M6 Bolt Connection Flange Ring Air Spring Air Actuator

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1H4.5X1F

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$99.9-129.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T,Western Union,L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Model Name:	Rubber Air Spring	Package:	Neutral Brown Carton Packaging
Function:	Shock Absorption	Medium:	Compressed Air
Operation:	Gas-filled	Rubber Bellows:	4.5''X1
Warranty:	12 Months	Material:	NR
Highlight:	Rubber Bellow Air Bags M6 Bolt , Industrial Air Spring Actuator , Flange Ring Air Spring

4.5" X1 Rubber Bellow Air Bags with M6 Bolt Connection Flange Ring

Brand: GUOMAT

Model No.: 1B4.5X1F

Material: Rubber Bellows + Aluminum Flange Ring

Warranty: 1 Year

Material Bellows: NR

Temperature Range: -40°C / +70°C

Technical Specifications

Flange diameter	110mm
Flange inner diameter	77mm
Center distance between bolts	93mm
Mounting bolts	M6
Outer diameter	120mm

OEM Cross-Reference Numbers

Manufacturer	Model Numbers
Firestone	4.5"X1, W01-R58-4050
Dunlop Penuride	4 1/2"X1
Dunlop Springride	SP2334
Contitech	FS 44-5 DI
Norgren	PM/31041
Parker	9109400

Air Spring Applications in Vibration Crushers

Air springs are widely used in vibration crushers to isolate vibration and improve equipment stability. By using compressed air as the elastic medium, they effectively absorb impact and reduce vibration transmission to the machine frame and foundation.

Key Benefits

Vibration Isolation - Minimizes shock and protects surrounding structures
Improved Stability - Ensures smoother operation during crushing
Noise Reduction - Reduces mechanical noise in high-impact environments
Adjustable Load Capacity - Adapts to different working conditions

Why Use Air Springs in Crushers

Compared with traditional metal springs, air springs provide better damping performance and longer service life, making them ideal for heavy-duty and continuous operation equipment like stone crushers.

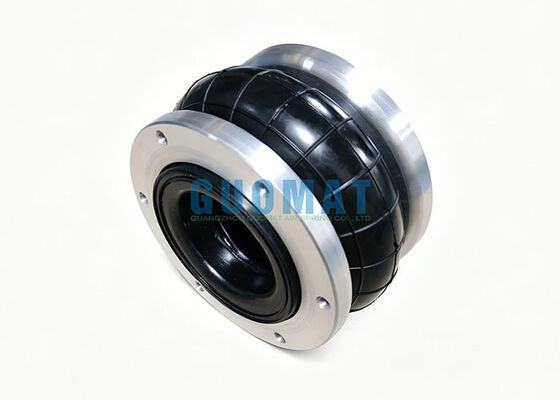

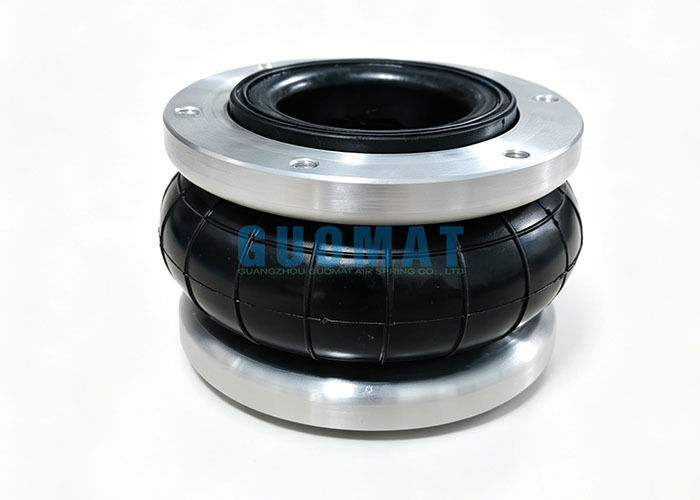

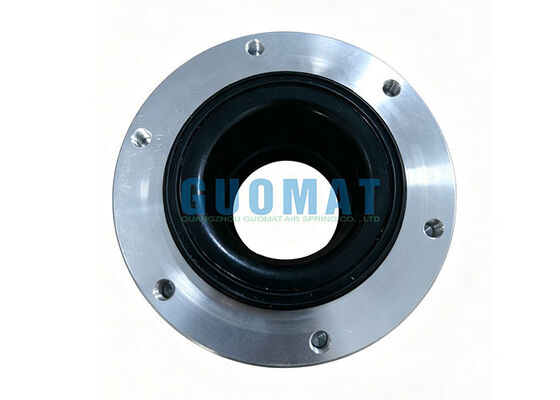

Product Images
