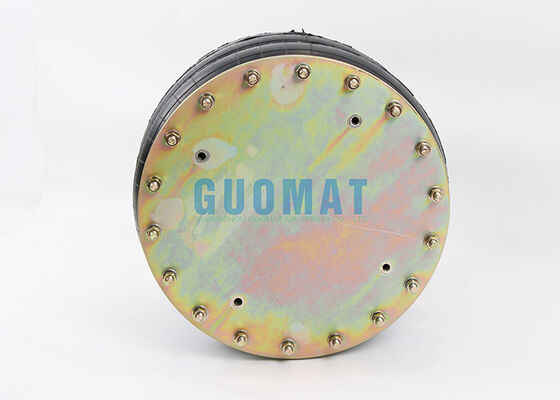

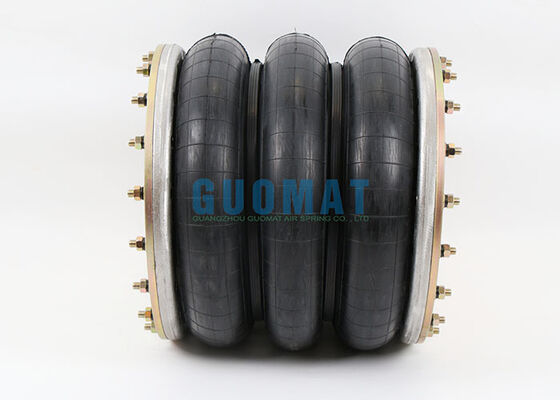

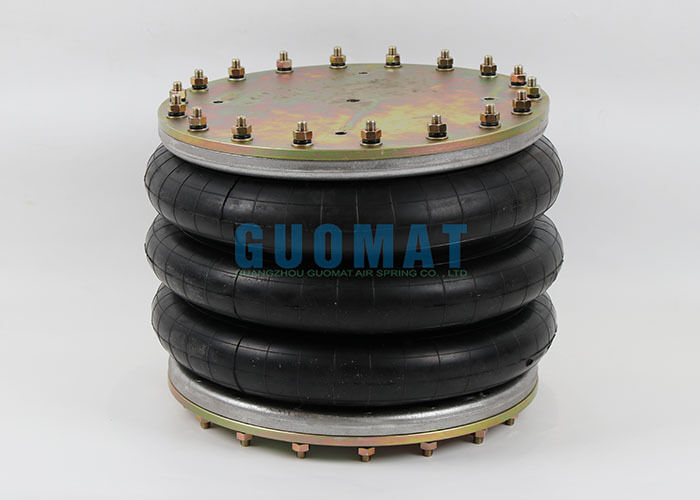

W01-358-7286 Firestone Industrial Air Spring Style 312 Triple Convoluted Air Bag Actuators

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	3H7286

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	$299.9-399.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Spring Material:	Steel+Rubber	Warranty:	12 Months,1 Year
Shock Absorber Type::	Gas-Filled	Quality:	100% Tested
Sample:	Accept	Firestone:	W01-358-7286
Type:	Flange Air Spring	Connection Method:	Bolt
Highlight:	Firestone Industrial Air Spring , Triple Convoluted Air Bag Actuators , Style 312 Air Spring

W01-358-7286 Firestone Industrial Air Spring Style 312 Triple Convoluted Air Bag Actuators

Product Overview

High-performance triple convoluted air spring actuator designed for industrial applications requiring reliable air suspension systems.

Product Specifications

Brand	GUOMAT
Model	3H7286
Type	Triple Convoluted Air Spring
Material	Rubber and Steel
Warranty	1 Year
Connection Method	Bolt

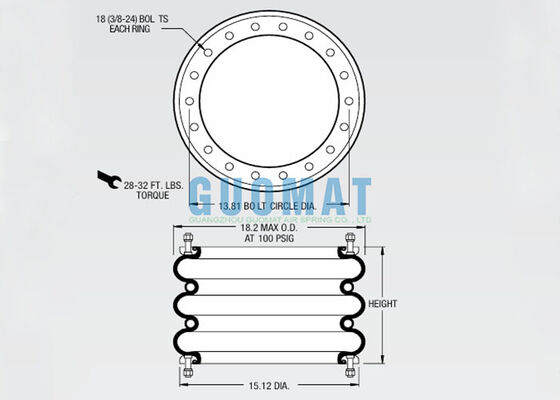

Technical Data

Design Height	13"
Maximum Height	18"
Minimum Height	4.5"
Flange Diameter	15.12"
Number of Bolts	36pcs total
Bolts	3/8-24
Center Distance Between Bolts	13.81"
Maximum Outer Diameter	18.2"

Cross-Reference Part Numbers

FIRESTONE STYLE 312

FIRESTONE W01-358-7286

FIRESTONE W01 358 7286

FIRESTONE W013587286

FIRESTONE WO1-358-7286

FIRESTONE WO1 358 7286

FIRESTONE WO13587286

Ribbed Neck Aluminum Bead Rings (Equal Spacing)

W01-358-7761 / W01 358 7761 / W013587761

WO1-358-7761 / WO1 358 7761 / WO13587761

Ribbed Neck Aluminum Bead Rings (Unequal Spacing)

W01-358-7760 / W01 358 7760 / W013587760

WO1-358-7760 / WO1 358 7760 / WO13587760

Rolled Plate Assembly

W01-358-7286 / W01 358 7286 / W013587286

WO1-358-7286 / WO1 358 7286 / WO13587286

Rubber Bellows Only

W01-358-7914 / W01 358 7914 / W013587914

WO1-358-7914 / WO1 358 7914 / WO13587914

FIRESTONE STYLE 314

W01-358-8003 - Ribbed neck aluminum bead rings (equal spacing)

W01-358-8004 - Ribbed neck aluminum bead rings (unequal spacing)

W01-358-7926 - Rubber bellows only
