2H630262 GUOMAT Flange Air Bags Replace FD2380-24RS Contitech Double Convoluted Industrial Air Spring Supplier

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2H630262

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	Negotiable
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Spring Material:	Natural Rubber And Steel	Other Name:	Air Suspension Shock Absorber
Warranty:	12 Months	Packing:	Neutral Packing
Quality:	100% Tested	Type:	Double Convoluted Air Spring With Flange Ring
Connection Type:	Flange	Working Medium:	Air
Highlight:	GUOMAT flange air spring , double convoluted industrial air bag , FD2380-24RS air spring replacement

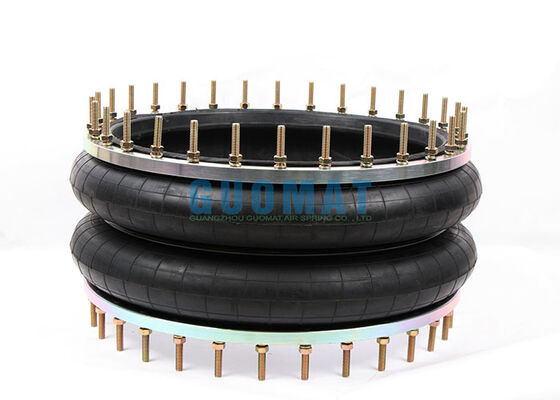

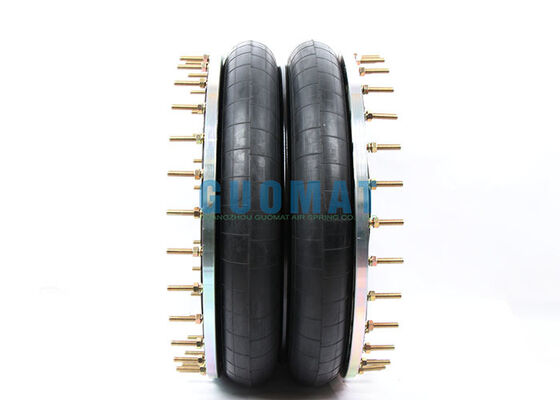

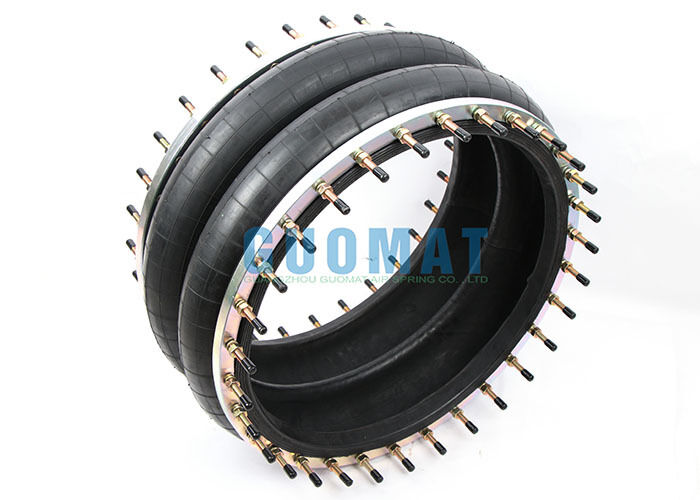

2H630262 GUOMAT Flange Air Bags

The GUOMAT 2H630262 Double Convoluted Air Spring is designed as a reliable replacement for Contitech FD2380-24RS, widely used in industrial vibration isolation systems. Manufactured with high-quality rubber and reinforced steel components, this air bag ensures excellent load capacity, durability, and long service life under demanding working conditions.

Product Specifications

Brand: GUOMAT

Model: 2H630262

Material: Rubber and Steel

Warranty: 1 Year

Application: Industrial Machine

Cross Reference Numbers

Manufacturer: Continental

Part Numbers: 20886342, FD2380-24RS, FD 2380-24RS, FD 2380-24 RS, FD 2380-24 RS UNF

Technical Data

Flange diameter: 23.62"

Bolt: 24pcs X 3/8-24UNF

Center distance between bolts: 21.97"

Max outer diameter: 26.18"

Max height: 12.4"

Min height: 3.4"

Vibration Isolation - Dynamic Characteristic Values

Pressure P (bar)	40	60	80	100	120	Vol V(I)
Force (Load) Ibf	14400	21100	28500	35700	43400	3760
Spring Rate Ibf/in.	3870	5330	6900	8400	10000	-
Natural Frequency f0 (Hz)	1.6	1.6	1.5	1.5	1.5	-

Pneumatic Application - Static Characteristic Values

Pressure P (bar)	40	60	80	100	120	Vol V(I)
Height H(in.) 100	13300	20000	26900	33800	40800	4000
Height H(in.) 90	14500	21800	29200	36700	44200	3600
Height H(in.) 80	15400	23200	31000	39300	46800	3200
Height H(in.) 70	16200	24500	32700	41000	49200	2800
Height H(in.) 60	17000	25500	34000	42600	51200	2400
Height H(in.) 50	17600	26400	35200	44100	52800	2000
