579-913-510 Goodyear Rubber Bellows 1B6-833 Single Convoluted Type Air Spring Complete Parts

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Goodyear
Certification:	ISO/TS16949, ISO9001
Model Number:	1B6-833

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C,D/A,D/P,Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	Goodyear 1B6-833	Spring Material:	Natural Rubber
Air Spring Type:	Single Cylinder	Material:	Rubber And Steel
Warranty:	1 Year	Model Name:	Goodyear Air Spring
MOQ:	5pcs	Keywords:	Air Suspension Shock Absorber
Highlight:	Goodyear Air Spring 1B6-833 , Rubber Bellows Single Convoluted , Air Spring Complete Parts

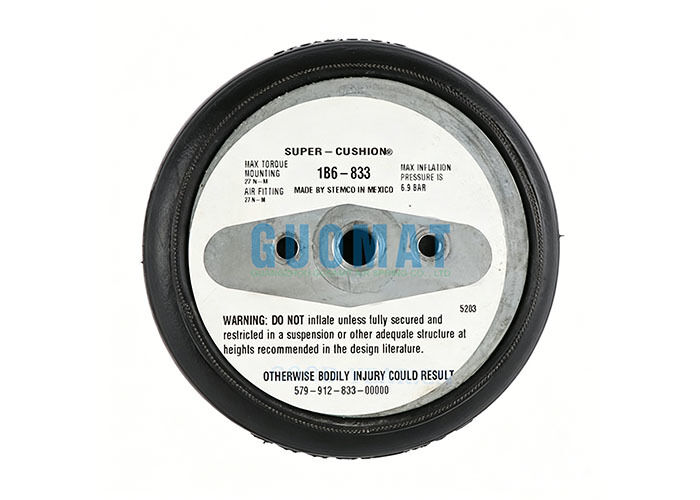

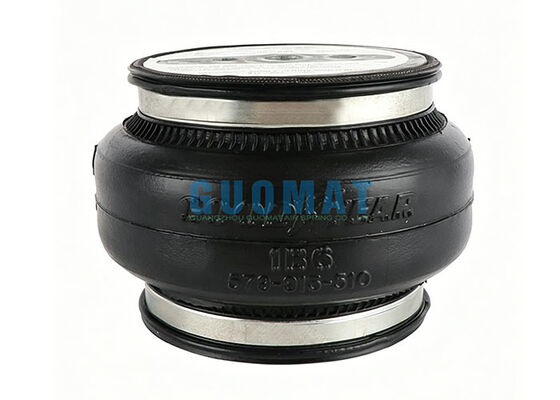

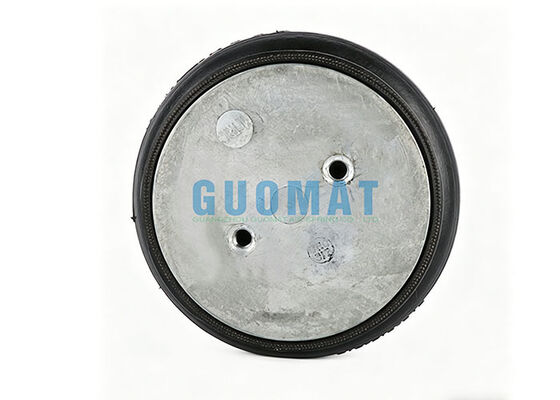

579-913-510 Goodyear Rubber Bellows 1B6-833 Single Convoluted Type Air Spring Complete Parts

Product Overview

Original Goodyear rubber bellows designed as a complete replacement air spring assembly. This single convoluted type air spring meets OEM specifications and provides reliable performance for industrial applications.

Product Specifications

Manufacturer Details

Original Manufacturer	GOODYEAR
Original Part Numbers	1B6-833, 1B 6-833, 1B6 833, 1B6833
Bellows Numbers	579-913-510, 579 913 510, 579913510

Technical Dimensions

MAH (Maximum Assembly Height)	115 mm
SH (Stroke Height)	105 mm
DH (Design Height)	90 mm
MIH (Minimum Installed Height)	50 mm
ND (Nominal Diameter)	150 mm
MAD (Maximum Assembly Diameter)	165 mm

Compatible Replacements

ContiTech: Fs 70-7 (2681015000), FS 70-7 1/4 M8, FS 70-7 G14 M8, FS 70-7 C1 G1/4, FS 70-7 CI G1/4 M8, FS 70-7CI/FS70-7C1/FS707C1, FS 70-7/FS70-7/FS707
Firestone: W01-M58-6155/W01 M58 6155/WO1M586155, Style 131
Enidine: YM-FS 70-7-0160/YMFS 70-7-0160/YMFS70-7-0160, YM-FS 70-7 CI G1/4 M8, Yl-FS 70-7-731/YIFS 70-7-731/YIFS70-7-731, Yl-FS 70-7 CI1/4NPT 3/8-16UNC
Phoenix: SP1B 05/SP1B05
B osch: 822419002
Festo: EB-165-65/EB165 65/EB16565
Weforma: WBE 200-E1/WBE200-E1/WBE200E1
GUOMAT: 1B7070

Air Bellows Cross Reference Chart

FIRESTONE	PIRELLI CF GOMMA	DUNLOP SPRINGRIDE	CONTITECH	PHOENIX	GOODYEAR
16	T16		FS50-5		1B5
131	T131		FS70-7	SP1B05	1B6
116	T116	S08100	FS120-9	1B07	1B8
			FS200-10	SP1B12-1	1B9
19	T19	S12101	FS330-11		1B12
19-.75			FS330-14	SP1B22	1B22
113			FS530-11	SP1B34	1B14
268(25)				SP2B05R	2B6
26	T26	S08200	FD120-17	2B07	2B8
20-2	T20	S09200	FD200-22/FD200-25		2B10
22-1.5		S12280	FD330-30		2B12
21	T21BR		FD530-22	SP2B34R	2B14
352	T322	S12301	FT330-29		3B12
313&333	T321		FT530-32		3B14
