FS 330-11 467 Contitech Rubber Air Bags 64594 Single Convoluted Style Air Spring With Bolts

FS 330-11 467 Contitech Rubber Air Bags 64594 Single Convoluted Style Air Spring With Bolts

  • FS 330-11 467 Contitech Rubber Air Bags 64594 Single Convoluted Style Air Spring With Bolts
  • FS 330-11 467 Contitech Rubber Air Bags 64594 Single Convoluted Style Air Spring With Bolts
FS 330-11 467 Contitech Rubber Air Bags 64594 Single Convoluted Style Air Spring With Bolts
Product Details:
Place of Origin: Guangzhou,China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 1B330-11
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: USD49.9-59.9/PC
Packaging Details: Strong Carton Box or as Customers Requirement
Delivery Time: 3-7 Working Days
Payment Terms: L/C,T/T,Western Union Or Others
Supply Ability: 1000PCS/Week
Contact Now
Detailed Product Description
Product: Industrial Air Spring Bottom Plate Hole/Stud: 3/8-16UNC
HS Code: 8708809000 Type: Gas-Filled
Spring Material: Rubber And Iron Stroke: 2.4''-6.8''
Convolutions: 1 Cross Number: Firestone W01-358-6994
Highlight:

Contitech rubber air spring

,

single convoluted air bag

,

industrial air spring with bolts

FS 330-11 467 Contitech Rubber Air Bags 64594 Single Convoluted Style Air Spring With Bolts
High-quality single convoluted style air spring designed for industrial applications, complete with mounting bolts for easy installation.
Product Specifications
Brand GUOMAT
Model 1B330-11
Material Rubber and Steel
Warranty 12 Months

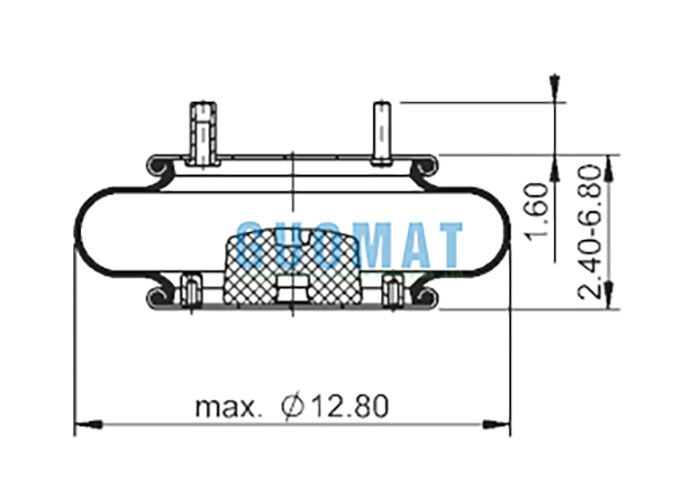

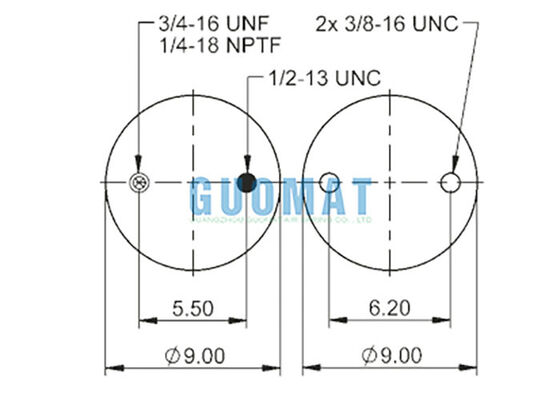

Technical Dimensions
Parameter Measurement
Top Cover Plate Diameter 9.00"
Bottom Cover Plate Diameter 9.00"
Screw Center Distance 5.50"
Distance Gas Hole Between Nut Together
Gas Hole 3/4-16UNF, 1/4-18NPTF
Screw (Nut) Tooth 1/2-13UNC
Threaded Hole 2X3/8-16UNC
Rubber Bellows MAX Diameter 12.80"
The Stroke 2.40"-6.80"
Torque Specifications
1/4-18NPTF: max. 22 lb'ft
3/8-16UNC: max. 20 lb'ft
3/4-16UNC: max. 50 lb'ft
OEM Numbers & Cross References
  • Contitech: FS330-11 467, FS 330-11 467, 64594
  • Firestone Style: 19, W01-358-6994, W01 358 6994, W013586994
  • Goodyear: 1B12-322, 1B 12-322, 578913301, 578 91 3 301, 578-91-3-301
  • FleetPride: AS6994
  • Taurus: 6374
  • Triangle: AS-4467
  • TRP: AS69940
  • Automann: SP1B22A-6994
  • Brake&Wheel: M3527
