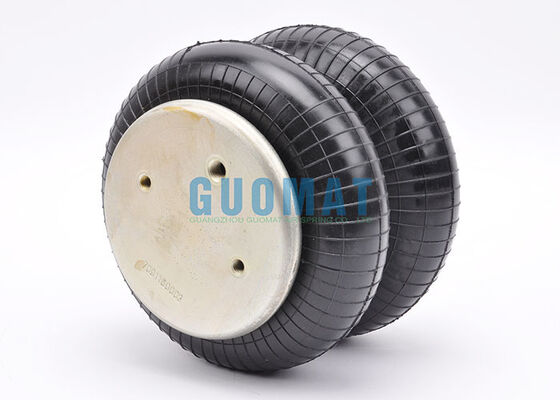

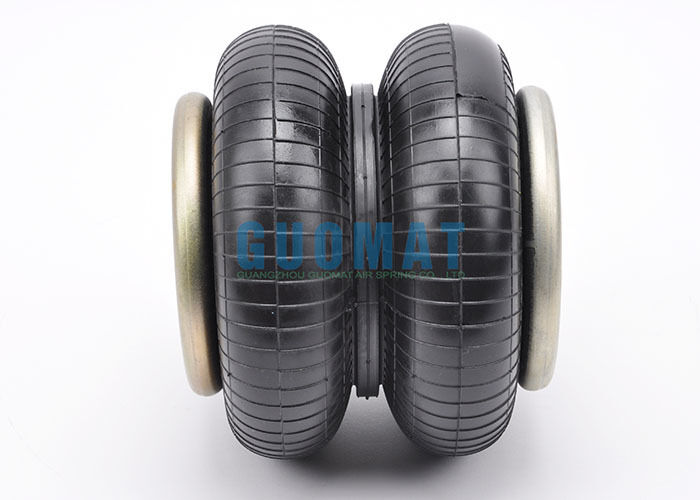

FD 110-15 76 Contitech Air Bellows Vibration Isolator 2B6-535 Goodyear Industrial Air Spring

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B110-15

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$59.9-69.9/pc
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C,D/A,D/P,Western Union,D/P
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Structure:	Double Convoluted	Quality:	100 % Tested
OEM NO.:	Contitech FD 110-15 76	Trademark:	GUOMAT
Supply Ability:	1000PCS/Week	After-sales Service:	12 Months
Type:	Gas-Filled	Goodyear:	2B6-535
Highlight:	Contitech air spring vibration isolator , Goodyear industrial air spring , FD 110-15 76 air bellow

FD 110-15 76 Contitech Air Bellows Vibration Isolator 2B6-535 Goodyear Industrial Air Spring

High-performance industrial air spring designed for vibration isolation and suspension applications, compatible with multiple manufacturer models.

Product Specifications

Brand: GUOMAT

Model Number: 2B110-15

Cross-Reference Compatibility

This air spring replaces the following models:

Contitech: 66094, FD110-15 766, FD 110-15 766, FD110-15 766 66094, FD 110-15 766 66094
Goodyear: 2B6-535, 2B 6-535
Goodyear Flex No.: 579923515, 579 92 3 515, 579-92-3-515
Triangle: AS-4766
Aotomann: 2B06RD-C766
Load Air: P10-754-U

Technical Specifications

Top Cover Plate Diameter	5.50"
Screw Center Distance of Top Cover Plate	2.75"
Bottom Cover Plate Diameter	5.50"
Screw Center Distance of Bottom Cover Plate	2.75"
Top Cover Plate Screw (Nut) Tooth	2X3/8-16UNC
Bottom Cover Plate Screw (Nut) Tooth	2X3/8-16UNC
Air Hole	1/4-18NPTF
Rubber Bellow Max. Diameter	8.0"
Minimum Height	2.6"
Maximum Height	9.1"

Additional Double Convoluted Models

Contitech Number	Order Number	Cross-Reference	Manufacturer
FD 70-13 796	66660	Firestone W01-358-6761	Lippert 156425
FD 70-13 918	73310	Firestone W01-358-7025
FD 70-15 733	64730		MAC 2380 Z1-0
FD 70-15 738	64735	Firestone W21-760-6781	MAC 2380 Z1 1/4
FD 70-15 740	64737		MAC 2380 Z1 3/8
FD 70-15 742(4ply)7	64739		MAC 2380 Z43
FD 70-15 744(4ply)	64741		MAC 2380 Z41
FD 70-17 820	67700		MAC 2380 Z1
FD 110-15 734	64731		MAC 2380 Z2-0
FD 110-15 735	64732		MAC 2380 Z5
FD 110-15 737	64734		MAC 2380 Z9
FD 110-15 739	64736		MAC 2380 Z2 1/4
FD 110-15 741	64738		MAC 2380 Z2 3/8
FD 110-15 743(4ply)	64740		MAC 2380 Z44
FD 110-15 745(4ply)	64742		MAC 2380 Z42
FD 110-15 746(4ply)	64743		MAC 2380 Z45
FD 110-15 758	65391	Firestone W21-760-6401
FD 110-15 763	66092	Firestone W21-760-6873
FD 110-15 766	66094	Goodyear 2B6-535	Load Air P10-754-U
FD 110-17A 775	67667	Firestone W01-358-7659 Goodyear 2B7-548	Hendrickson 5079
FD 110-17A 789	67553	Firestone W01-358-7505	Hendrickson 1347
