1B5330 GUOMAT Rubber Air Bellows Factory 1B12-300 Goodyear Industrial Air Spring Holland 90557226

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1B5330

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	$49.9/pc-$59.9/pc
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C,D/A,D/P,Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Max Diameter:	325mm	Plate Diameter:	231mm
Working Stroke:	55mm~160mm	Quality:	100% Tested
Manufacturer:	GUOMAT	Warranty:	1 Year
Operation:	Gas-Filled	Firestone:	W01-358-7008
Highlight:	Goodyear industrial air spring , GUOMAT rubber air bellows , Holland 90557226 air spring

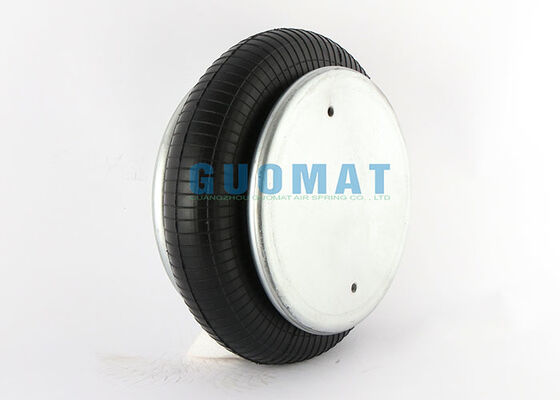

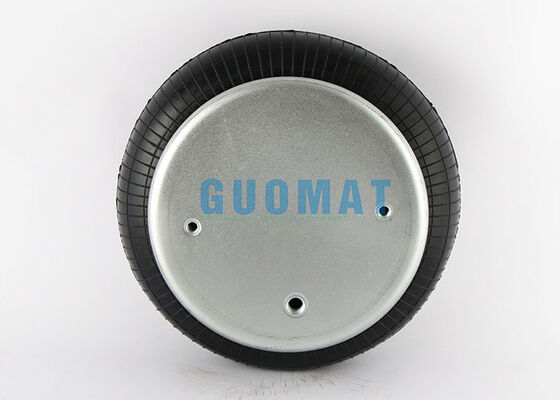

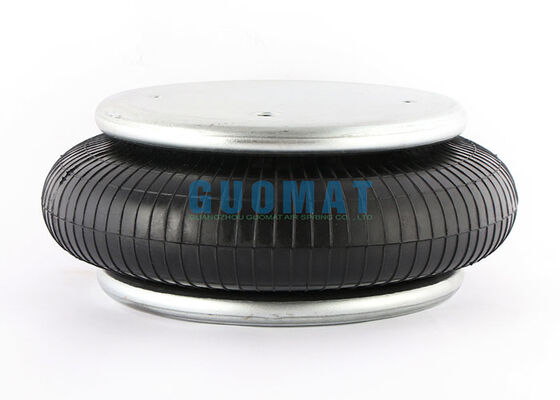

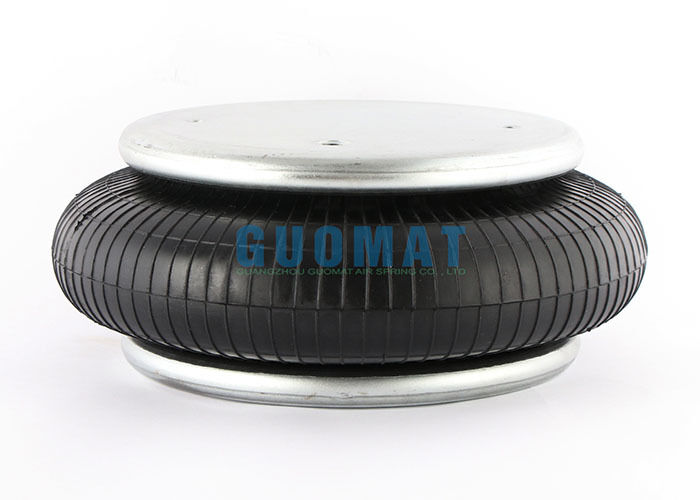

1B5330 GUOMAT Rubber Air Bellows

Industrial air spring designed for heavy-duty applications with superior vibration isolation and durability.

Product Specifications

GUOMAT Part Number	1B5330
Material	Rubber
Warranty	12 Months
Screw Center Distance (Top Cover Plate)	157.5mm
Screw Center Distance (Bottom Cover Plate)	157.5mm
Top Cover Plate Diameter	231mm
Bottom Cover Plate Diameter	231mm
Working Stroke	MAX 160mm to MIN 55mm
Maximum Height	160mm
Minimum Height	55mm
Compression Height	105mm

Cross-Reference Part Numbers

Firestone: W01-358-7008, W01 358 7008, W013587008
Contitech: FS330-11 474, FS 330-11 474
Goodyear: 1B12-300, 1B 12-300, 1B12-313, 1B 12-313
Triangle: 6374/4474
Holland Neway: 90557226

Industrial Air Spring Advantages

Excellent Vibration Isolation: Significantly reduces vibration transmission to machine frames and floors, improving workplace stability and reducing structural stress.
Improved Grinding Efficiency: Stable vibration control maintains consistent grinding movement, enhancing sample uniformity and grinding precision.
Longer Equipment Service Life: Reduces impact loads and mechanical fatigue, protecting motors, bearings, and structural components from premature wear.
Adjustable Load Support: Automatically adapts to different equipment weights and vibration frequencies, providing flexible support for various grinding applications.
Lower Noise Levels: Elastic air chamber design absorbs shock and reduces operational noise, creating a quieter working environment.
