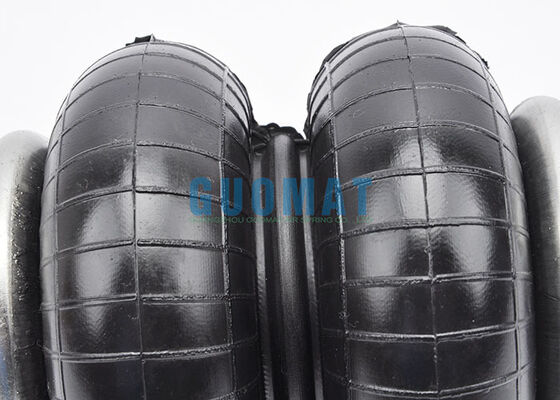

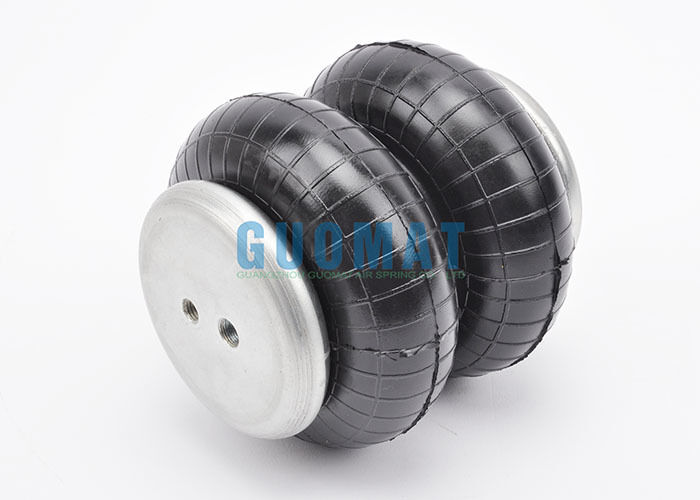

FD 70-13 918 Contitech Rubber Air Bellows W01-358-7025 Firestone Industrial Air Bag for Sprayer Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B7025

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$59.9-69.9/pc
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C,D/A,D/P,Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Warranty:	12 Months	Brand:	GUOMAT
Type:	Double Convoluted	Sample:	Available
Contitech:	FD 70-13 918	Color:	Black
Firestone:	W01-358-7025	Quality:	Good Quality
Highlight:	Contitech rubber air bellows , Firestone industrial air bag , sprayer machine air spring

FD 70-13 918 Contitech Rubber Air Bellows W01-358-7025

Firestone Industrial Air Bag for Sprayer Machine

Product Overview

GUOMAT air springs are engineered for agricultural sprayers, designed to automatically maintain spray boom level while providing essential cushioning and obstacle avoidance capabilities.

Product Specifications

Brand: GUOMAT

Model Number: 2B7025

Cross-Reference Part Numbers

Contitech Order Number: 73310
Contitech Part Numbers: FD70-13 918, FD 70-13 918
Firestone Part Numbers: W013587025, W01 358 7025, W01-358-7025

Technical Parameters

Specification	Measurement
Top Cover Plate Diameter	4.21"
Screw Center Distance of Top Cover Plate	1.75"
Bottom Cover Plate Diameter	4.21"
Screw Center Distance of Bottom Cover Plate	1.75"
Air Hole	1/4-18NPTF

Contitech Double Convoluted Air Spring Reference

Contitech Number	Order Number	Cross Reference	OEM Number
FD70-13 796	66660	Firestone W01-358-6761	Lippert 156425
FD70-13 918	73310	Firestone W01-358-7025
FD70-13 733	64730		MAC 2380 Z1-0
FD70-13 738	64735	Firestone W21-760-6781	MAC 2380 Z1 1/4
FD70-15 740	64737		MAC 2380 Z1 3/8
FD70-15 742(4ply)	64739		MAC 2380 Z43
FD70-15 744(4ply)	64741		MAC 2380 Z41
FD70-17 820	67700		MAC 2380 Z1
FD110-15 734	64731		MAC 2380 Z2-0
FD110-15 735	64732		MAC 2380 Z5
FD110-15 737	64734		MAC 2380 Z9
FD110-15 739	64736		MAC 2380 Z2 1/4
FD110-15 741	64738		MAC 2380 Z2 3/8
FD110-15 743(4ply)	64740		MAC 2380 Z44
FD110-15 745(4ply)	64742		MAC 2380 Z42
FD110-15 746(4ply)	64743		MAC 2380 Z45
FD110-15 758	65391	Firestone W21-760-6401
FD110-15 763	66092	Firestone W21-760-6873
FD110-15 766	66094	Goodyear 2B6-535	Load Air P10-754-U
FD110-17A 775	67667	Firestone W01-358-7659 Goodyear 2B7-548	Hendrickson 5079
FD110-17A 789	67553	Firestone W01-358-7505	Hendrickson 1347
FD110-17A 804	68160		Hendrickson 5079
FD110-19 815	67602		MAC 2380 Z2
FD 120-20 509	64601	Firestone W01-358-7325 Goodyear 2B8-550	American Carrier 8003-006 Hendrickson S-14395 Loadguard SC2751 Mack 227QS32 57QK1113 SAF Holland 57007325 Sauer P10-754 Watson & Chalin AS-0030
