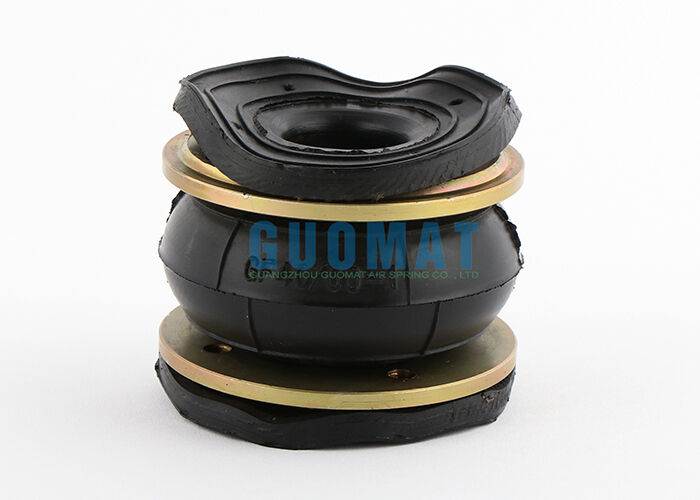

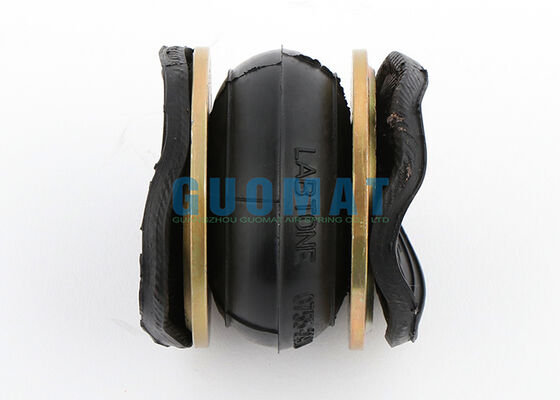

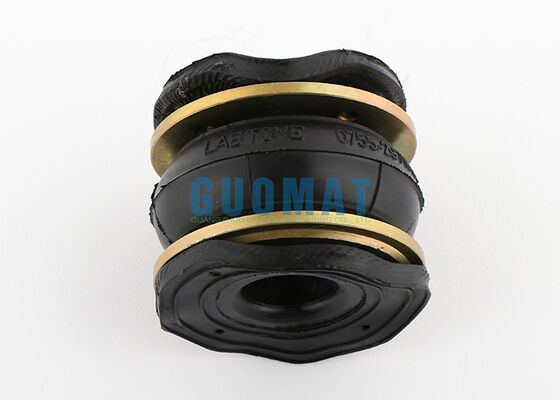

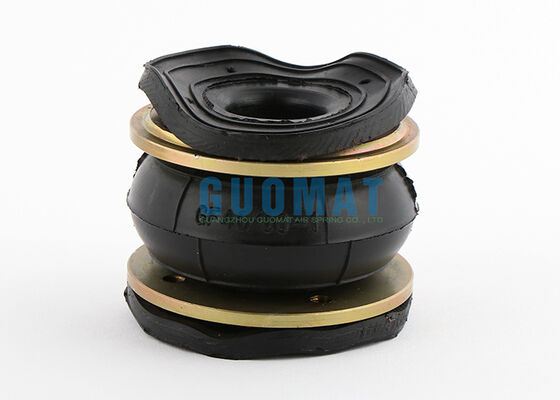

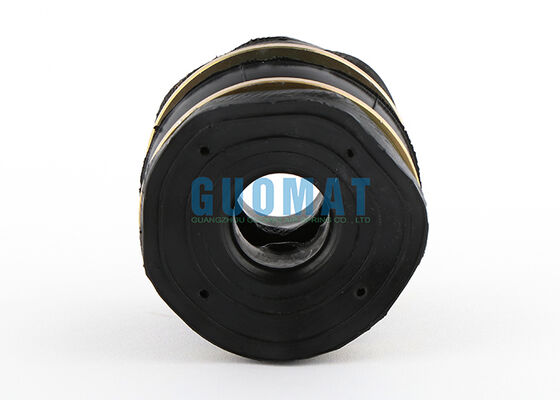

GUOMAT GF40/60-1 Rubber Air Spring Cross FS22-3 DI CR Contitech Industrial Air Bellows For Vibrating Screen

GUOMAT GF40/60-1 Rubber Air Spring Cross FS22-3 DI CR Contitech Industrial Air Bellows For Vibrating Screen

GUOMAT GF40/60-1 Rubber Air Spring Cross FS22-3 DI CR Contitech Industrial Air Bellows For Vibrating Screen
GUOMAT GF40/60-1 Rubber Air Spring Cross FS22-3 DI CR Contitech Industrial Air Bellows For Vibrating Screen
GUOMAT GF40/60-1 Rubber Air Spring Cross FS22-3 DI CR Contitech Industrial Air Bellows For Vibrating Screen
Product Details:
Place of Origin: Britain
Brand Name: NORGREN
Certification: ISO/Ts16949:2009
Model Number: GF40/60-1
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: $129.9-$139.9/PC
Packaging Details: Carton packaging or packaging according to customer requirements
Delivery Time: 5-8 Working Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 10,000 Per Week
Contact Now
Detailed Product Description
Function: Reduce Shock Quality: 100% Tested
Condition: Brand New Other Name: Rubber Air Bellow
After-sales Service: 1 Year Type: Gas-Filled
Material: Natural Rubber Weight: 1KG
Highlight:

GUOMAT GF40 rubber air spring

,

industrial air bellows for vibrating screen

,

Contitech air spring with warranty

GUOMAT GF40/60-1 Rubber Air Spring Cross FS22-3 DI CR Contitech Industrial Air Bellows For Vibrating Screen
High-performance industrial air spring designed for vibrating screen applications, manufactured from durable natural rubber with 12-month warranty protection.
Product Specifications
Item Name: Industrial Air Spring
Model Number: GF40/60-1
Material: Natural Rubber
Warranty: 12 Months
Package: Carton
Packing Weight: 1KG
Packing Size: 24*24*24(cm)
Replacement Part Numbers
  • Continental ContiTech: FS 22-3 Dl G1/4 CR
  • Continental ContiTech: FS 22-3 DI G1/4 CR M6
  • Continental ContiTech: FS 22-3 DI CR G1/4
  • Continental ContiTech: FS 22-3 D CR G1/4 M6
  • Continental ContiTech: FS 22-3 DI CR 69342
  • Continental ContiTech Bellow: FS 22-3/FS 22 3/FS223
  • Firestone No: WO1-R58-4079/W01 R58 4079/W01R584079
  • Firestone Style: 2¾"x1/2¾"x1/2¾x1
  • Dunlop FR: 2¾"x1 SP2745
  • Norgren: PM/31021/PM 31021/PM31021
  • Nominal 0(inch)xconvolutions: 2¾"x1/2¾"x1/2¾x1
  • Festo: EB-80-20/EB 80 20/EB8020
Contitech FS 22-3 DI Air Spring Technical Data
Top Cover Plate: Diameter 78mm, 2*M6 threaded holes, 36mm center distance between bolts, G1/4 vent specification
Bottom Cover Plate: Diameter 78mm, 2*M6 threaded holes, 36mm center distance between bolts
Maximum Outer Diameter: 80mm
Maximum Height: 70mm
Minimum Height: 50mm
Vibration Isolation - Dynamic Characteristic Values
Pressure P (bar) 3 4 5 6 7 8 Vol V(I)
Force(Load) (KN) 0.9 1.2 1.5 1.7 2.0 2.3 0.0084
Spring Rate (N/mm) 84 103 123 142 162 180 -
Natural Frequency f0 (Hz) 4.9 4.7 4.6 4.5 4.5 4.4 -
Pneumatic Application - Static Characteristic Values
Pressure P (bar) 3 4 5 6 7 8 Vol V(I)
Height H(mm) / Force F(kN) 0.84 1.11 1.39 1.39 1.68 1.97 0.084
Height H(mm) / Force F(kN) 1.41 1.78 2.16 2.16 2.50 2.91 0.052
GUOMAT GF40/60-1 Rubber Air Spring Cross FS22-3 DI CR Contitech Industrial Air Bellows For Vibrating Screen 0 GUOMAT GF40/60-1 Rubber Air Spring Cross FS22-3 DI CR Contitech Industrial Air Bellows For Vibrating Screen 1
