Original Norgren Air Bellow PM/31062 6" Diameter Heavy Duty Industrial Air Bag For Conveyor System

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	NORGREN
Certification:	ISO/TS16949:2009
Model Number:	PM/31062

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	Negotiable
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T,Western Union,L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Product Item:	Industrial Air Spring	Warranty:	12 Months
Material:	Rubber + Aluminum	Installation:	Direct Installation
Color:	Black	Part Number:	PM/31062
Medium:	Compressed Air	Port Size:	G1/2
Highlight:	Norgren air bellow 6 inch diameter , industrial air spring for conveyor system , heavy duty air bag with warranty

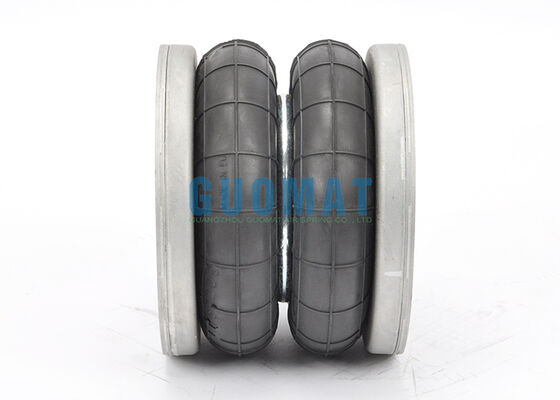

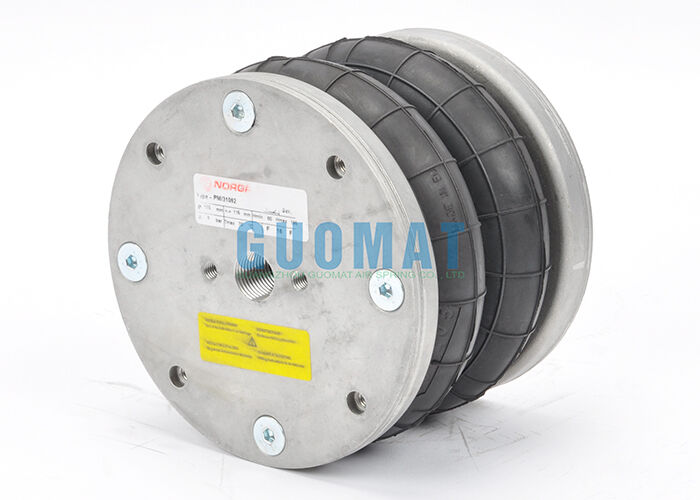

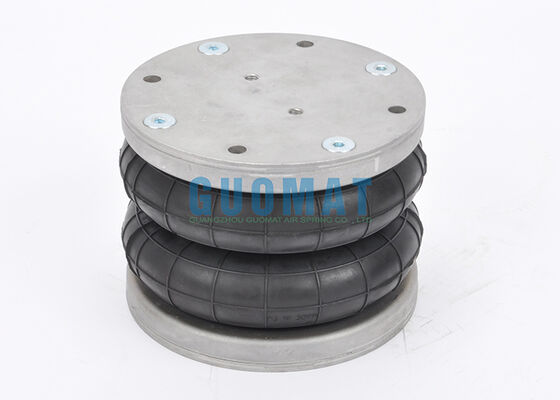

Original Norgren Air Bellow PM/31062

6" Diameter Heavy Duty Industrial Air Bag For Conveyor System

Product Specifications

Brand: NORGREN

Model: PM/31062

Nominal Diameter: 6"

Main Material: Natural Rubber

Warranty: 1 Year

Number of Convolutions: 2

Connection Method: Flange Connection with Cover Plate

Color: Black

Package: Strong Carton

Technical Specifications

Cover Plate Details

Top Cover Plate: Diameter 152.5mm, 4 threaded holes (4 x M8), center bolt distance 127mm, vent specification G1/2

Bottom Cover Plate: Diameter 152.5mm, 4 threaded holes (4 x M8), center bolt distance 127mm

Maximum Outer Diameter: 178mm

Maximum Height: 195mm

Minimum Height: 80mm

Performance Data

Force and Spring Rate Characteristics

Pressure P (bar)	3	4	5	6	7	8	Vol V(I)
Force (Load) KN	2.6	3.5	4.5	5.5	6.5	7.6	2
Spring Rate N/cm	675	855	1035	1215	1395	1570
Natural Frequency f0 Hz	2.5	2.4	2.4	2.3	2.3	2.3

Height vs Pressure Performance

Pressure P (bar)	3	4	5	6	7	8	Vol V(I)
Height H 160mm	2.6	3.5	4.5	5.5	6.5	7.6	2
Height H 140mm	3.3	4.5	5.6	6.8	8.1	9.3	1.7
Height H 120mm	3.9	5.2	6.6	8.0	9.4	10.8	1.5
Height H 100mm	4.6	6.2	7.8	9.4	11.1	12.8	1.2

Norgren Standard Models

Model	Nominal Ø (inch) x Convolutions	Maximum Stroke (mm)	Port Size
PM/31021	2 3/4" x 1	20	G1/4
PM/31022	2 3/4" x 2	45	G1/4
PM/31023	2 3/4" x 3	65	G1/4
PM/31041	4 1/2" x 1	40	G3/8
PM/31042	4 1/2" x 2	80	G3/8
PM/31061	6" x 1	55	G1/2
PM/31062	6" x 2	115	G1/2
PM/31081	8" x 1	95	G3/4
PM/31082	8" x 2	185	G3/4
PM/31091	9 1/4" x 1	105	G3/4
PM/31092	9 1/4" x 2	230	G3/4
PM/31121	12" x 1	105	G3/4
PM/31122	12" x 2	215	G3/4
PM/31123	12" x 3	315	G3/4
