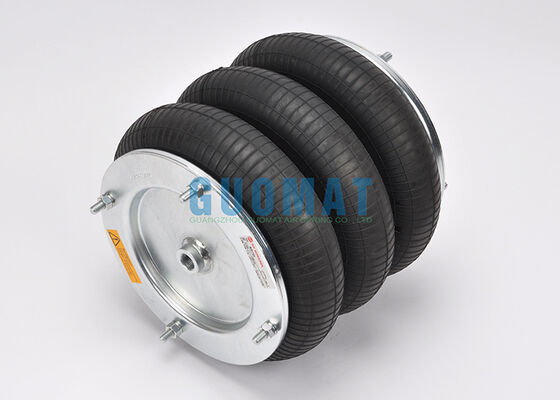

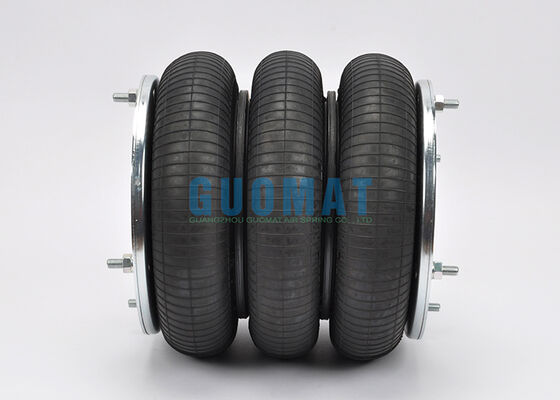

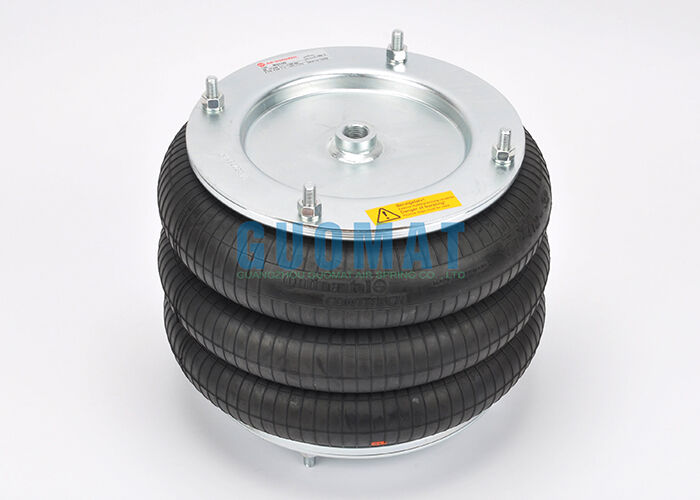

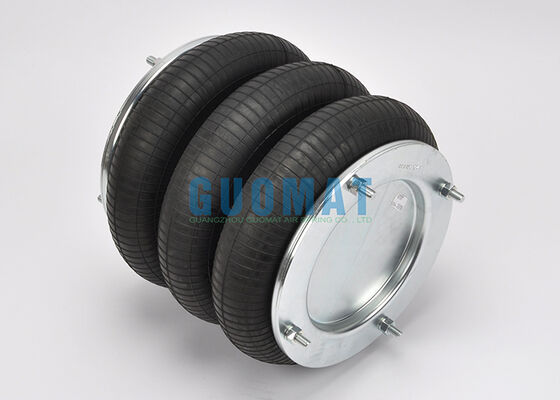

M/31123 Norgren Industrial Air Bellow 330 mm Stroke Length Triple Convoluted Air Spring

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	NORGRN
Certification:	ISO/TS16949:2009
Model Number:	M/31123

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	Negotiable
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Product Name:	Air Suspension Spring	Material:	Rubber + Steel
Warranty:	12 Months	Quality:	100% Tested
Package:	Standard Packing Or Customized	Nominal Diameter:	12''
Brand:	IMI Norgren	Model Number:	M/31123
Highlight:	Norgren industrial air spring , 330mm stroke air bellow , triple convoluted air spring

M/31123 Norgren Industrial Air Bellow

330 mm Stroke Length Triple Convoluted Air Spring for industrial air suspension systems

Product Overview

Model: M/31123 Type: Air Spring/Bellow Brand: IMI Norgren Origin: Germany Warranty: 1 Year

Technical Specifications

Operating Medium	Compressed Air
Operating Temperature	-30°C to 50°C (-22°F to 122°F)
Operating Pressure	0 to 8 bar (0 to 116 psi)
Port Size	G1/2
Nominal Diameter	12 inches
Number of Convolutions	3
Stroke Length	330 mm
Operation Type	Single Acting
Theoretical Force (at 6 bar)	40,600 N
Body Material	Nitrile Rubber (NBR)
Weight	6.9 kg
Product Range	M/31000 Series

Physical Dimensions

Top Cover Plate: 260mm diameter with 4x M10 threaded holes, 232mm bolt center distance

Bottom Cover Plate: 260mm diameter with 4x M10 threaded holes, 232mm bolt center distance

Maximum Outer Diameter: 325mm

Height Range: 100mm (minimum) to 430mm (maximum)

Pressure-Height Performance Data

Height H (mm)	3 bar	4 bar	5 bar	6 bar	7 bar	8 bar	Vol V(I)
350	9.8	13.2	16.7	20.5	24.3	28.4	17.2
300	12.3	16.5	20.8	25.3	29.9	34.7	15.3
250	14.4	19.3	24.2	29.4	34.5	39.9	12.9
200	16.4	22.0	27.7	33.5	39.4	45.6	10.0
150	18.8	25.1	31.4	37.8	44.2	50.7	7.2
