FS412-10 DS Contitech Flange Air Spring 12''X1 Pneumatic Air Bellows For Power Equipment

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	Contitech
Certification:	ISO/TS16949:2009
Model Number:	FS412-10

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$199.9-299.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T,Western Union,L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Project Name:	Industrial Air Spring	Material:	Rubber+Steel
Warranty:	1 Year	Packing Size:	242424(cm)
Shock Absorber Type:	Compressed Air	Contitech:	FS 412-10 DS
Machine:	For Power Equipment	Connection Type:	Flange Connection
Highlight:	Contitech flange air spring , 12x1 pneumatic air bellows , industrial air spring power equipment

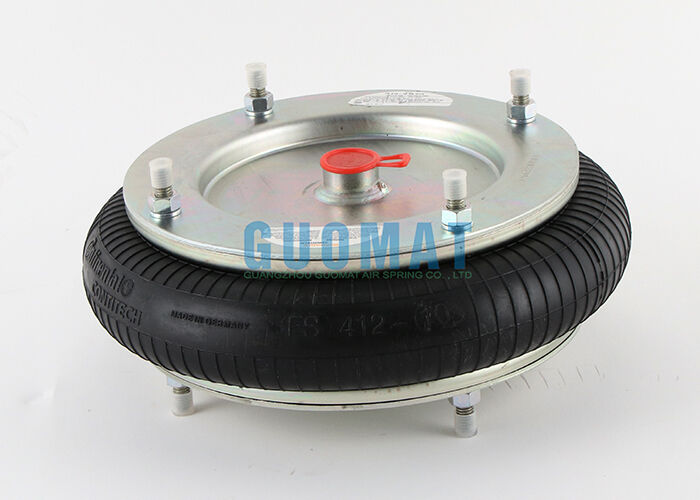

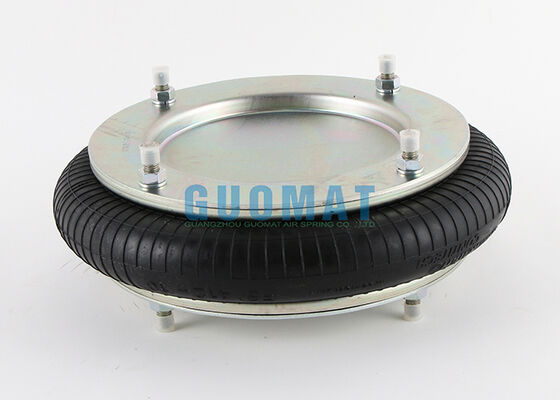

FS412-10 DS Contitech Flange Air Spring 12"×1 Pneumatic Air Bellows

Product Overview

Type	Air Spring
Brand	Contitech
Part Number	FS412-10 DS
Warranty	12 Months
Color	Black
Place of Origin	Guangzhou, China
Certification	ISO/TS16949:2009
Material	Rubber + Steel
Packing	Neutral Packing
MOQ	1 Pcs
Quality	High-Quality
Position	Industrial Machine

Contitech Part Numbers

Continental ContiTech: FS 412-10 DS 67962
Continental ContiTech: FS 412-10 1/2 M10
Continental ContiTech: FS 412-10 G1/2 M10
Continental ContiTech: FS 412-10 DS G1/2
Continental ContiTech: FS 412-10 DS G1/2 M10
Continental ContiTech: FS 412-10 DS/FS 412-10DS/FS 412-10DS
Continental ContiTech Bellow: FS 412-10/FS412-10/FS41210

Cross-Reference Part Numbers

Firestone: WO1-R58-4060 / W01 R58 4060 / W01R584060
Firestone Style: 12"×1 / 12"×1 / 12×1
Dunlop FR: 12"×1 SP1540
Dunlop UK (Pneuride): PNP 30552 0120 / PNP305520120
Norgren: M/31121 / M 31121 / M31121
Nominal (inch)×convolutions: 12"×1 / 12"×1 / 12×1
Parker: 12"×1 9109044
GUOMAT: 2B12X1T

Technical Specifications

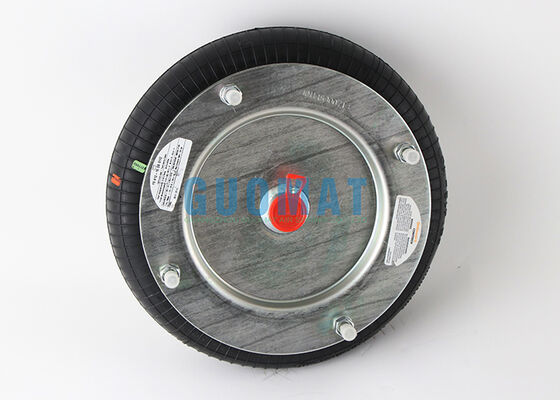

Top Cover Plate: Diameter 260 mm with four M10 threaded holes, center-to-center bolt spacing 232 mm. Air port: G1/2.

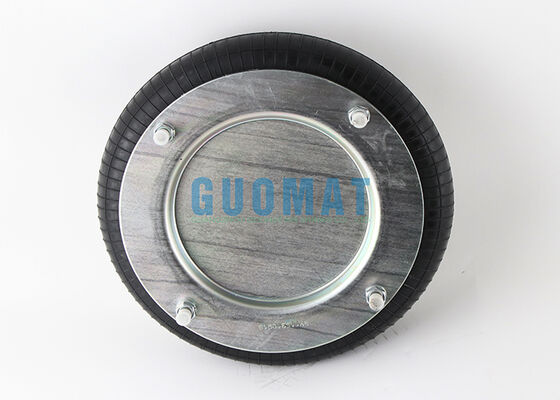

Bottom Cover Plate: Diameter 260 mm with four M10 threaded holes, center-to-center bolt spacing 232 mm.

Dimensions: Maximum outer diameter 330 mm; Maximum height 150 mm; Minimum height 50 mm.

Applications in Power Equipment

Air bellows are essential components in power equipment, providing vibration isolation, shock absorption, and stable load support during continuous operation. They are widely used in generators, transformers, power control systems, and heavy electrical machinery to reduce vibration transmission from motors and rotating components, protecting sensitive equipment from mechanical stress.

Compared to traditional metal springs, pneumatic air bellows offer superior cushioning performance with lower operating noise. They effectively minimize structural vibration, enhance equipment stability, and extend service life in high-load conditions. The adjustable air pressure maintains consistent performance even when equipment weight or working conditions change.

Industrial air bellows are particularly suitable for power equipment requiring precision operation, smooth movement, and long-term reliability. The reinforced rubber construction provides excellent fatigue resistance and durability, making them ideal for modern electrical and energy industry applications.
