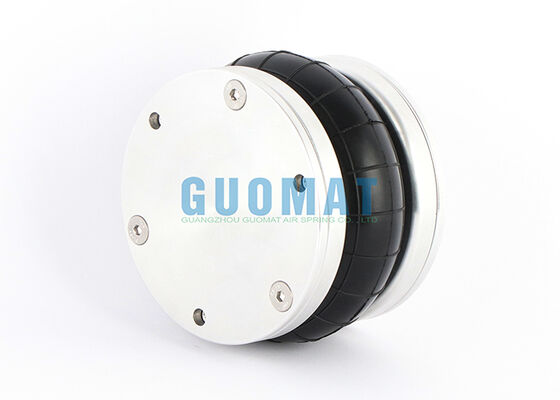

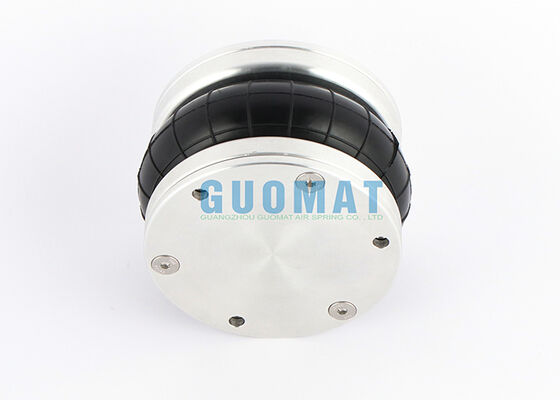

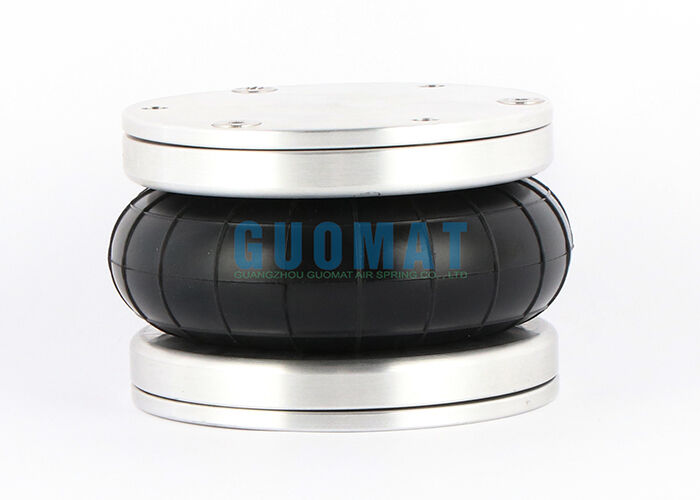

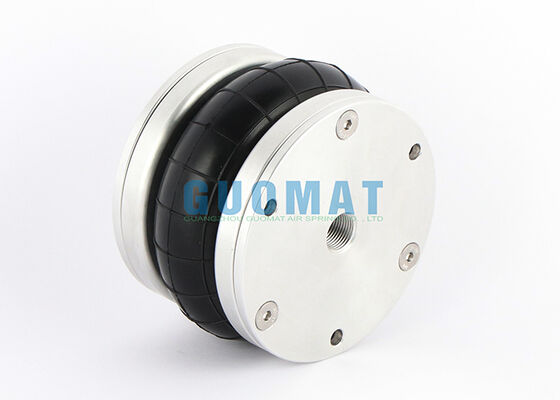

4.5X1 Rubber Bellows FS44-5 DI Contitech Sealed Rubber Air Spring 9109400 Parker

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B4.5X1P

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$89.9/pc-$99.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T,Western Union,L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Spring Material:	Natural Rubber	Warranty:	12 Months Warranty
Color:	Black	Package:	Brown Carton Box
HS Code:	8708809000	Rubber Bellows:	4''1/2x1
Contitech:	FS 44-5	Convoluted:	Single Convoluted
Highlight:	Rubber air spring bellows , Contitech sealed air spring , Parker rubber air spring

4.5X1 Rubber Bellows FS44-5 DI Contitech Sealed Rubber Air Spring 9109400 Parker

Product Specifications

Brand: GUOMAT

Model: 1B4.5x1P

Item: Rubber Air Spring

Main Materials: Rubber and Aluminum

Warranty Period: 1 year

Color: Black Rubber Parts and Silver Cover Plate

Connection Method: Screw Connection

Replacement Part Numbers

Firestone W01-R58-4050

Firestone W01 R58 4050

Firestone W01R584050

Contitech FS44-5DI

Contitech FS 44-5DI

Contitech FS 44-5 DI

Dunlop SP2334

Dunlop SP 2334

Norgren PM/31041

Norgren PM 31041

Norgren PM31041

Parker 9109400

Benefits of Air Spring Technology

Enhanced Vibration Isolation: Industrial air springs significantly reduce vibration transfer between machinery and supporting structures, helping improve production accuracy and workplace comfort.
Equipment Protection: By absorbing impact loads and operating shocks, the air spring protects motors, bearings, frames, and other critical components from premature wear.
Adjustable Load Support: Air pressure can be adjusted according to application requirements, providing flexible load management and precise machine positioning.
Reduced Downtime: The robust rubber bellows design helps minimize maintenance requirements and contributes to longer service intervals.

GUOMAT Flange Air Spring Cross-Reference

Type	Firestone	Dunlop Pneuride	Dunlop Springride	Contitech	Norgren	Parker
4 1/2" x 1	W01R584050	4 1/2" x 1	SP2334	FS 44-5 DI	PM/31041	9109400
4 1/2" x 2	W01R584051	4 1/2" x 2	SP2441	FD 44-10 DI	PM/31042	9109401
4 1/2" x 3-E	W01R584035	4 1/2" x 3	SP2895	FT 44-15 DI	PM/31043	9109402
6" x 1	W01R584078	6" x 1	SP2913	FS 76-7 DI	PM/31061	9109004A
6" x 1	W01R584052	6" x 1	SP1536	FS 76-7 DS	M/31061	9109004
6" x 2	W01R584070	6" x 2	SP2917	FD 76-14 DI	PM/31062	9109001A
6" x 2	W01R584053	6" x 2	SP1482	FD 76-14 DS	M/31062	9109001
6" x 3		6" x 3	SP2923	FT 76-20 DI	PM/31063	9109007A
6" x 3	W01R584095	6" x 3	SP2861	FT 76-20 DS	M/31063	9109007
8" x 1	W01R584054	8" x 1	SP1537	FS 138-8 DS	M/31081	9109014
8" x 2	W01R584055	8" x 2	SP1490	FD 138-18 DS	M/31082	9109011
8" x 3	W01R584056	8" x 3	SP2863	FT 138-26 DS	M/31083	9109017
10" x 1	W01R584057	10" x 1	SP2523	FS 210-10 DS	M/31101	9109024
10" x 2	W01R584058	10" x 2	SP1538	FD 210-22 DS	M/31102	9109021
10" x 3	W01R584059	10" x 3	SP1539	FT 210-32 DS	M/31103	9109031
12" x 1	W01R584060	12" x 1	SP1540	FS 412-10 DS	M/31121	9109044
12" x 2	W01R584061	12" x 2	SP1541	FD 412-22 DS	M/31122	9109041
12" x 2-E	W01R584039	12" x 2 Extend.
12" x 3	W01R584062	12" x 3	SP1542	FT 412-32 DS	M/31123	9109051
14" 1/2 x 1	W01R584063	14" 1/2 x 1	SP1543	FS 614-13 DS	M/31141	9109064
14" 1/2 x 2	W01R584064	14" 1/2 x 2	SP1556	FD 614-26 DS	M/31142	9109061
14" 1/2 x 3	W01R584065	14" 1/2 x 3	SP1558	FT 614-36 DS	M/31143	9109069
16" x 1	W01R584066	16" x 1		FS 816-15 DS	M/31161	9109026
16" x 2	W01R584067	16" x 2	SP1557	FD 816-30 DS	M/31162	9109171
16" x 3	W01R584068	16" x 3	SP2141	FT 816-40 DS	M/31163	9109177
21" 1/2 x 2		21" 1/2 x 2	SP1408		M/31212	9109153
26" x 2		26" x 2	SP2342		M/31262	9109159
