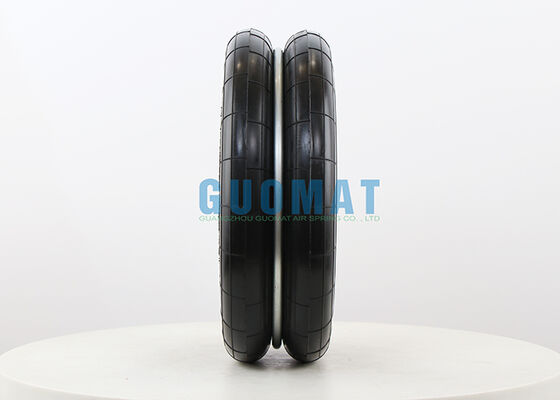

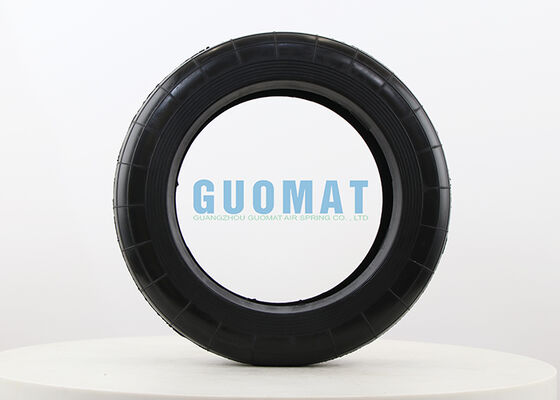

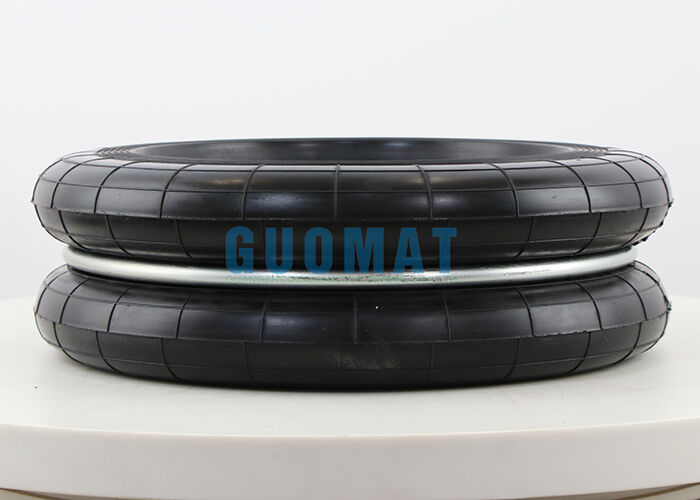

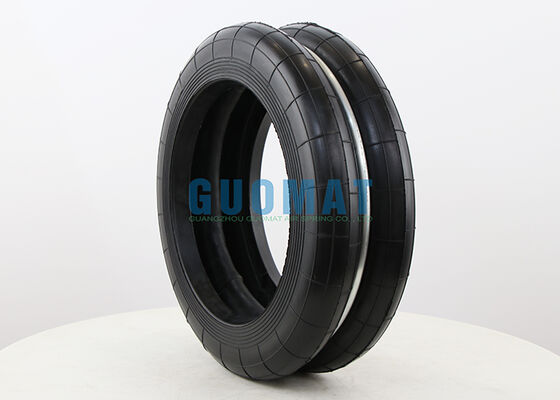

98mm Design Height Punch Press Rubber Air Spring Cross YOKOHAMA S-300-2/S-300-2R

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	F-300-2

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$299.9/pc-$399.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T,Western Union,L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Material:	Rubber	Warranty:	12 Months Warranty
Color:	Black	Package:	Brown Carton Box
Sample:	Available	Application:	Punching Equipment
YOKOHAMA:	S-300-2	Function:	Shock Absorption
Highlight:	98mm punch press rubber air spring , YOKOHAMA S-300-2 rubber air spring , cross type rubber air spring

98mm Design Height Punch Press Rubber Air Spring Cross YOKOHAMA S-300-2/S-300-2R

The press air spring is a key component for vibration isolation and cushioning in stamping equipment. It is made of high-quality natural rubber and high-strength cord, providing elastic support through compressed air. It effectively absorbs the impact load during press operation, reduces vibration and noise, protects the mold and machine structure, while improving stamping precision. Suitable for various types of mechanical presses, pneumatic presses, and press machines.

Product Specifications

Brand: GUOMAT

Model Number: F-300-2

Main Material: Rubber

Warranty Period: One year

Compatible Replacements

GUOMAT F-300-2 can replace YOKOHAMA S-300-2

GUOMAT F-300-2 can replace YOKOHAMA S 300 2

GUOMAT F-300-2 can replace YOKOHAMA S300-2

GUOMAT F-300-2 can replace YOKOHAMA S3002

GUOMAT F-300-2 can replace YOKOHAMA S-300-2R

GUOMAT F-300-2 can replace YOKOHAMA S 300 2R

GUOMAT F-300-2 can replace YOKOHAMA S300-2R

GUOMAT F-300-2 can replace YOKOHAMA S3002R

Technical Data

Design Height: 98mm

Max. Height: 158mm

Min. Height: 53mm

Common Maximum Travel: ±40mm

Compression Max. Outside Diameter: 360mm

Effective Area: 710cm²

Volume: 7.4L

Load: 34.7KN

Dynamic Spring Constant: 745n/mm

Natural Vibration Frequency: 2.3Hz

Maximum Internal Pressure: 0.88MPa

Internal Pressure Failure: 3.9-4.9MPa

GUOMAT F TYPE AIR SPRING CATALOGUE

GUOMAT NO.	Reference No.	Design High(mm)	Maximum High(mm)	Minimum Height(mm)	Commonly Maximum Stroke(mm)
F-600-1	S-600-1	72	122	40	±30
F-600-2	S-600-2	102	172	57	±45
F-600-3	S-600-3	160	270	90	±68
F-600-4	S-600-4	218	363	123	±90
F-600-5	S-600-5	276	456	156	±113
F-550-2	S-550-2	102	172	50	±45
F-550-3	S-550-3	160	270	90	±68
F-500-2	S-500-2	102	172	57	±45
F-500-3	S-500-3	160	270	90	±68
F-500-4	S-500-4	218	363	123	±90
F-500-5	S-500-5	276	456	156	±113
F-450-1	S-450-1	72	117	40	±30
F-450-2	S-450-2	102	172	57	±45
F-450-3	S-450-3	160	270	90	±68
F-450-4	S-450-4	218	363	123	±90
F-450-5	S-450-5	276	456	156	±113
F-400-2	S-400-2	102	167	57	±45
F-400-3	S-400-3	160	260	90	±68
F-400-4	S-400-4	218	348	123	±90
F-400-5	S-400-5	276	435	156	±113
F-350-1	S-350-1	72	117	40	±30
F-350-2	S-350-2	102	160	55	±42
F-350-3	S-350-3	160	250	85	±65
F-350-4	S-350-4	218	336	118	±85
F-300-1	S-300-1	72	117	40	±30
F-300-2	S-300-2	98	158	53	±40
F-300-3	S-300-3	152	242	82	±60
F-300-4	S-300-4	206	326	111	±80
F-240-4	S-240-4	206	316	111	±80
F-240-3	S-240-3	152	232	82	±60
F-240-2	S-240-2	98	148	53	±40
F-240-1	S-240-1	72	110	40	±30
F-220-4	S-220-4	206	311	111	±80
F-220-3	S-220-3	152	232	82	±60
F-220-2	S-220-2	98	148	53	±40
F-200-2	S-200-2	98	148	53	±35
F-200-3	S-200-3	152	232	82	±53
F-200-4	S-200-4	206	311	111	±70
F-160-1	S-160-1	72	102	40	±25
F-160-2	S-160-2	98	148	53	±35
F-160-3	S-160-3	152	227	82	±53
F-160-4	S-160-4	206	306	111	±70
F-120-4	S-120-4	206	306	111	±70
F-120-3	S-120-3	152	227	82	±53
F-120-2	S-120-2	98	148	53	±35
