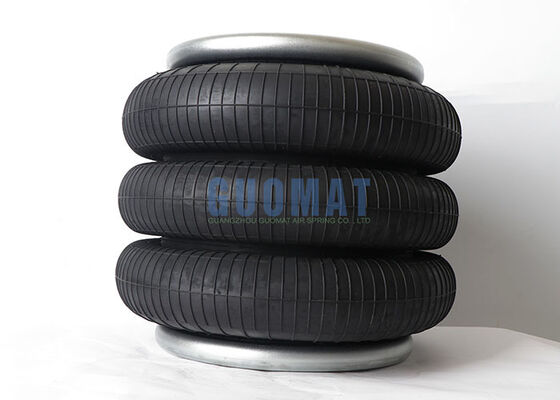

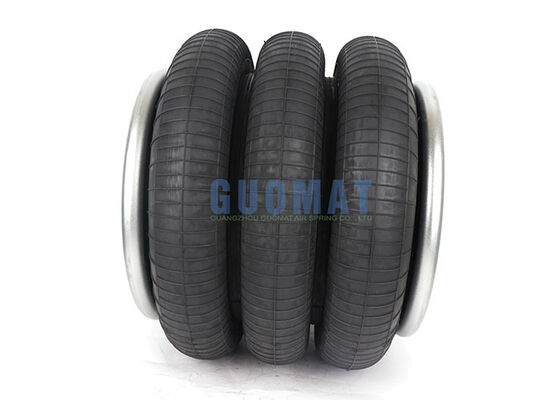

FD 330-22 364 Contitech Rubber Air Spring 2B12-313 Goodyear Pneumatic Vibration Isolator

FD 330-22 364 Contitech Rubber Air Spring  2B12-313 Goodyear Pneumatic Vibration Isolator

Product Description
Item Name: Rubber Air Spring

GUOMAT NO.: 3B7808

Warranty: 1 Year

Material: Rubber+Steel

Replacement Part Number

Technical Data

Overall length: 356 mm

Height/dimension: 282 mm

Center threaded port: 1/4 NPT (tapered pipe thread)

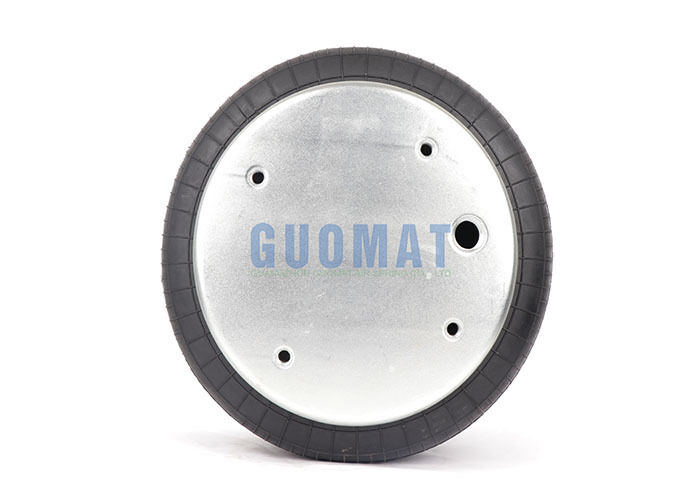

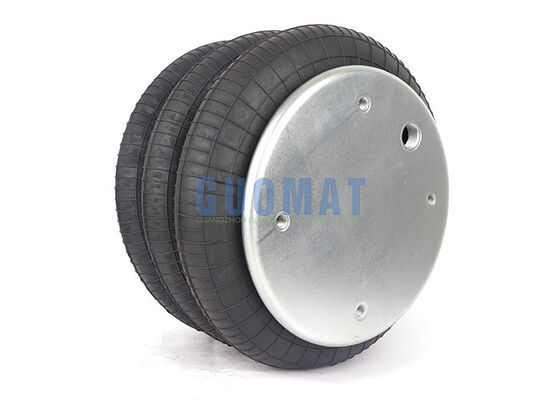

Four threaded holes: 3/8-16 UNC

Width: 289 mm

Repeated dimension: 158.8 mm (likely hole spacing or symmetric offset)

Rubber Air Spring for Die Cushion

A Rubber Air Spring for a Die Cushion is a pneumatic elastomer spring used in stamping and press machines to provide controlled counterforce during deep drawing, forming, and blank-holding operations. It is commonly used as a replacement for conventional coil springs, rubber pads, or hydraulic cushions because it provides a more uniform force throughout its stroke.

How it works

A rubber air spring consists of reinforced rubber bellows filled with compressed air. As the press operates, the air spring compresses and generates a nearly constant force over a wide range of travel, helping:

1.Control material flow during forming
2.Reduce wrinkling and tearing
3.Absorb shock loads
4.Improve part quality and tool life
