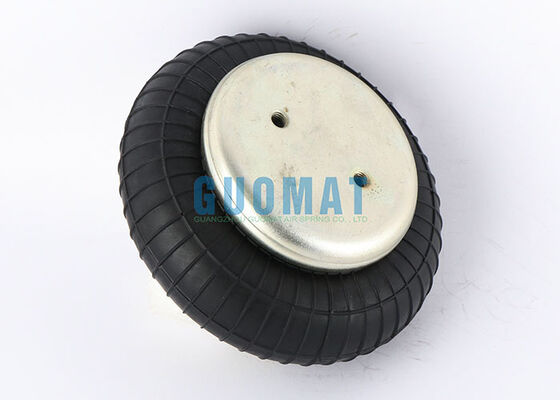

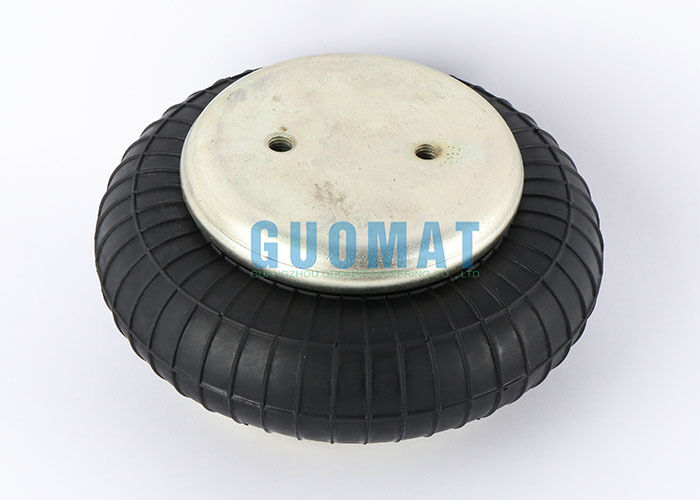

FS70-7 ContiTech Air Spring Replacement EB-165-65 Festo Pneumatic Vibration Isolator

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B7070

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD49.9-59.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C,T/T,Western Union Or Others
Supply Ability:	1000 PCS/Week

Contact Now

Detailed Product Description

Item Name:	Industrial Rubber Air Bag	Material:	Rubber And Steel
OEM:	Yes	Warranty:	12 Months
Convoluted:	Single Convoluted Type	OEM No.:	Contitech FS70-7
Type:	Convoluted Air Spring	Other Name:	Rubber Air Bellows
Highlight:	ContiTech air spring replacement , Festo pneumatic vibration isolator , rubber air spring with warranty

FS70-7 ContiTech Air Spring Replacement EB-165-65 Festo Pneumatic Vibration Isolator

High-performance rubber air spring designed as a direct replacement for ContiTech FS70-7 series and Festo EB-165-65 pneumatic vibration isolators.

Product Specifications

Item Name	Rubber Air Spring
Model No.	1B7070
Brand	GUOMAT
Warranty	12 Months
Type	Convoluted Air Spring
Service Offered	OEM
Suspension System	Air Spring Suspension
Applications	For Industrial Machine
Material	Imported Natural Rubber
Operation	Gas-filled
Package	Standard Packing Or Customized

Corresponding OEM Numbers

ContiTech: FS 70-72681015000, FS 70-7 CI 2681015000, FS 70-71/4 M8, FS 70-7 G1/4 M8, FS 70-7 CI G1/4, FS 70-7 CI G1/4 M8, FS 70-7 CI/FS70-7CI/FS707CI, FS 70-7/ FS70-7/FS707

Firestone: W01-M58-6155/W01 M58 6155/WO1M586155, Style:131

Enidine: YM-FS 70-7-0160/YM FS 70-7-0160/YMFS70, YM-FS 70-7 CI G1/4 M8, YI-FS 70-7-731/YI FS 70-7-731/YIFS70-7-731, YI-FS 70-7 CI1/4NPT 3/8-16UNC, YI-1B6-833/YI1B6 833/YI1B6833

Goodyear: 1B6-833/1B6 833/1B6833, Flex No.:579-913-510/579 913 510/579913

Other Brands: Phoenix: SP1 B 05/SP1B05, B-osch:822419002, Festo: EB-165-65/EB 165 65/EB16565, Weforma: WBE 200-E1/WBE200-E1/WBE200E1, Vigor: 1B 5002/1B5002, Vigor Bellow: 1B70-7/1B70 7/1B707, VKNTECH:1B 7070/1B7070, VKNTECH Bellow: 1B70-7/1B70 7/1B707, EAA:1E70-7/1E70 7/1E707, EAA Bellow:1E70-7/1E70 7/1E707, HONGLI:JBF100/96-1/JBF100 961/JBF100961, CHENGUANG:150086J-1/150086J1/150086J1, GUOMAT: 1B7070/1B 7070

Technical Specifications

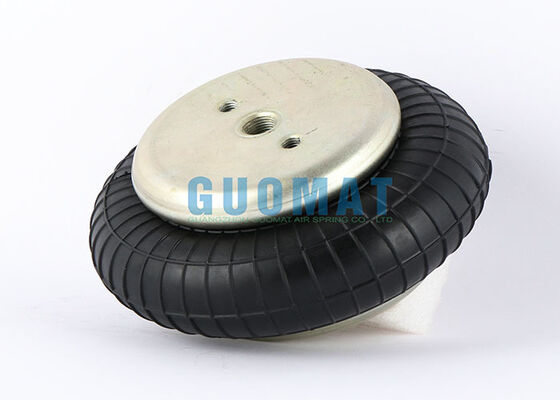

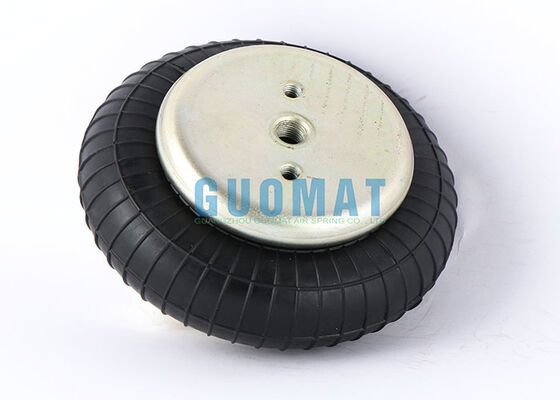

Top Cover Plate: Diameter 105mm, 2x M8 threaded holes, 44.5mm center distance between bolts, G1/4 vent specification
Bottom Cover Plate: Diameter 105mm, 2x M8 threaded holes, 44.5mm center distance between bolts
Dimensions: Maximum outer diameter 165mm, maximum height 115mm, minimum height 50mm

Pressure vs Height Performance Data

Pressure P (bar)	3	4	5	6	7	8	Vol.V(I)
Height H 100mm	2.23	3.09	3.96	4.82	5.74	6.58	1
Height H 90mm	2.66	3.61	4.57	5.55	6.54	7.5	0.9
Height H 80mm	3.05	4.06	5.12	6.17	7.25	8.28	0.8
Height H 70mm	3.38	4.45	5.59	6.7	7.87	8.95	0.69
Height H 60mm	3.63	4.8	6	7.19	8.4	9.51	0.57
