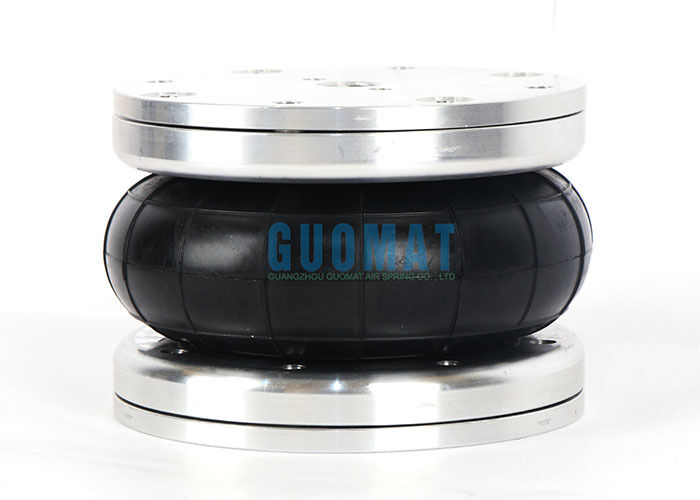

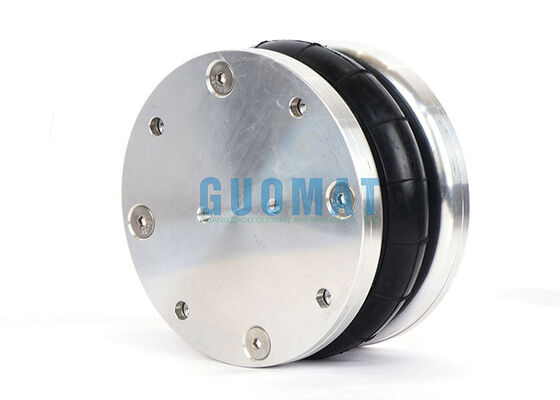

G1/2 Air Hole Contitech Rubber Air Bags FS 76-7 DI CR Pneumatic Spring For Semiconductor Isolation System

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B6X1P

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$99.9-139.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T,Western Union,L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Model Name:	Rubber Air Spring Air Bag	Material:	Rubber Bellow And Aluminum Plate
Brand:	GUOMAT/Customized	Warranty:	12 Months
Color:	Black	Contitech:	FS76-7 DI
Convolutions:	1	Stroke:	110mm-55mm
Highlight:	G1/2 rubber air spring , Contitech pneumatic spring , semiconductor isolation air bag

G1/2 Air Hole Contitech Rubber Air Bags FS 76-7 DI CR Pneumatic Spring

Industrial air bag bellows designed for semiconductor isolation systems, providing reliable vibration isolation and pneumatic spring functionality.

Product Specifications

Product Name	Rubber Air Spring
Description	Industrial Air Bag Air Bellow
GUOMAT	1B6X1P
MOQ	1 PCS
Warranty	12 Months
Material	Rubber + Aluminum
Package	Carton
Payment	L/C T/T West
Port of Shipment	NINGBO, SHANGHAI, TIANJING, GUANGZHOU, SHENZHEN
Shipping	By sea, By air, by DHL Fedex

Compatible Part Numbers

GUOMAT: 1B6X1P
Contitech: FS76-7, FS 76-7, FS76-7 DI, FS 76-7 DI, FS76-7 DI CR, FS 76-7 DI CR, FS 76-7 DI CR G1/2
Firestone: W01R584078, W01 R58 4078, W01-R58-4078, 6X1, 6''X1
Dunlop: SP2913
Norgren: PM/31061, PM 31061, PM31061
Parker: 9109004A

Technical Data

Part Number	1B6X1P
OEM Number	Contitech FS 76-7 DI
Working Temperature	-40°C to +70°C
Failure Testing	≥3 million cycles
Top Cover Plate Diameter	152.5mm
Bottom Cover Plate Diameter	152.5mm
Gas Hole / Air Inlet	G1/2
Rubber Bellows MAX Diameter	175mm
Working Stroke	MAX 110 mm to MIN 55 mm
Top Cover Plate Screw (Nut) Tooth	4XM8X1.25
Bottom Cover Plate Screw (Nut) Tooth	4XM8X1.25
Screw Center Distance of Top Cover Plate	127mm
Screw Center Distance of Bottom Cover Plate	127mm

Vibration Isolation - Dynamic Characteristic Values

Pressure P (bar)	3	4	5	6	7	8	Vol V(I)
Force (Load) (KN)	3.1	4.2	5.3	6.4	7.5	8.7	0.9
Spring Rate (N/cm)	1585	2005	2455	2860	3315	3745
Natural Frequency f0 (Hz)	3.5	3.4	3.4	3.3	3.3	3.3

Pneumatic Application - Static Characteristic Values

Pressure P (bar)	3	4	5	6	7	8	Vol V(I)
Height H (mm) 100	2.3	3.1	4	4.9	5.8	6.8	1
Height H (mm) 90	3.1	4.2	5.3	6.4	7.5	8.7	0.9
Height H (mm) 80	3.8	5.1	6.4	7.8	9.1	10.5	0.7
Height H (mm) 70	4.5	6	7.6	9.1	10.7	12.3	0.6
Height H (mm) 60	5.3	7.1	8.8	10.6	12.4	14.2	0.4
