6" x 2 Air Rubber FD 76-14 DI CR Contitech Double Convoluted Type Air Spring Supplier

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B6X2P

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$99.9-139.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Concoluted:	2	Cross:	Contitech FD76-14 DI
Advantages:	Serviceable	Rubber Bellows:	6''X2
Warranty:	One Year	Flexibility:	Good
Application:	Automotive, Industrial Machinery, Heavy Vehicles	Model Name:	Rubber Air Spring
Highlight:	6x2 Contitech air spring , double convoluted air spring , FD 76-14 DI CR air spring

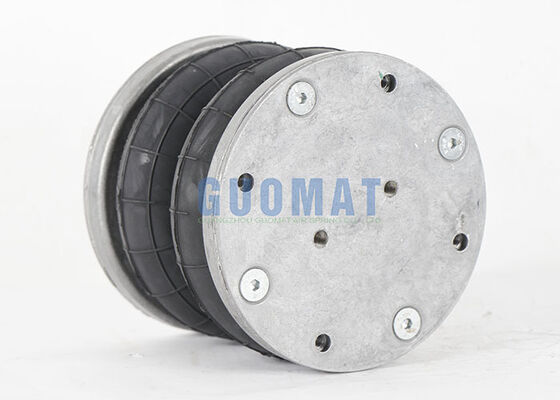

6" x 2 Air Rubber FD 76-14 DI CR Contitech Double Convoluted Type Air Spring

The GUOMAT 2B6X2P Double Convoluted Air Spring is engineered to deliver exceptional vibration isolation, load support, and motion control for a wide range of industrial applications. Featuring a robust double-convoluted rubber bellows design, this air spring combines high force capability with flexible movement, making it an ideal solution for machinery manufacturers, automation integrators, and maintenance professionals seeking reliable air suspension performance.

Product Specifications

GUOMAT NO.	2B6X2P
Type	Rubber Air Spring
Warranty	12 Months
Color	Black
Place of Origin	Guangzhou, China
Certification	ISO/TS16949:2009
Material	Rubber + Aluminum
Packing	Neutral Packing
MOQ	1 Pcs
Quality	High-Quality
Position	For Industrial Machine
Application	Packaging Machine, Printing Machine

OEM Cross Reference Numbers

Continental ContiTech: FD 76-14 1/2 M8
Continental ContiTech: FD 76-14 DI G1/2
Continental ContiTech: FD 76-14 DI G1/2 M8
Continental ContiTech: FD 76-14 DI G1/2 CR
Continental ContiTech: FD 76-14 DI CR G1/2
Continental ContiTech: FD 76-14 DI CR /FD76-14DICR / FD7614DICR
Continental ContiTech Bellow: FD 76-14/FD76-14/FD7614
Firestone No.: W01-R58-4070/W01 R58 4070/W01R584070
Firestone Style: 6"x2
Dunlop FR: 6"x2 SP1646 (COMPOSITE)
Dunlop FR: 6"x2 SP2917 (ALUMINIUM)
Dunlop UK (Pneuride): A 31330 02 01/A313300201
Norgren: PM/31062/PM 31062/PM31062
Nominal 0 (inch) x convolutions: 6" x 2/6"x2/6x2
Parker: 6"x2 9109001A
YS-AIR: YS-160-2VS/YS160 2VS/YS1602VS

Product Features

Double Convoluted Air Spring Design
Excellent Vibration Isolation and Noise Reduction
High Load Capacity with Compact Dimensions
Flexible Stroke and Responsive Motion Control
Durable Reinforced Rubber Construction
Corrosion-Resistant Steel Components
Easy Installation and Low Maintenance
Suitable for Industrial Automation and Pneumatic Systems

Technical Data

Part Number	2B6X2P
OEM Number	Contitech FS 76-14 DI
Working Temperature	-40°C to +70°C
Failure Testing	≥3 millions
Top Cover Plate Diameter	152.5mm
Bottom Cover Plate Diameter	152.5mm
Gas Hole / Air Inlet	G1/2
Rubber Bellows MAX Diameter	178mm
The Working Stroke	MAX 195 mm to MIN 80 mm
Top Cover Plate Screw (Nut) Tooth	4XM8X1.25
Bottom Cover Plate Screw (Nut) Tooth	4XM8X1.25
Screw Center Distance of Top Cover Plate	127mm
Screw Center Distance of Bottom Cover Plate	127mm
