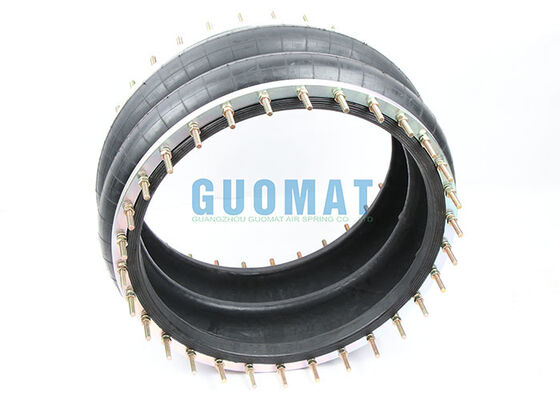

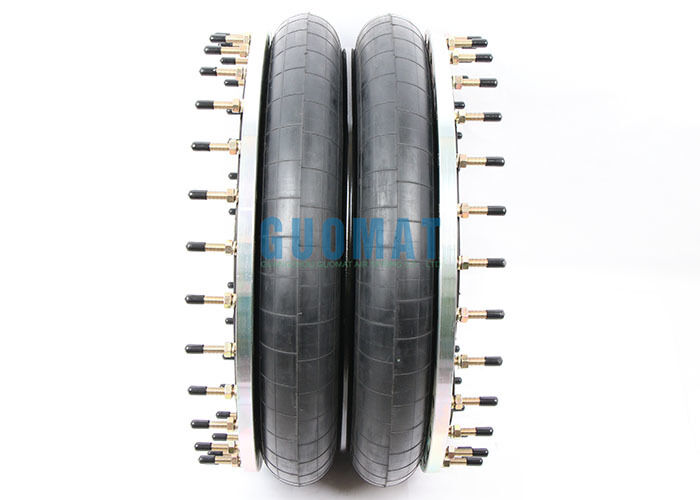

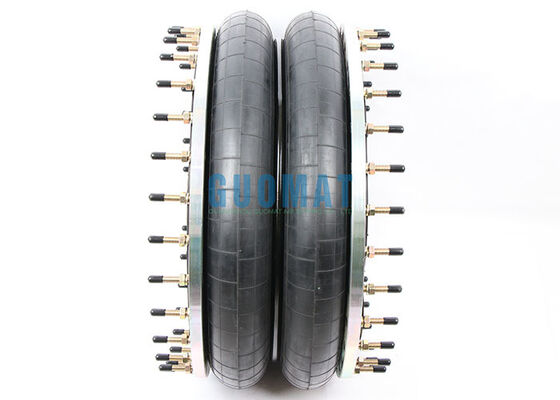

W01-358-7244 Double Convoluted Air Spring 201 Style Air Bellows Suspension

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2H7244

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	Negotiable
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Material:	Rubber	Load Type:	Compression
Bumper Block:	Without	Port:	Huangpu, China
Packing:	Neutral Box Or As Customers' Request	Warranty:	One Year
Working Pressure:	2-8MPa	Firestone:	W01-358-7244
Highlight:	Double Convoluted Air Spring , 201 Style Air Bellows , Rubber Air Spring Suspension

W01-358-7244 Double Convoluted Air Spring 201 Style Air Bellows Suspension

The GUOMAT 2H7244 Rubber Air Spring is a premium-quality double convoluted air bellows designed for industrial vibration isolation, shock absorption, and pneumatic actuation applications. Engineered to replace Firestone W01-358-7244 (Style 28), this air spring delivers reliable load support and excellent dynamic performance in a wide variety of industrial equipment.

Featuring a double convoluted rubber bellows construction, the GUOMAT 2H7244 provides a larger effective area and improved flexibility compared to conventional mechanical springs. The air-filled design allows the spring rate to adjust automatically according to load changes, helping maintain stable operation while reducing transmitted vibration and noise.

Manufactured using high-grade natural rubber reinforced with durable cord fabric, the air spring offers excellent fatigue resistance and long service life. Heavy-duty steel mounting plates provide secure installation and dependable performance even under continuous industrial use.

Product Specifications

Type: Rubber Air Spring

Model: 2H7244

Brand: GUOMAT

Warranty: 1 Year

Material: Rubber + Steel

Style: 28 Style Double Convoluted Air Spring

Alternative Part Numbers

Firestone Style 201

FIRESTONE STYLE: 201
FIRESTONE STYLE: W013587244
FIRESTONE STYLE: W01 358 7244
FIRESTONE STYLE: W01-358-7244

High Strength Bellows with Ribbed Neck Aluminum Bead Rings

W013587244 / W01 358 7244 / W01-358-7244
WO13587244 / WO1 358 7244 / WO1-358-7244

High Strength Bellows - Rubber Bellows Only

W011390201 / W01 139 0201 / W01-139-0201
WO11390201 / WO1 139 0201 / WO1-139-0201

Firestone 28 Style Rubber Air Spring Variants

Part Number	Description
W01-358-7191	Ribbed neck aluminum bead rings (equal spacing)
W01-358-7194	Ribbed neck aluminum bead rings (equal spacing) 1 7/8 b,n,w
W01-358-7192	Ribbed neck aluminum bead rings (equal spacing) 1 1/4 b,n,w
W01-358-7271	Rolled plate assembly, 1/2 blind nut 3/4NPT
W01-358-7925	Rubber bellows only
