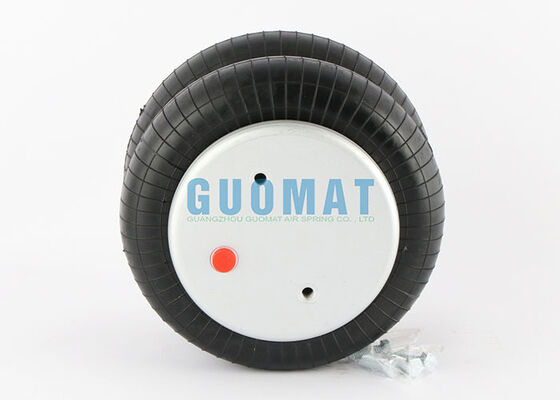

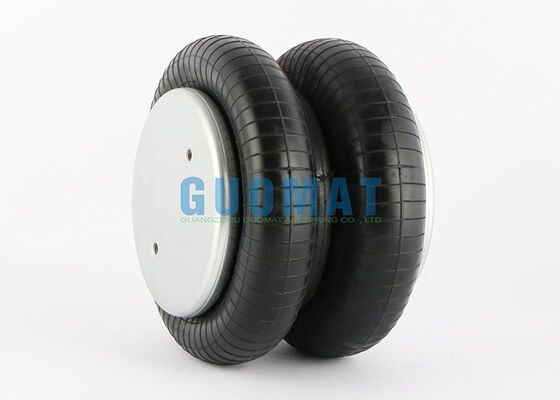

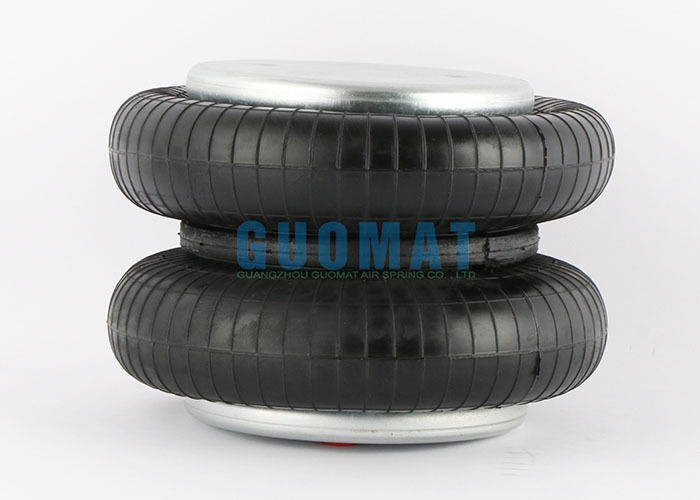

SP2B12R Phoenix Rubber Air Spring 89mm Center Distance Convoluted Vibration Isolation Solutions

Product Details:

Place of Origin:	China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B6282

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	US$59.9-69.9/PC
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	3-7 Working Days
Payment Terms:	L/C,D/A,D/P,Western Union,T/T
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Name:	Rubber Air Spring	Factory Warranty:	12 Months
Bellows Structure:	Double Convoluted	Buffer Block:	Without
Package Size:	242424cm	Mountingtype:	Threaded Mounting
Working Form:	Compression	Phoenix:	SP2B12R
Highlight:	Phoenix Rubber Air Spring 89mm , Rubber Air Spring vibration isolation , Convoluted air spring with warranty

SP2B12R Phoenix Rubber Air Spring 89mm Center Distance Convoluted Vibration Isolation Solutions

GUOMAT 2B6282 is a premium double convoluted rubber air spring designed as a direct replacement for Phoenix SP2B12R. Featuring an 89mm center mounting distance, this air spring provides excellent vibration isolation, shock absorption, and load-carrying performance for a wide range of industrial applications.

Product Specifications

Type: Double Convoluted Air Spring

GUOMAT No.: 2B6282

Replacement: Phoenix SP2B12R

Material: Natural Rubber & High Strength Steel

Application: Vibration Isolation, Industrial Machinery, Pneumatic Equipment, Press Machines, Conveying Systems

Manufactured from high-quality rubber compounds and reinforced cord layers, the 2B6282 offers outstanding durability, flexibility, and resistance to fatigue. Compared with conventional metal springs, air springs effectively reduce noise, minimize vibration transmission, and improve equipment operating stability.

The GUOMAT 2B6282 is widely used in industrial machinery, vibration isolation platforms, packaging equipment, printing machines, textile machinery, and other systems requiring precise load support and vibration control.

Technical Data

Top Cover Plate: Diameter 160mm, 2 M10 threaded holes, center distance 89mm between bolts

Vent Specification: G1/4, center distance between vent and threaded holes 44.5mm

Bottom Cover Plate: Diameter 160mm, 2 M10 threaded holes, center distance 89mm between bolts

Natural Outer Diameter: 255mm

Design Height: 180mm

Maximum Height: 220mm

Minimum Height: 95mm

Key Features

Double convoluted design for higher load capacity
89mm center distance mounting configuration
Excellent vibration and shock isolation performance
Durable rubber construction with reinforced cord layers
Maintenance-free operation
Long service life under continuous industrial use
Easy installation and replacement

Packaging & Shipping

Each GUOMAT 2B6282 air spring is carefully packed to prevent damage during transportation. Standard export cartons and pallet packaging are available according to customer requirements. Products can be shipped worldwide by express, air freight, sea freight, or railway transportation.
