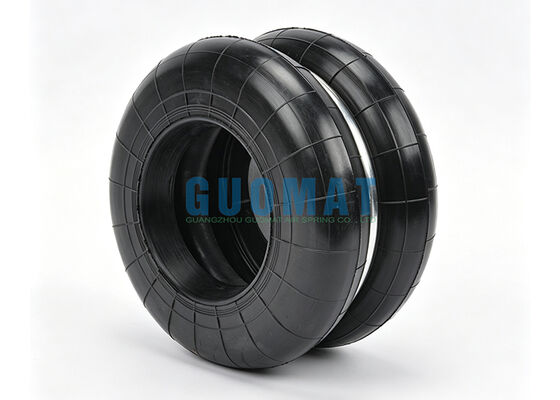

Rubber Air Bellows S-160-2/S-160-2R Double Convoluted Punch Press Airbag With Waist Ring

Product Details:

Place of Origin:	China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	US$229.9-US$249.9/PC
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	3-7 Working Days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Type:	Punch Air Spring	Yokohama:	S-160-2
Steel Hoop:	Yes	Factory Warranty:	1 Year
Convoluted:	Double Convoluted Type	Bumper Block:	Without
Temperature Range:	-40°C To +70°C	Warranty:	12 Months
Highlight:	Rubber Air Bellows double convoluted , Punch Press Airbag with waist ring , Rubber Air Spring S-160-2

Rubber Air Bellows S-160-2/S-160-2R Double Convoluted Punch Press Airbag With Waist Ring

GUOMAT F-160-2 Rubber Air Bellows is a high-performance double convoluted air spring engineered specifically for punch press machines and industrial pressing equipment. This product serves as a direct replacement for YOKOHAMA S-160-2 and S-160-2R air springs, widely utilized as pneumatic cushioning components in punch press air cushion systems.

Product Specifications

GUOMAT NO.: F-160-2
Replacement OEM Number: YOKOHAMA S-160-2 / S-160-2R
Product Type: Double Convoluted Rubber Air Bellows
Application: Punch Press Machine Air Cushion System

The punch press airbag features a reinforced rubber bellows structure with a steel waist ring, delivering exceptional flexibility, vibration isolation, and impact absorption performance. During punching operations, compressed air within the air spring generates stable supporting force to balance slide weight, reduce mechanical shock, and enhance press machine working stability.

Compared to traditional mechanical springs, GUOMAT punch press air springs provide smoother force output, adjustable pressure, reduced noise levels, and extended service life. These components are ideal for various industrial applications requiring reliable cushioning and vibration control solutions.

GUOMAT F Type Air Spring Technical Specifications

GUOMAT NO.	Reference No.	Design Height (mm)	Maximum Height (mm)	Minimum Height (mm)	Commonly Maximum Stroke (mm)
F-160-1	S-160-1	72	102	40	±25
F-160-2	S-160-2	98	148	53	±35
F-160-3	S-160-3	152	227	82	±53
F-160-4	S-160-4	206	306	111	±70

Advantages of Using Air Springs on Punch Press Machines

Improve Pressing Stability: The air spring provides adjustable pneumatic support force, helping maintain stable movement of the press slide and improving stamping accuracy.
Reduce Mechanical Vibration: During high-speed punching operations, large impact forces are generated. The rubber air bellows absorbs vibration energy and protects machine components.
Lower Maintenance Costs: Compared with traditional metal springs, air springs have fewer mechanical wear points and can reduce downtime caused by spring fatigue or failure.
Extend Machine Service Life: By reducing shock transmission, punch press air springs help protect frames, dies, and mechanical transmission components.
