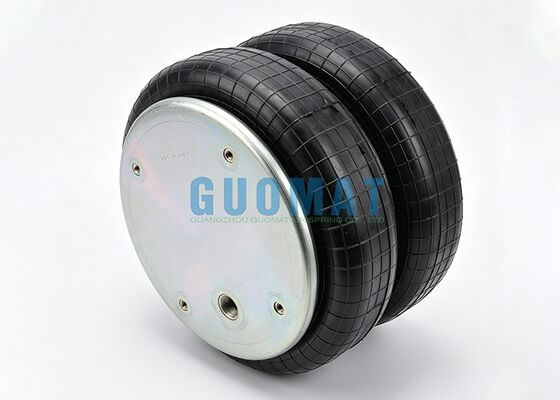

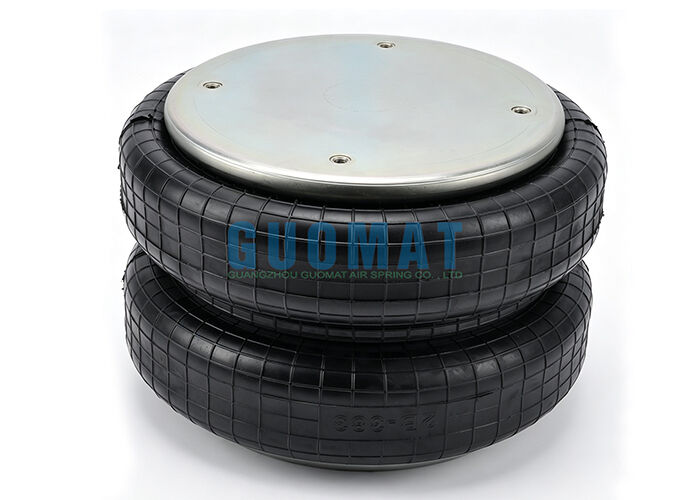

WBZ600-E1 WEFORMA Double Convolution Air Bellows G1 Industrial Pneumatic Spring

Product Details:

Place of Origin:	China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B53022-G1

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	US$99.9-119.9/PC
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	3-7 Working Days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Product Name:	Rubber Air Bellows	Screw:	M8
Sample:	Available	Package Size:	333322CM
Screw Center Distance:	158.8 Mm	Minimum Height:	77 MM
Number Of Convolutions:	2	Air Fitting:	G1
Highlight:	WEFORMA double convolution air bellows , industrial pneumatic spring G1 , WBZ600-E1 air spring with warranty

WBZ600-E1 WEFORMA Double Convolution Air Bellows G1 Industrial Pneumatic Spring

Product Specifications

Brand	GUOMAT
GUOMAT Part Number	2B53022-G1
Type	Double Convoluted Air Spring
Air Connection	G1/4
Application	Industrial Vibration Isolation
Working Medium	Compressed Air
Rubber Material	High Strength Rubber
Working Temperature	Approx. -40°C to +70°C
Installation	Vertical Mounting Recommended

Compatible Part Numbers

WBZ600
WBZ 600
WBZ600-E1
WBZ 600-E1
WBZ600-E1 G1
WBZ 600-E1 G1

Technical Data

Cover plate diameter: 287mm
Threaded hole: M8
Number of threaded holes: 4 (each side)
Air hole: G1
Center distance between threaded holes: 158.8mm
Maximum outer diameter: 385mm
Maximum height: 310mm
Minimum height: 77mm

Pressure vs Height Performance Data

Height H(mm)	3 bar	4 bar	5 bar	6 bar	7 bar	8 bar	Vol.(l)
240	16.3	22.1	27.6	33.5	39.1	44.6	17.8
220	18.2	24.4	30.5	37.0	43.2	49.1	16.5
200	19.6	26.4	33.1	39.8	46.5	52.9	15.0
180	21.0	28.2	35.3	42.6	49.7	56.8	13.6
160	22.3	29.8	37.2	44.9	52.4	59.5	12.0
140	23.1	31.0	38.7	46.5	54.3	61.9	10.5
120	23.9	31.7	39.6	47.7	55.7	63.5	8.8
100	24.4	32.3	40.4	48.7	56.8	64.7	7.2

Packaging & Delivery

Packing Details

1 piece packed in a poly bag
1 piece packed in a strong export carton
Product model and quantity marked outside carton
Customized logo and packaging available

Shipping Options

Express delivery
Air freight
Sea freight

GUOMAT supports OEM replacement orders and bulk supply for distributors, maintenance companies, and industrial equipment manufacturers.

Warranty & After-Sales Support

Warranty: 12 Months / 1 Year
Professional technical support before and after purchase
Dimension confirmation service available
OEM and customized production accepted

GUOMAT is a professional supplier of industrial air springs, rubber air bellows, and air suspension components, providing replacement solutions for global industrial vibration isolation applications.
