Rubber Air Bellows S-200-4/S-200-4R Convoluted Type Punch Press Equipment Airbag

Product Details:

Place of Origin:	China
Brand Name:	F-200-4
Certification:	ISO/TS16949:2009
Model Number:	F-120-2

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	US$259.9-399.9/PC
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	3-7 Working Days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Product Name:	Rubber Air Spring	Convolutions:	4
Usage:	Industrial	Working Temperature:	-40℃+70℃
Convolution:	Four Convoluted	Function:	Reduce Vibration
Color:	Black	MOQ:	1pc
Highlight:	Rubber Air Bellows punch press equipment , Convoluted Type Air Spring , S-200-4 Airbag with warranty

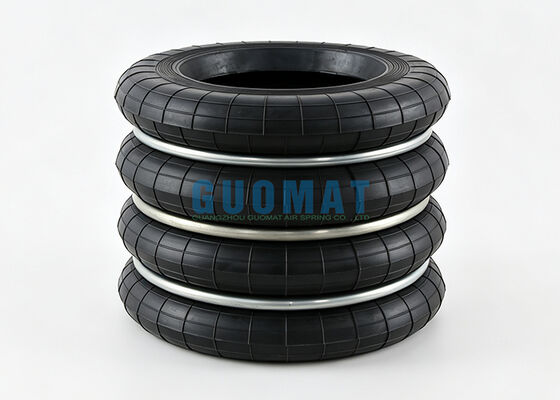

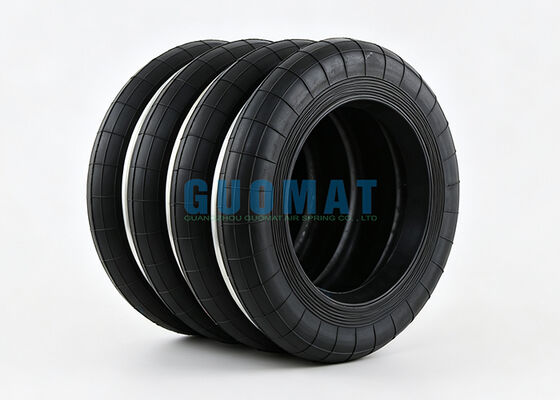

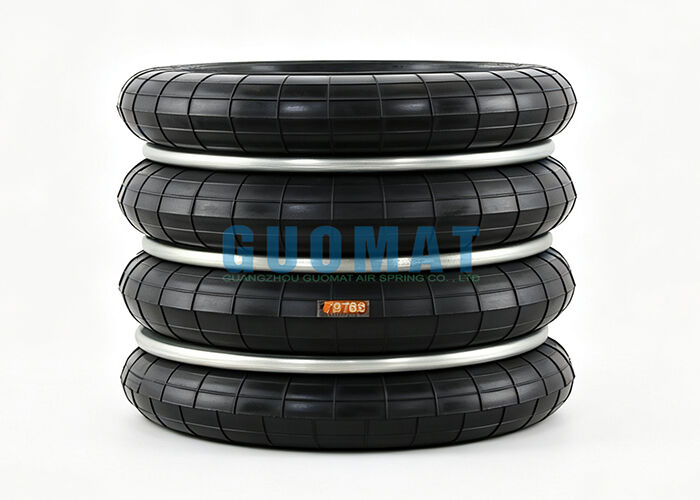

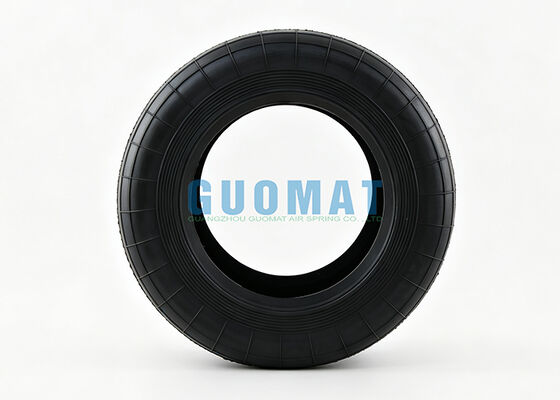

Rubber Air Bellows S-200-4/S-200-4R Convoluted Type Punch Press Equipment Airbag

GUOMAT F-200-4 Rubber Air Bellows is a four convoluted type punch press air spring designed for industrial vibration isolation, shock absorption, and precision equipment suspension applications. This replacement airbag for YOKOHAMA S-200-4 / S-200-4R air springs is widely used in punch press machines, hydraulic presses, stamping equipment, and other industrial machinery requiring stable load support and vibration control.

Product Specifications

GUOMAT NO.: F-200-4

Replacement Model: YOKOHAMA S-200-4 / S-200-4R

Product Type: Convoluted Rubber Air Spring / Industrial Air Bellows

Application: Punch Press Equipment, Hydraulic Press, Stamping Machine, Vibration Isolation System

This industrial air spring features a high-quality rubber bellows structure with reinforced rubber layers and metal rings. Compared with traditional mechanical springs, the pneumatic design provides excellent flexibility, low vibration transmission, and long service life. The convoluted structure allows a large stroke while maintaining a compact installation height, making it suitable for limited installation spaces in industrial equipment.

Key Features

Excellent Vibration Isolation Performance: Uses compressed air as the elastic medium to effectively reduce vibration, impact, and noise generated during punch press operation, protecting machine components and improving production accuracy.
High-Strength Rubber Construction: Manufactured from durable rubber compounds with reinforced fabric layers, providing excellent resistance against fatigue, pressure changes, and repeated compression cycles.
Large Stroke with Compact Height: Four-convolution design provides greater flexibility and displacement compared with conventional spring systems, allowing stable operation under different working conditions.
Low Maintenance Design: No sliding friction parts, reducing wear and maintenance requirements during long-term operation.
Adjustable Load Capacity: Spring stiffness and supporting capacity can be optimized by adjusting internal air pressure according to different machine loads and operating requirements.

GUOMAT F Type Air Spring Technical Specifications
