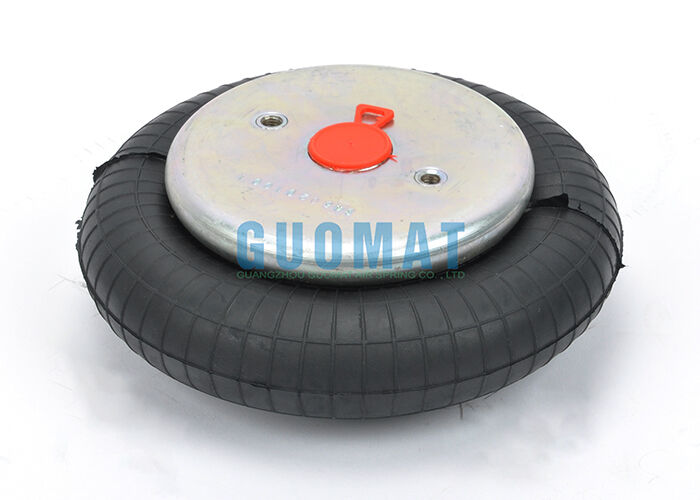

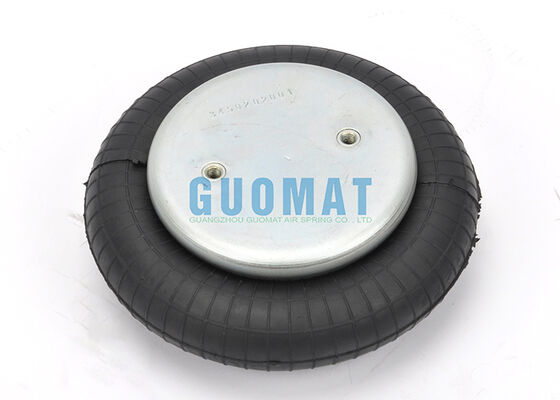

FS120-9 Contitech Industrial Air Spring 1B-190 Airkraft Pneumatic Vibration Isolator

Product Details:

Place of Origin:	China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B1209

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	US$59.9-69.9/PC
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	3-7 Working Days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Product Name:	Rubber Air Spring	Spring Material:	Rubber And Steel
Package Size:	242424 CM	Structure:	Single Convoluted
Warranty:	1 Year	Color:	Black
Contitech:	FS 120-9	Stroke:	60mm-150mm
Highlight:	Contitech industrial air spring , FS120-9 pneumatic vibration isolator , 1B-190 Airkraft air spring

FS120-9 Contitech Industrial Air Spring 1B-190 Airkraft Pneumatic Vibration Isolator

Product Overview

Type	Industrial Air Spring
Brand	GUOMAT
Model No.	1B1209
Material	Rubber and Steel
Warranty	12 Months
Position	For Machine
Color	Black

Alternative Part Numbers

Airkraft 1B-190
Contitech 60479
Contitech FS120-9
Contitech FS 120-9
Contitech FS 120-9 2681030000
Firestone Flex.No. 116
Firestone W013580133
Firestone W01 358 0133
Firestone W01-358-0133
Dunlop(FR) 8''X1 S08101
Weforma WBE300-E1
B-osch 822419003
Festo EB-215-80
Norgren PM/31081(8''X1)
Firestone W01M586166
Firestone W01 M58 6166
Firestone W01-M58-6166
Dunlop(FR) 8''X1 S08100
Weforma WBE300-E2
B-osch 822419008
Phoenix SP1B07

Technical Specifications

Outer Diameter	190mm
Natural Height	91mm

Configuration Options

Description	Air Fitting	Air Holes and Threaded Holes
Top/bottom plate M8(Blind nuts), assembly axis 70mm	G3/4	Center
Top/bottom plate M8(Blind nuts), assembly axis 70mm	G1/4	Center
Top/bottom plate M8(Blind nuts), assembly axis 54mm	G1/4	26mm
Top/bottom plate M10(Blind nuts), axis 44mm	G1/4	Center
