FS200-10 Contitech Shock Absorbing Air Spring 1B-220 Airkraft Rubber Bellows

Product Details:

Place of Origin:	China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B20010

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	US$59.9-69.9/PC
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	3-7 Working Days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Product Name:	Rubber Air Spring	Design High:	111 Mm
Packing:	Brown Carton	Bellow Type:	Single
Item Name:	Industrial Air Spring	Size:	Standard
Medium:	Compressed Air	Contitech:	FS200-10
Highlight:	Contitech shock absorbing air spring , 1B-220 Airkraft rubber bellows , industrial air spring with warranty

FS200-10 Contitech Shock Absorbing Air Spring 1B-220 Airkraft Rubber Bellows

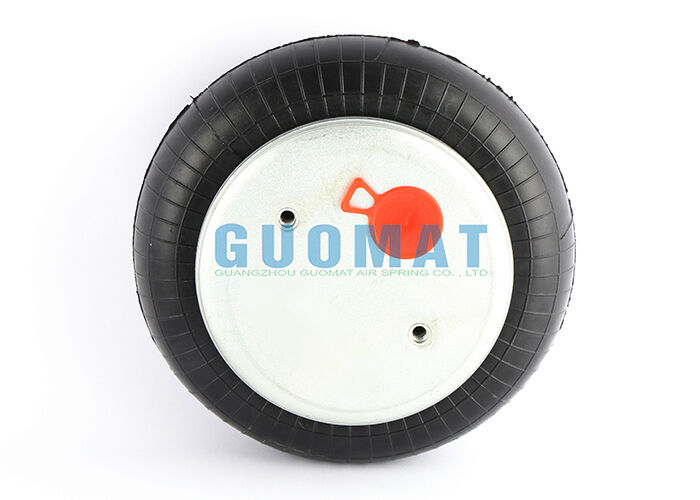

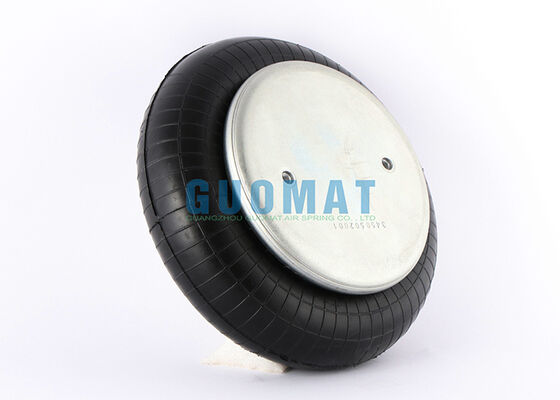

GUOMAT 1B20010 is a single convoluted industrial air spring designed as a direct replacement for Contitech FS200-10 and Airkraft 1B-220 rubber bellows. This versatile component is widely used for industrial shock absorption, vibration isolation, lifting, positioning, and pneumatic suspension applications.

The reinforced rubber bellows construction with integrated steel components ensures reliable flexibility, superior load support, and effective vibration isolation. The single-convolution design enables the air spring to function as both a pneumatic actuator and vibration isolator.

Operation is based on compressed air to generate supporting force. By adjusting internal air pressure, users can precisely control spring force and working height to meet specific requirements of various industrial machinery.

Compatible Part Numbers

Manufacturer	Part Number
CONTITECH	FS200-10
CONTITECH	60319
FIRESTONE	115
FIRESTONE	W01-358-0118
FIRESTONE	W01-M58-6374
DUNLOP(FR)	9'' 1/4X1 S09101
WEFORMA	WBE400-E1
B-OSCH	822419004
FESTO	EB-250-85
NORGREN	PM/31091(9''1/4X1)
FIRESTONE	W01-M58-6375
B-OSCH	822419009
WEFORMA	WBZ400-E2/410-E1

Technical Specifications

Dimensions:
Outer diameter: 215 mm
Height: 111 mm
Center-to-center distance of threaded holes: 89 mm

Description	Air Hole	Distance Between Gas Vent and Threaded Hole
Top/bottom plate M8 (Blind nuts)	G3/4	38.1mm
Top/bottom plate M8 (Blind nuts)	G1/4	44.4mm

Packaging & Delivery

Individual protective packaging for each air spring
Export carton packaging suitable for international shipping
Product number clearly marked on carton
Custom logo and OEM marking available
Compatible with sea, air, and express shipment methods

Warranty & Support

GUOMAT provides a comprehensive 12-month warranty for the 1B20010 air spring under normal operating conditions. Before ordering, customers can provide original part numbers, air spring photos, dimensions, mounting-hole specifications, or application information for accurate replacement model confirmation.
