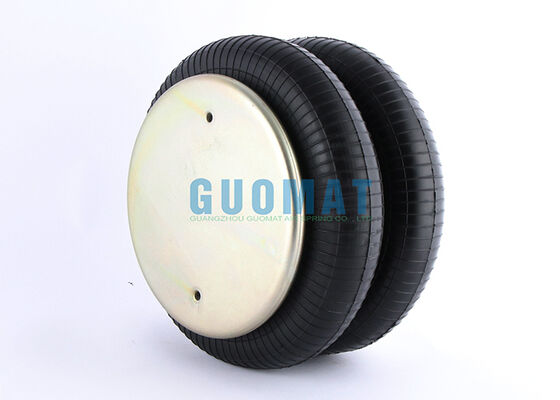

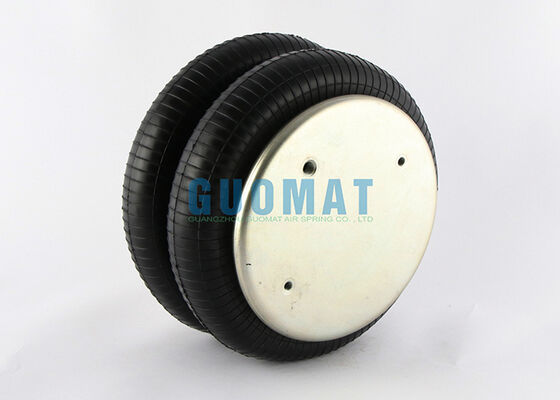

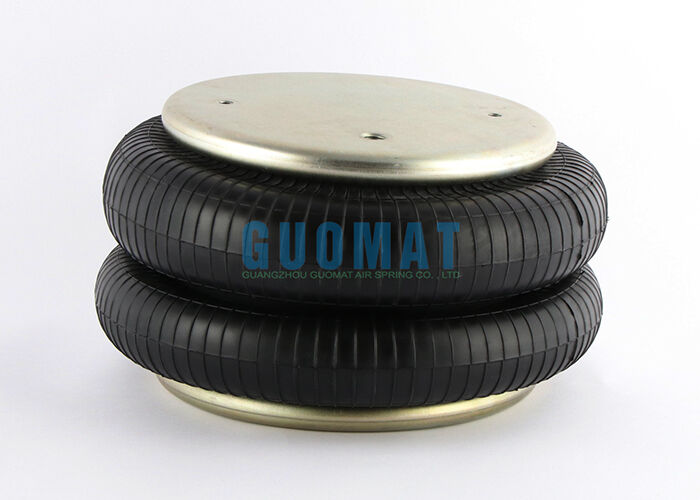

W01-358-7659 Firestone Convoluted Air Spring 2B-026 Airkraft Industrial Shock Isolation System

Product Details:

Place of Origin:	China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B7659

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	US$59.9-69.9/PC
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	3-7 Working Days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Product Name:	Rubber Air Spring	Firestone:	W01-M58-6165
Shock Absorber Type:	Gas-Filled	Temperature Range:	-40℃+70℃
Flexibility:	Good	Air Hole:	1/4-18 NPT
Position:	Front Or Rear	Air Spring Type:	Double Convoluted Type
Highlight:	Firestone convoluted air spring , Rubber air spring shock isolation , Industrial air spring with warranty

W01-358-7659 Firestone Convoluted Air Spring 2B-026 Airkraft Industrial Shock Isolation System

This Firestone-style convoluted air spring provides reliable industrial shock isolation for machining centers and other heavy equipment requiring vibration control and stability.

Product Specifications

Type	Convoluted Type Air Spring
Brand	GUOMAT
Model No.	2B7659
Material	Rubber and Steel
Warranty	12 Months
Convolutions	2
Application	Air Spring for Machining Center

Technical Data

Natural Height	156mm
Natural Outer Diameter	184mm
Center Distance Between Threaded Holes	70mm
Top/Bottom Plate	3/8-16 UNC (blind nuts)/1/4-18 NPT

Compatible Part Numbers

Airkraft 2B-026

Firestone Style 26

Firestone W01-358-7659

Firestone W01 358 7659

Firestone W013587659

Goodyear 2B7-548

Goodyear 2B 7-548

Goodyear 579923526

Goodyear 579 92 3 526

Goodyear 579-92-3-526

Hendrickson 005079

Automann ABSP2B07

Automann RA-7659

Contitech FD110-17A775

Contitech FD 110-17A775

Contitech FD 110-17A 775

Contitech 67667

FleetPride AS7659

Triangle AS-4775

TRP AS76590

Why Choose GUOMAT Air Springs?

Reliable Rubber Construction: Reinforced rubber bellows withstand repeated compression and expansion during normal industrial operation.
Effective Vibration Isolation: Pneumatic structure absorbs mechanical vibration and shock for machinery requiring stable operation.
Adjustable Working Characteristics: Load and stiffness can be adjusted by changing internal air pressure, unlike conventional metal springs.
Easy Replacement: Follows commonly used dimensions and mounting configurations for convenient replacement projects.
OEM & Custom Supply: Available according to part number, dimensions, mounting holes, air inlet position and application requirements.
