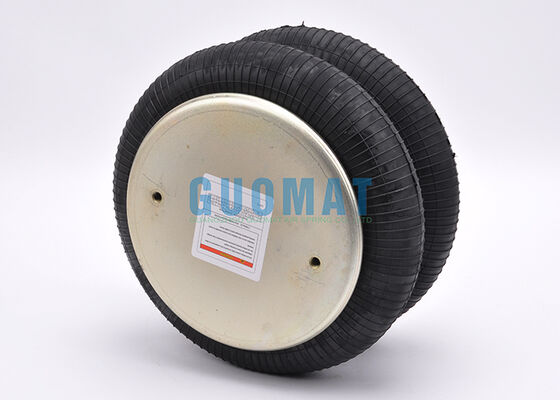

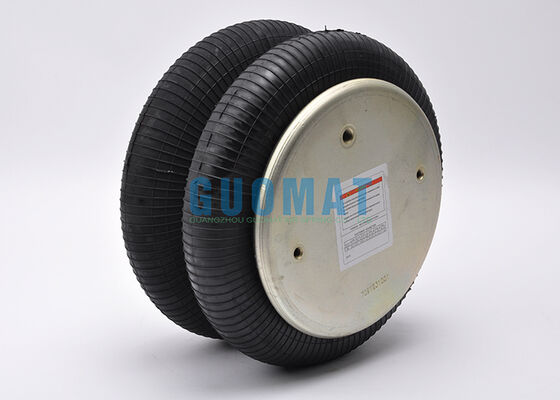

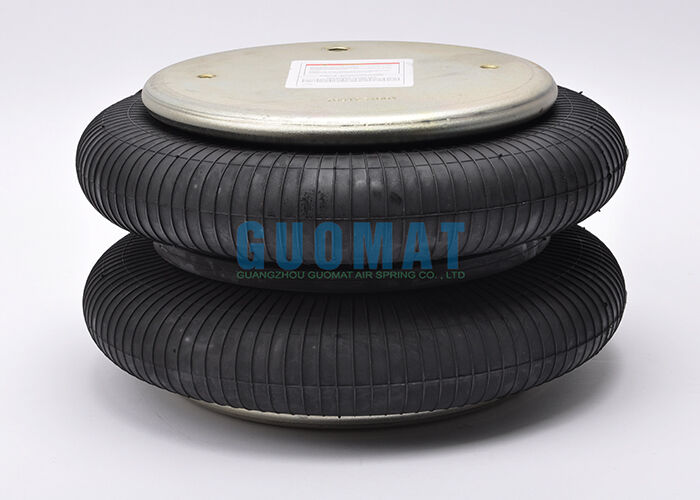

89mm Distance Double Convoluted Industrial Air Spring 2B-220 Airkraft Air Suspension Isolator

Product Details:

Place of Origin:	China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B6910

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	US$59.9-69.9/PC
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	3-7 Working Days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Product Name:	Rubber Air Spring	Package Size:	242424 CM
Type:	Convoluted Air Spring	Gas Hole:	G3/4
Temperature Range:	- 40°C / +70°C	Cover Plate:	Steel Plate
Service:	OEM	Convolutions:	2
Highlight:	89mm distance industrial air spring , double convoluted air suspension isolator , 2B-220 Airkraft air spring with warranty

89mm Distance Double Convoluted Industrial Air Spring 2B-220

Product Overview

The 2B-220 Airkraft Air Suspension Isolator is a high-performance double convoluted industrial air spring designed for superior vibration isolation and shock absorption in demanding industrial applications.

Product Specifications

Item	Specification
Brand	GUOMAT
Model Number	2B6910
Type	Double Convoluted Industrial Air Spring
Application	Industrial Vibration Isolation / Air Suspension System
Rubber Type	Reinforced Rubber Bellows
Structure	Rubber Bellows + Steel Components
Working Medium	Compressed Air
Function	Vibration Isolation, Shock Absorption, Height Control

Replacement Part Numbers

AIRKTAFT 2B-220
FIRESTONE 20
FIRESTONE W01-095-0009
FIRESTONE W01-358-0297
PHOENIX 2B 12R
PIRELLI T20 83300
CONTITECH FD200-19 S/895N/72021
GOODYEAR 578 9 2 3211
CF GOMMA 20/86599
FIRESTONE W01-M58-6887
FIRESTONE W01-M58-6910
FIRESTONE W01-M58-7887
PHOENIX SP 2B 12R
PIRELLI T20
CF GOMMA 206797
CONTITECH FD 200-19 1/4 M10 72047
GOODYEAR SPRINGRIDE 2B 9-223
DUNLOP(FR) SO 9201 NB
DUNLOP(UK) 01128A-AP
GART T291/2(291.2.200)
CONTITECH FD 200-19 72046
WEFORMA WBZ 400 E1
FIRESTONE W01-M58-6185
B-OSCH 822419043
FESTO EB-250-185
NORGREN PM/31092 (9''1/4X2)
PHOENIX SP 2B 12 R-1
FIRESTONE W01-M58-7679
FIRESTONE W01-M58-6187
CONTITECH FD 200-19 72045
GOODYEAR 556228649
WEFORMA WBZ 400-E3
B-OSCH 822419063
DUNLOP(FR) 9''1/4 S09201

Technical Data

Description	Air Hole	Center Distance A
Rubber bellow only	-	-
Top/bottom plate M10 (Blind nuts)	G1/4	44.4mm
Top/bottom plate M8 (Blind nuts)	G3/4	38.1mm
Top/bottom plate M10 (Blind nuts)	G3/4	38.1mm
Top/bottom plate M10 (Blind nuts), Bumper (90mm)	G1/4	44.4mm
Top/bottom plate M10 (Bolts)	G1/4	44.4mm
Top/bottom plate M8 (Blind nuts)	G1/4	44.4mm
