2B-301 Airkraft Double Bellows Air Spring W01-358-7180 Firestone Rubber Air Bag Manufacturer

Product Details:

Place of Origin:	China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B6330

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	US$109.9-159.9/PC
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	3-7 Working Days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Product Name:	Rubber Air Spring	Convolutions:	2
Sample:	Avialable	Packing Size:	242424(cm)
Two Blind Nuts:	2X3/8-16UNC	Hs Code:	8708809000
Shock Absorber Type:	Gas-Filled	Firestone:	W01-358-7180
Highlight:	Firestone rubber air spring , double bellows air bag , industrial air spring manufacturer

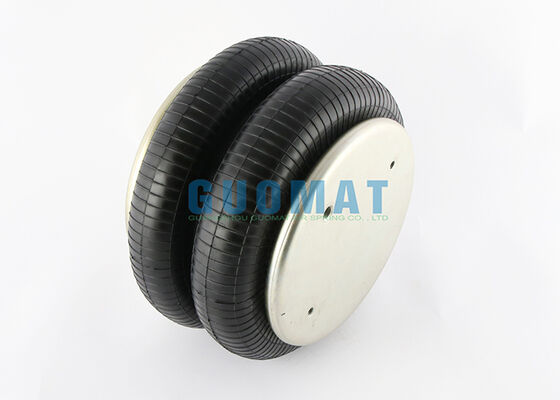

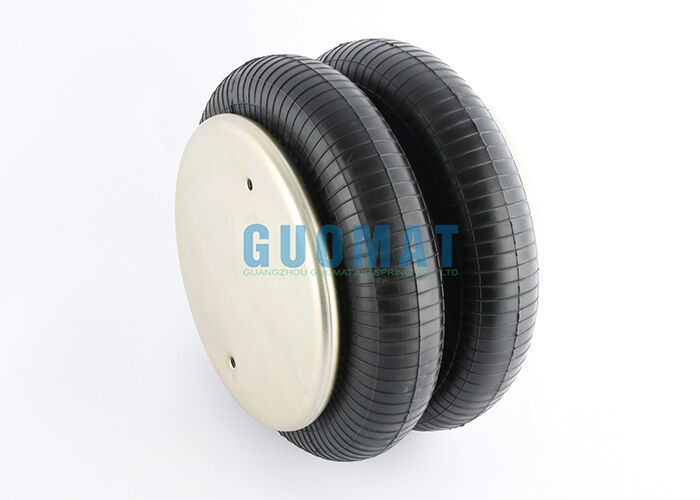

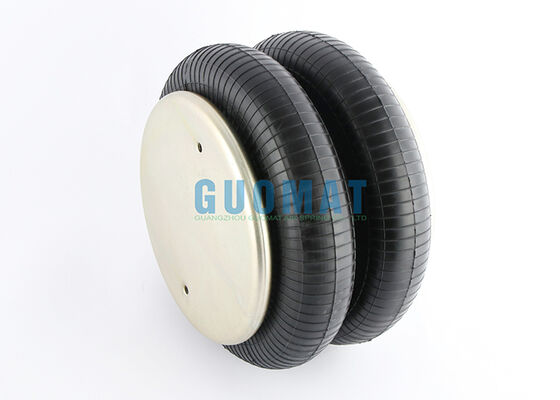

2B-301 Airkraft Double Bellows Air Spring W01-358-7180

High-quality double bellows air spring designed for industrial applications including vibration isolation, shock absorption, and suspension systems.

Product Specifications

Item	Details
Product Type	Double Convoluted Air Spring
Brand	GUOMAT
Model	2B6330
Structure	Double Bellows
Material	Reinforced Rubber + Steel Components
Application	Industrial Equipment / Vibration Isolation / Suspension
Function	Shock Absorption, Vibration Isolation, Lifting & Height Adjustment
Replacement Type	Air Spring Replacement

Cross-Reference Part Numbers

AIRKRAFT 2B-301, FIRESTONE W01-M58-6381, CONTITECH FD 330-22, PHOENIX 2B 22R, DUNLOP(FR) S 12202 12X2, FIRSTONE W01-M58-6200, NORGREN PM/31122 (12X2), FIRSTONE W01-358-7400, CONTITECH FD 330-22 313, GOODYEAR 2B12-309, GOODYEAR FLEX 578-92-3-309, TAURUS KF222-7400, HENDRICKSON S-1013, FIRSTONE W01-358-7180, CONTITECH FD 330-22 363, GOODYEAR 2B12 425, GOODYEAR FLEX 578-92-3-309, FIRSTONE W01-358-7181, GOODYEAR 2B12-429, CONTITECH FD330-22 780, FIRSTONE W01-358-7185, GOODYEAR 2B12-318, GOODYEAR 578 9 2 3309, FIRESTONE 22T3, GOODYEAR 556 2 2 8416

Technical Specifications

Parameter	Value
Outer Diameter	300mm
Height	181mm
Threaded Hole Center Distance	157mm

Mounting & Connection Details

Description	Air Hole	Center Distance Between Threaded Holes and Air Holes
Top/bottom plate M8 (Blind nuts)	RP 1/4	73mm
Top/bottom plate M8 (Blind nuts)	G3/4	73mm
Top/bottom plate 3/8"-16 (Blind nuts) Bumper-97mm	1/4NPT	73mm
Top/bottom plate 3/8"-16 (Blind nuts)	1/4NPT	73mm
Top/bottom plate 3/8"-16 (Blind nuts)	3/4NPT	73mm
Top/bottom plate 3/8"-16 (Blind nuts) Bumper-97mm	3/4NPT	73mm
Top/bottom plate M12 (Bolts)	M22X1.5	73mm

Key Features

Double bellows construction for flexible movement and stable support
High-quality rubber compound provides excellent flexibility and fatigue resistance
Reinforced steel components maintain structural stability under working loads
Ideal for industrial vibration isolation and shock absorption applications
Suitable for lifting, lowering, leveling, and suspension operations
Available for OEM, replacement, and industrial equipment applications
