2B-352 Airkraft Pneumatic Vibration Isolator FD 530-30 Contitech Industrial Air Spring Supplier

2B-352 Airkraft Pneumatic Vibration Isolator FD 530-30 Contitech Industrial Air Spring Supplier

  • 2B-352 Airkraft Pneumatic Vibration Isolator FD 530-30 Contitech Industrial Air Spring Supplier
  • 2B-352 Airkraft Pneumatic Vibration Isolator FD 530-30 Contitech Industrial Air Spring Supplier
  • 2B-352 Airkraft Pneumatic Vibration Isolator FD 530-30 Contitech Industrial Air Spring Supplier
2B-352 Airkraft Pneumatic Vibration Isolator FD 530-30 Contitech Industrial Air Spring Supplier
Product Details:
Place of Origin: China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 2B53030
Payment & Shipping Terms:
Minimum Order Quantity: 6pcs
Price: US$109.9-159.9/PC
Packaging Details: Strong Carton Box Or As Customers Need
Delivery Time: 3-7 Working Days
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Product Name: Rubber Air Spring Style: Convoluted Type Air Spring
Spring Material: Rubber And Steel Warranty Period: 12 Months
Other Name: Rubber Air Bellows Trademark: GUOMAT
Other Names: Air Spring Vibration Warranty: 1 Year
Highlight:

Contitech industrial air spring

,

Airkraft pneumatic vibration isolator

,

FD 530-30 air spring

2B-352 Airkraft Pneumatic Vibration Isolator FD 530-30 Contitech Industrial Air Spring
The GUOMAT 2B53030 is a double convoluted industrial air spring engineered for pneumatic vibration isolation, shock absorption, lifting, and height adjustment applications. With its flexible rubber bellows construction and double-convoluted design, this industrial air spring provides effective vibration isolation while maintaining stable load support.
Product Specifications
Model GUOMAT 2B53030
Type Double Convoluted Air Spring
Application Industrial Vibration Isolation
Material Rubber + Steel Components
Function Vibration Isolation / Shock Absorption / Lifting
Technical Dimensions
Diameter 350mm
Height 256mm
Center Distance Between Threaded Holes 158mm
Connection Specifications
Description Air Hole
Top / Bottom Plate 3/8"-16 UNC (Blind nuts) Bumper-78 mm 3/4 NPT -14
Top / Bottom Plate 3/8"-16 UNC (Blind nuts) Bumper-91 mm 1/4 NPT-18
Top / Bottom Plate 3/8"-16 UNC (Blind nuts) 1/4 NPT-18
Top / Bottom Plate 1/2"-13 UNC (Bolts) Bumper-91 mm 1/4 NPT
Cross-Reference Part Numbers
AIRKRAFT: 2B-352
FIRESTONE: W01-358-6805
CONTITECH: FD 530-30 532/707
GOODYEAR: 2B14-462
FIRESTONE: W01-358-6801
CONTITECH: FD 530-30 451 /161373
GOODYEAR: 2B14-365/578 9 2 3356
GOODYEAR: 2B14-361
GOODYEAR: 2B14-452
FIRESTONE: W01-358-6800
CONTITECH: FD 530-30 518/161374
GOODYEAR: 2B14-363
FIRESTONE: W01-358-6808
CONTITECH: FD 530-30 519/161375
Applications
  • Industrial machinery
  • Automated production equipment
  • Press and forming machines
  • Vibration isolation platforms
  • Conveyor and material handling equipment
  • Pneumatic lifting systems
  • Machinery suspension systems
  • Shock and vibration isolation equipment
Product Images

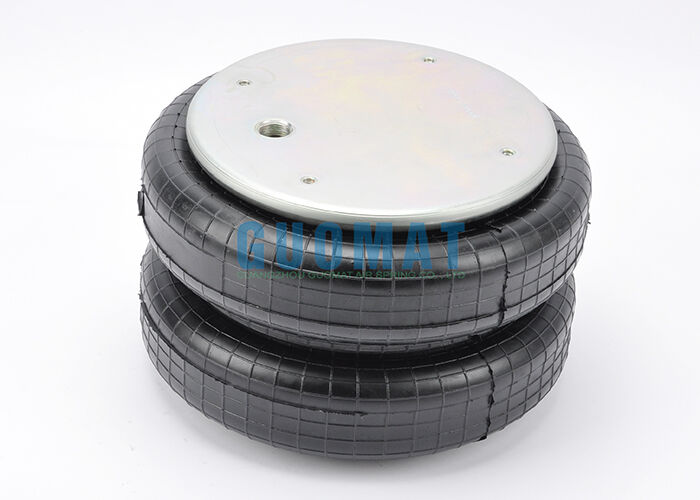

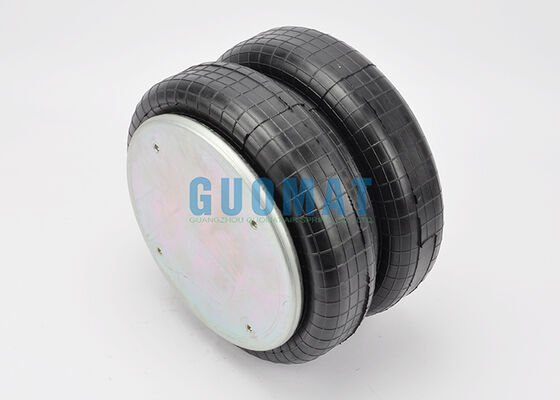

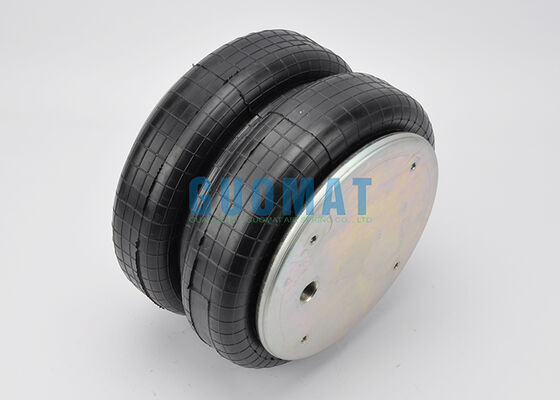

GUOMAT 2B53030 Industrial Air Spring - Front View GUOMAT 2B53030 Industrial Air Spring - Side View
